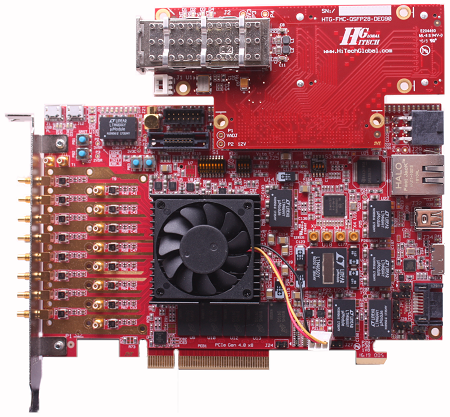

HTG-ZRF8: Xilinx
Zynq® UltraScale+™ RFSoC Development Platform

Populated with one Xilinx ZYNQ  UltraScale+  RFSoC  ZU28DR or ZU48DR, the HTG-ZRF8 provides access to large  FPGA gate densities, eight ADC/DAC ports, expandable I/Os port  and DDR4 memory for variety of different programmable applications.

The HTG-ZRF8  is supported by eight 12-bit ADC 4.096 GSPS (ZU28DR) or 14-bit ADC 5 GSPS (ZU48DR) and eight 14-bit DAC 6.4 GSPS (ZU28DR) or  10 GSPS (ZU48DR) ports. The ADC and DAC ports are supported through high-performance front panel  micro Rf connectors.

The HTG-ZRF8  architecture allows easy and versatile functional expansion through one Vita 57.4 compliant High-Pin-Count FPGA Mezzanine Card (FMC+)  port. The HTG-ZRF8 can host wide range of Vita57.1 /Vita57.4 compliant daughter cards.

The HTG-ZRF8  is supported by one 72-bit ECC DDR4 SODIMM socket providing access to up to 16 GB of SDRAM memory. The processor’s side is supported by up to 4GB of DDR4 memory.

The HTG-ZRF8  can be used in PCI Express and Standalone mode and powered through its 6-pin Molex PCIe connector.

The HTG-ZRF8-R2 model is supported by commercially available Multi-Tile Synchronization (MTS) reference design.

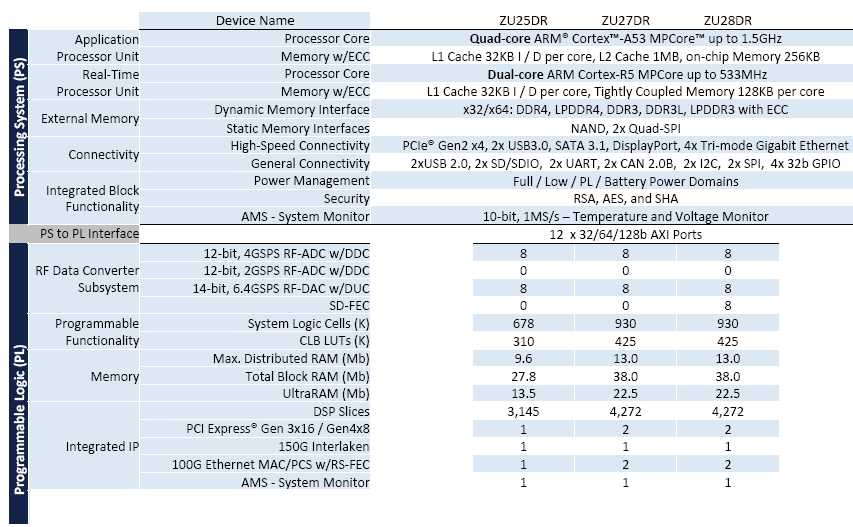

Supported Devices (red boxes)

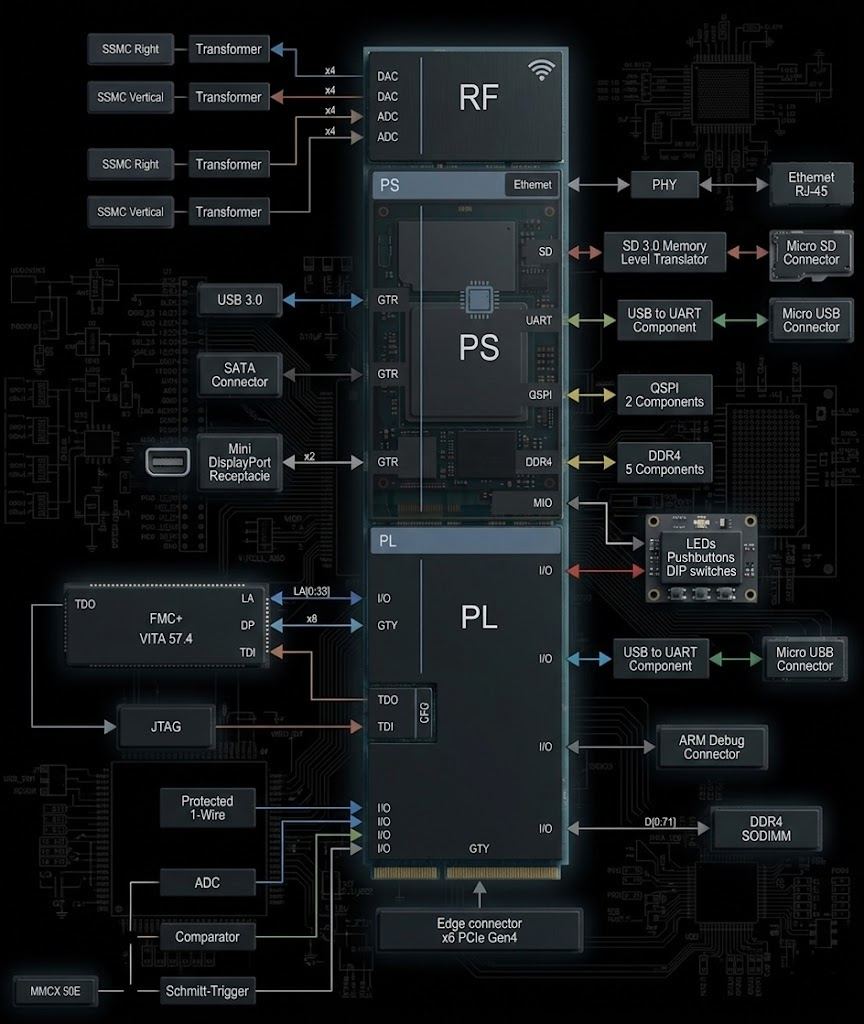

Main Features:

Xilinx Zynq UltraScale+ RFSoCZU28DR or ZU48DR
x8 ADC (12-bit or 14-bit) ports
x8 DAC (14-bit) ports
►x8 PCI Express Gen3 /Gen4
x1 Vita57.4 FPGA Mezzanine Connector (FMC+)  with 68 single-ended I/Os  and 8 GTY (32.75Gbps) Serial Transceivers
Independent DDR4 memory for the FPGA (up to 32GB SODIMM) and the ARM Processors ( 4GB component)
Configuration Flash
►x1 10/100/1000 Ethernet (RJ45) port (Processor)
x1 MicroSD (Processor side)
x1 SATA port (Processor side)
x1 Display Port (Processor side)
x1 USB 3.0 port (Processor side)
x2 USB/UART ports (FPGA and Processor sides)
Programmable Clocks (with default frequencies but programmable through I2C bus)
ARM Debug Header
FPGA JTAG Header
External Synchronous Clock port
6.6" x 4.25"
Supports both PCI Express and Standalone operations
   - 12V/8A Power adapter for standalone operation

Kit Content:

Hardware:
-
HTG-ZRF8 Xilinx Zynq UltraScale+ RFSoC platform

Reference Designs/Demos:
- x8 PCI Express
- DDR4 Memory Controller
-
Petalinux (unsupported sample design)

Documents:

- User Manual
- Schematics (partial in searchable .pdf format)

Ordering & Availability Information

HTG-ZRF8-28
HTG-ZRF8-R2-28 (supporting Multi-Tile Synchronization)-

HTG-ZRF8-48
HTG-ZRF8-48-I (industrial grade)

HTG-ZRF8-R2-48 (supporting Multi-Tile Synchronization)
HTG-ZRF8-R2-48 -I (Industrial grade)

Price: please contact us

12" SSMC To SMA Cable
24" SSMC To SMA Cable

1 Meter SSMC To SMA Cable
