HTG-Z999: Xilinx Zynq® UltraScale+™ FMC Platform

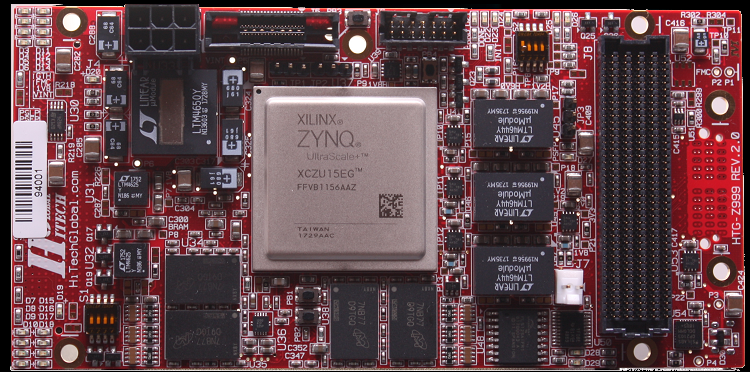

Front View with FMC female connector (hosting daughter cards)

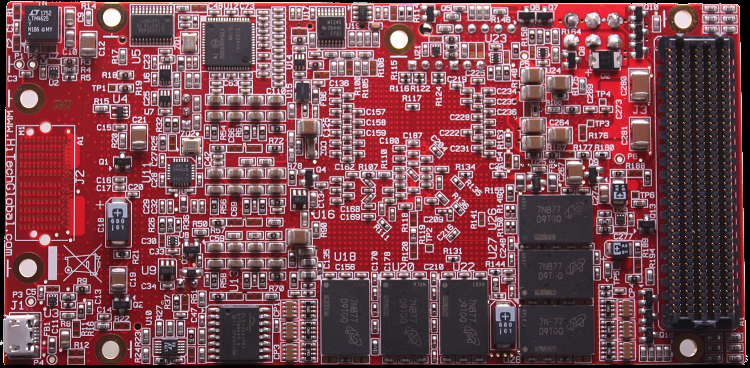

Back View with FMC male connector (interfacing with other FPGA carrier boards) and Z-Ray port

Supported by Xilinx Zynq UltraScale+ ZU6EG, 9EG, or 15EG FPGA, multiple expansion ports and its unique architecture, the HTG-Z999 can be used as daughter card adding processing capability and/or FPGA gate density to Vita57.1 or 57.4 compliant FPGA carrier boards or as standalone host module.

Modular architecture of the HTG-Z999 ZYNQ UltraScale+ platform provides great level of versatility through two (one male and one female) industry standard Vita57.1 FPGA Mezzanine Connectors (FMC) and one  HTG High-Speed Bus using Samtec Z-Ray interposer. The male FMC connector (installed on the back side) mates with Vita57.1 or 57.4 FPGA carrier boards through singled ended and/or  GTH serial I/Os to provide processing power and additional FPGA density to designs. The female FMC connector (installed on the front side) provides access to the ARM processor's singled ended and GTR serial I/Os. The HTG High-speed ZRAY Bus provides access to 12 GTH Serial Transceivers of the FPGA (PL), single-ended I/O pins (for control functions) and adjustable power supplies for interfacing with daughter cards  such as Hybrid Memory Cube (HMC), QSFP+, SFP+, FireFly, and CXP.




Main Features:

Xilinx Zynq UltraScale+ ZU6EG, 9EG, or 15EG FPGA in B1156 package
x2 Vita57.1 FPGA Mezzanine Connectors (FMC)
    - Male connector mating with FPGA carrier boards (daughter card mode) providing access to 116 single-ended FPGA I/Os (58 LVDS) and 10 GTH serial transceivers.
    - Female connector  mating  with FMC daughter cards (carrier card mode) providing access to 52 single-ended processor I/Os and 4 GTR serial transceivers.
High-Speed / High-Performance Z-RAY interface with 12 GTH Serial Transceivers, control I/Os, and 12.V and 3.3V  power pins
   - Available Modules:
      Hybrid Memory Cube (HMC), SFP+, QSFP+, CXP, and Samtec FireFly
DDR4 Components (with ECC support)
      - 4 GB for the processor side
      - 4 GB for the programmable logic
Configuration Flash
ARM Debug port
USB/UART
Programmable Clocks (with default frequencies but programmable through I2C bus)
XADC Headers
JTAG Header
Size: 5.5" x 2.7" (140mm x 69mm)


Kit Content:

Hardware:
-
HTG-Z999 board

Reference Designs/Demos:

- DDR4 Memory Controller

Documents:

- User Manual
- Schematics (in searchable .pdf format)

Ordering Information

HTG-Z999-06  - Price: [please contact us]
HTG-Z999-15  - Price: [please contact us
