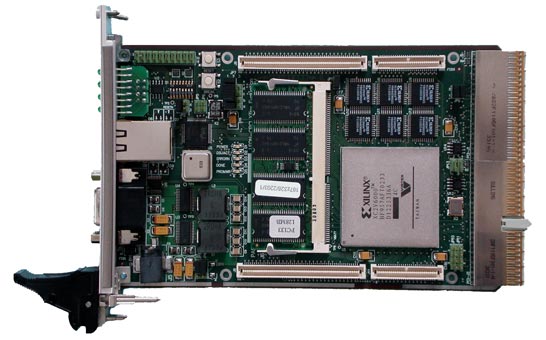

GR-CPCI-XC2V Compact PCI Virtex II Development Board

The GR-CPCI-XC2V board is a Compact PCI format development board which has been developed especially to support the early development and fast prototyping of LEON systems. Although suitable for general purpose Virtex II designs, the incorporation of on-board volatile and non-volatile memory interfaces, together with serial and Ethernet interfaces makes this board ideal for implementing LEON designs.

The LEON processor is a synthesizable VHDL model of a 32-bit processor compliant to the SPARC V8 architecture. It is provided in full source code under the GNU LGPL license, allowing free and unlimited use in both research and commercial applications.

This board, incorporating a Xilinx Virtex II™ field programmable gate array, is capable of operating either as a stand-alone board, or as a compact PCI plug-in card in either the System slot or Peripheral slots. The GR-CPCI-XC2V can be used as a classic PCI card in PC motherboard slot using GR-CPCI-PCI adapter card.
Additionally, the design of this board can support the implementation of LEON-FT fault-tolerant systems
if the implemented core incorporates these features.

To provide more I/O possibilities, additional I/O expansion boards have been developed. Currently, two types are available:
- 1 Mbyte SRAM module (256K x 32 or 256K x 48)
- Breadboarding/test adapter









Xilinx FPGA
ISE Design Tool









Features:

  • Compact-PCI plug-in form factor

  • Virtex-II XC2V6000-FG957-4 FPGA

  • On-board FPGA configuration proms (6 x XC18V04)
    16 Mbyte FLASH prom (4M x 32)

  • 1 standard SO-DIMM socket for up to 256 Mbyte SDRAM

  • 1 Mbyte static ram (256K x 32) adapter option

  • Ethernet PHY 10/100 Mbit transeiver

  • 33/66 MHz, 32/64-bit CPCI interface (3V)

  • Standard RS-232 UART port for DSU

  • 120-pins memory and custom I/O expansion connectors (AMP-177-984-5)

  • JTAG and slave-serial FPGA programming capability

  • CPCI system controller (clock distribution & PCI arbitration)

  • Supports LEON2 core frequencies up to 60 MHz
    LEON-FT compatible

 Kit Content:
  • GR-CPCI-XC2V Board
  • CD containing:
    User's manual
    Complete schematics
    Necessary .ucf files for Xilinx place&route tools
  • LECCS cross-compiler system
  • DSUMON
  • leon2 VHDL model.

A pre-synthesised leon netlist is programmed in the FPGA configuration prom, using a standard LEON configuration with DSU, PCI and Ethernet. Custom configurations can be shipped on request

- Part Number:  GR-CPCI-XC2V
- Price:  $7,850
- Lead Time: 1 week
