Xilinx Virtex™ 5  FX70T, FX100T 4-Lane PCI Express® Gen. 2 / USB 3.0 Development Board

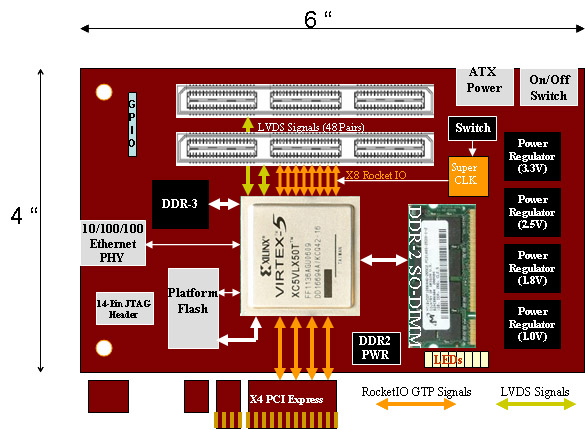

Powered by Xilinx Virtex-5 FX70T, FX100T, LX110T, LX155T, or SX95T, this platform is designed to support x4 end-point PCI Express Gen  1 (with  FX70T, FX100T, LX110T, LX155T, or SX95T) or Gen 2 (with FX70T or FX100T), USB 3.0 (Host & Device), DDR-3 (component), up to 2GB of DDR-2 SO-DIMM (mounted on the back side), data-rate-adjustable RocketIO GTP/GTX transceivers (with super clock),  flexible LVDS connections, and stand-alone operation.

The on-board Super Clock provides different reference clocks across eight RocketIO GTP/GTX (3.125/6.5 Gbps) transceivers on the high-speed connectors. This enables the V5-PCIE2 platform to be used for any serial IO based developments supported by the GTP/GTX transceivers (SERDES).

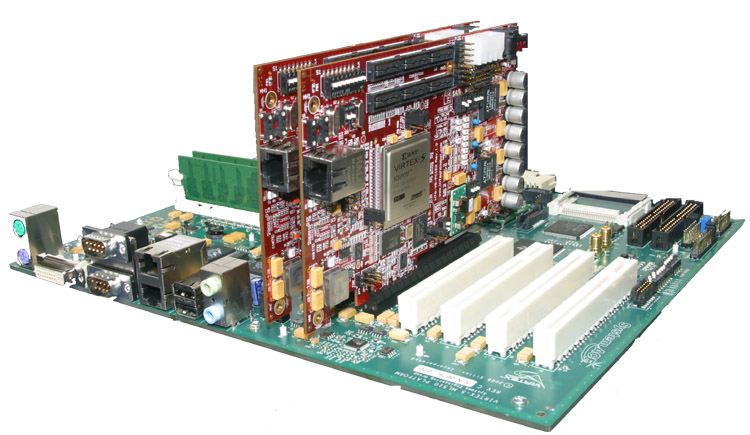

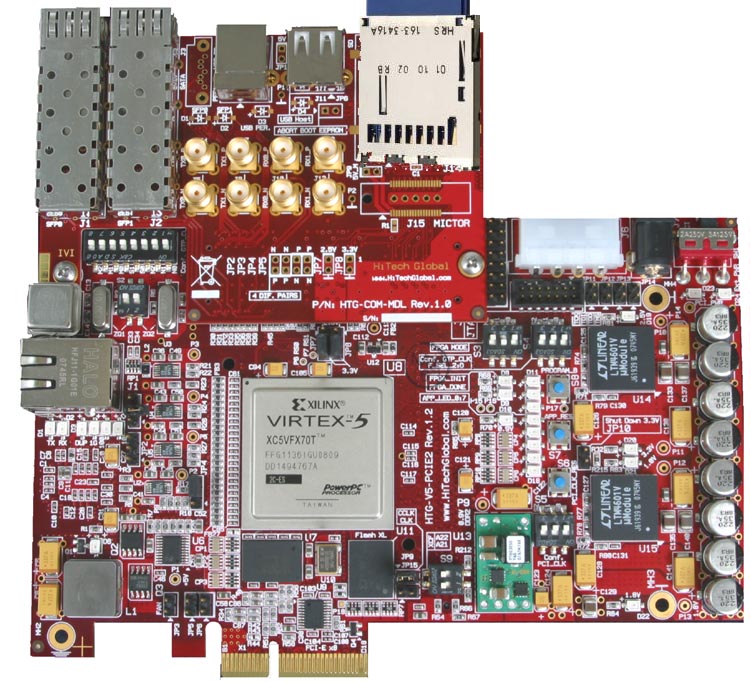

Various add-on modules extend the capability and flexibility of the V5-PCIE2 platforms. The above picture shows addition of x2 SFP, x1 SATA, USB 2.0 3.0 Host & Device, x1 SD, x1 Mictor, and x8 SMA to the main platform. For FPGA gate density and peripheral expansions, multiple V5-PCIE2 boards can be connected to each other via Samtec high-speed ribbon connectors. Multiple V5-PCIE2 platforms can be plugged into motherboards with PCI Express female connectors.

Supported Virtex-5 Devices:
Part Number XC5VLX110T
( Gen 1)		 XC5VLX155T
(Gen 1)		 XC5VSX95T
(Gen 1)		 XC5VFX70T
(Gen 1/2)		 XC5VFX100T
(Gen 1/2)
Slices  17,280 24,320 14,720 11,200 16,000
Logic Cells  110,592 155,648 94,208 71,680 102,400
CLB Flip-Flops 69,120 97,280 58,880 44,800 64,000
Maximum Distributed RAM (Kbits) 1,120 1,640 1,520 820 1,240
Block RAM/FIFO w/ECC (36Kbits each) 148 212 244 148 228
Total Block RAM (Kbits) 5,328 7,632 8,784 5,328 8,208
Digital Clock Managers (DCM) 12 12 12 12 12
Phase Locked Loop (PLL)/PMCD 6 6 6 6 6
Maximum Single-Ended Pins 680 680 640 640 680
Maximum Differential I/O Pairs 340 340 320 320 340
DSP48E Slices 64 128 640 128 256
PowerPC® 440 Processor Blocks — — — 1 2
PCI Express Endpoint Blocks 1 1 1 3 3
10/100/1000 Ethernet MAC Blocks 4 4 4 4 4
RocketIO GTP Low Power Transceiver 16 16 16 — —
RocketIO GTX High Power Transceiver — — — 16 16
Configuration Memory (Mbits) 31.1 43 35.7 27 39.4

The following memory controller IP cores are available for this platform:

DDR-3 Controller IP Core
DDR-2 Controller IP Core














►Features:
On Board
 ▪ Xilinx Virtex-5 XC5VFX70T-2FF1136,  XC5VFX100T-2FF1136, XC5VLX155T-1FF1136, XC5VLX110T-1FF1136,  XC5VLX50T-1FF1136, XC5VSX95T-1FF1136
 ▪ 4-Lane PCI Express End-Point (upstream) Connector (supporting Gen 1 or Gen 2)
 ▪ 8 data-rate-adjustable RocketIO GTP/GTX Serial Transceivers (with on-board super clock)
 ▪ One Tri-Mode Ethernet Connector (10/100/1000)
▪ 64 MB Elpida DDR 3 memory
▪ One DDR2 SO-DIMM (up to 2GB) with one Elpida module (EBE52UD6AJUA-6E-E) - The board is shipped with a 512 MB SO-DIMM
 ▪ 128 Mb Flash Memory (for FPGA configuration and storage)
 ▪ Two  Samtec High-speed Connectors  for Single-Ended (3.3V/2.5V) and LVDS (2.5V)  IOs (total of 50 LVDS pairs + 4 Clock pairs)
 ▪ GTP/GTX Super Clock
 ▪ User Clock
 ▪ Adjustable PCI Express Jitter Attenuator
 ▪ ATX and Standard 5 V Power Connectors
 ▪ Easy switching between PCIe and Stand-alone modes
▪ Jumpers for configuration via PCI Express bus
 ▪ x8 General Purpose IO headers
▪ System Monitor
 ▪ Size: 6.6" x 4.25" (pluggable to servers)
 ▪ Linear Technology FPGA/RocketIO Power Regulators LTM4601EV and LTC3026  (Linear Technology Power Management Solution for Xilinx devices)

Features Supported By Add-on Modules
 ▪ USB 3.0 / 2.0 Host & Device
▪ x2 SFP
▪ x1 SATA
▪ x1 CX4
▪ x16 /x8 SMA
▪ x1 SD Card Interface
▪ x1 Mictor

 ►Kit Content:

  • Development Board

  • CD ROM with reference designs (x4 PCI Express Gen 1 & Gen 2), schematics, user manual, UCF, XBD, etc.

  • PCI Express / USB Drivers (evaluation versions)
►Part Numbers & Prices:

HTG-V5-DDR3-PCIE-FX70   (populated with XC5VFX70T-2FFG1136C) :            $1,695  [Buy Online]
HTG-V5-DDR3-PCIE-FX100-2 (populated with XC5VFX100T-2FFG1136C) :      $3,395 [Buy Online]
HTG-V5-DDR3-PCIE-FX100-3 (populated with XC5VFX100T-3FFG1136C) :      $3,695 [Buy Online]
HTG-V5-DDR3-PCIE-LX155 (populated with XC5VLX155T-1FFG1136C):          $3,495 [Buy Online]
HTG-V5-DDR3-PCIE-LX110-1 (populated with XC5VLX110T-1FFG1136C):      $2,595 [Buy Online]
HTG-V5-DDR3-PCIE-LX110-3 (populated with XC5VLX110T-3FFG1136C):      $2,995 [Buy Online]
HTG-V5-DDR3-PCIE-LX50   (populated with XC5VLX50T-1FFG1136C):            $1,550 [Buy Online]
HTG-V5-DDR3-PCIE-SX95   (populated with XC5VSX95T-1FFG1136C):            $2,995 [Buy Online]

►Special Discounted Option: (limited quantity)

HTG-V5-DDR3-PCIE-FX70-CES   (populated with XC5VFX70T-2FFG1136CES ) :  $1,250
Note: The "CES" silicon used on this module has the exact features and performance as the "C" grade

►Software:

-  PCI Express Driver Source Code (C) - Windows XP or Linux
- PCI Express Back End (High Performance DMA Engine)

Other Virtex-5 PCI Express Boards:

HTG-V5-PCIE-330 (with XC5VLX330T-FF1738C, XC5VFX200T-FF1738, or XC5VSX240T-FF1738)
HTG-V5-PCIE-110 (with XC5VLX110T-FF1136C, SX95, FX100T, or FX70T)

► Optional Accessories/Tools:


RocketIO add-on module with x1 CX4, x16 SMAs
(4 RocketIO ports), and IO headers
Part Number: HTG-SMA-CX4-HDR
Price: $395




Communication/storage add-on module with x1 SD interface,  x1 Debug port, x1USB 2.0 & 3.0 Host, x1 USB 2.0 & 3.0 Peripheral, x2 SFP, x1 SATA, and x8 SMA(2 RocketIO ports)
Part Number: HTG-COM-MDL
Price: $495
USB 3.0 (Host/Device), SFP, and SMA

Part Number: HTG-USB3-MDL
Price: $390



14-bit AD/DA Module
Board to board (or to module) connector (6")
Part #: QSE-TO-QSE
Price: $175

Cable Builder for the high-speed connectors

SMA to SMA Cable
  (24 Inches)
Part #: SMA-CBL2
Price: : $18



PC for PCI Express Development
PCI Express Gen 2 PC

PCI Express Gen 1 PC



The latest Xilinx FPGA Design Tool




ChipScope Pro Debugging Tool


System Generator™ For DSP


FPGA Programming Cable (USB)

ISE™ Simulator

Embedded Development Kit		 Free Tools:

► PCI Tree: A graphical Windows tool to look at all the hardware devices of the PCIbus
■ Free Download
■ User Guide

Summary of Virtex-5 PCI Express Boards


  PCIe Support Memory Communication/Interface
  Gen 1 Gen2     Expandable I/Os
Part Number  Xilinx FPGA x8 x4 x8 x4 DDR2 DDR3 Flash 1 GigE USB 3.0 SD SFP SATA SMA PCIe    (F) Mictor Single LVDS MGT
HTG-V5-PCIE-330-1  LX330T-1 √ √ - - 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-330-2  LX330T-2 √ √ - - 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-200  FX200T-2 √ √ √ √ 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-240  SX240T-1 √ √ - - 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-110  LX110T-1 √ √ - - 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-95  SX95T-1 √ √ - - 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-70  FX70T-2 √ √ √ √ 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-100  FX100T-2 √ √ √ √ 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-DDR3-70  FX70T-2 - √ - √ 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
HTG-V5-PCIE-DDR3-100  FX100T-2 - √ - √ 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
HTG-V5-PCIE-DDR3-95  SX95T-1 - √ - - 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
HTG-V5-PCIE-DDR3-155  LX155T-1 - √ - - 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
