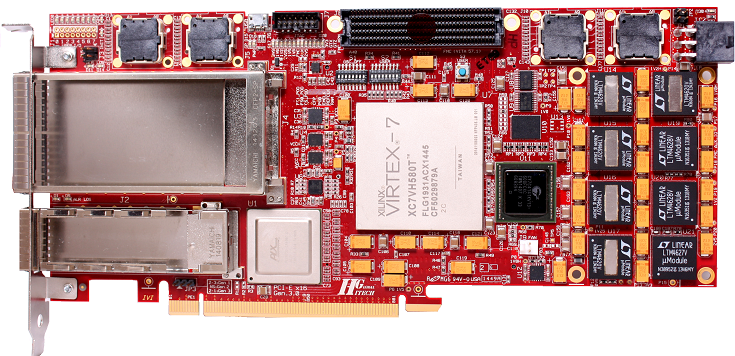

HTG-728: Xilinx Virtex™ -7 100Gig Network Interface Card  (NIC)


* Two DDR3 SODIMMS are placed on the back (total of 16GB)

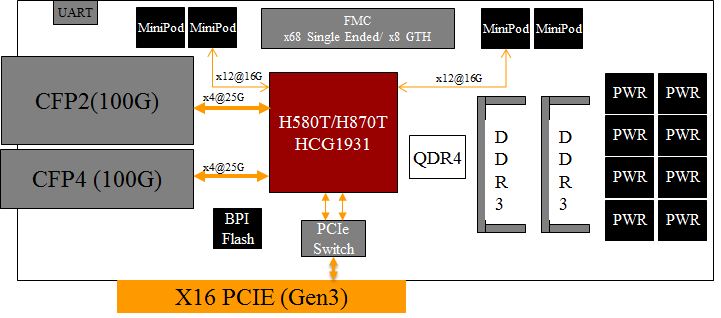

Powered by Xilinx Virtex-7 H580T, the HTG-728 network card provides access to sixteen lanes of PCI Express Gen 3 ( 16 x 8Gbps), one CFP2 (4x25Gbps), one CFP4 (4x25Gbps), one Cypress QDR IV Memory, two DDR3 SODIMMs (up to 16GB), and two Avago MiniPod ports (total of  24x13Gpbs).

100Gbps Ethernet MAC & PCS IP core with CAUI-4 (-C4 option)  interface  is available for supporting the CFP2 and CFP4 interfaces.

The HTG-728 is supported by two Avago MiniPOD™ embedded optical transmitters /receivers offering unparalleled density, bandwidth, and design flexibility for board and system-level interconnect. Each port with 12 TX and RX lanes provides 120Gbps of aggregate bandwidth.

Key features of the MiniPod:

  • Compliant to IEEE 802.3ba 100GbE (100GBASE-SR10 and nPPI) per lane
  • Compliant to 12×QDR Infiniband
  • Operates at 10.3125 Gbps per channel with 64b/66b encoded data for 100GbE application and at 10 Gbps with 8b/10b encoded data for IB-QDR application
  • High Aggregate bandwidth: 120 Gbps per module
  • Separate transmitter and receiver modules
  • Links up to 150 m at 10.3125 Gbps with OM4 4700 MHz•km 50 mm MMF

  • (Two DDR3 SODIMMS are placed on the back side)

    Features:

    x1 Xilinx Virtex-7 H580T
    x16 PCI Express Gen3 (16x8Gbps)
    x1 CFP2 (4x25Gbps)
    x1 CFP4 (4x25Gbps)
    x1 Cypress QDR IV SRAM
    x2 DDR3 SODIMMs (with support up to 16GB)
    x4 Avago MiniPod (24 Tx and 24 Rx) for board-to-board high-speed communications
    x1 FMC with 8 GTH transceivers and 34 LVDS pairs (LA0-LA33)
    x1 USB/UART
    1Gb embedded BPI Flash device for programming
    IP Protection chip
    Size: 9.5"x 4.25"
    Ordering information:

    Part Numbers:
    -
    HTG-V7-X16PCIE-580

    Price:
    Contact Us
