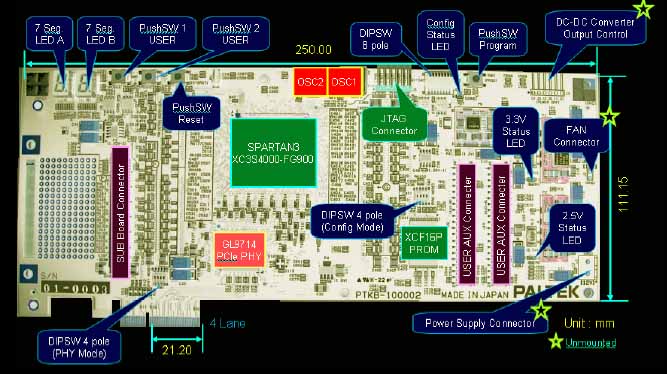

This 4-Lane PCI Express platform is designed for rapid development with Xilinx Spartan-3 (XC3S4000) PCI Express controller IP core, and external PHY (GL9714).

Two DDR SO-DIMM connectors (soldered on the back) provide generous amount of memory. The DDR Memory Controller IP Core is available through HiTech Global.

The Prototyping Area, Sub Board, and User AUX Connectors can host different daughter cards and modules.

Spartan 3 Product Table:

Spartan-3	XC 3S50	XC 3S200	XC 3S400	XC 3S1000	XC 3S1500	XC 3S2000	XC 3S4000	XC 3S5000
System Gates	50K	200K	400K	1000K	1500K	2000K	4000K	5000K
Logic Cells	1,728	4,320	8,064	17,280	29,952	46,080	62,208	74,880
18x18 Multipliers	4	12	16	24	32	40	96	104
Block RAM Bits	72K	216K	288K	432K	576K	720K	1,728K	1,872K
Distributed RAM Bits	12K	30K	56K	120K	208K	320K	432K	520K
DCMs	2	4	4	4	4	4	4	4
I/O Standards	24	24	24	24	24	24	24	24
Max Differential I/O Pairs	56	76	116	175	221	270	312	344
Max Single Ended I/O	124	173	264	391	487	565	712	784
Package	User I/O	User I/O	User I/O	User I/O	User I/O	User I/O	User I/O	User I/O
VQ100	63	63	–	–	–	–	–	–
TQ144	97	97	97	–	–	–	–	–
PQ208	124	141	141	–	–	–	–	–
FT256	–	173	173	173	–	–	–	–
FG320	–	–	221	221	221	–	–	–
FG456	–	–	264	333	333	333	–	–
FG676	–	–	–	391	487	489	489	–
FG900	–	–	–	–	–	565	633	633
FG1156	–	–	–	–	–	–	712	784
