4 Lane PCI Express Xilinx Virtex 4 board

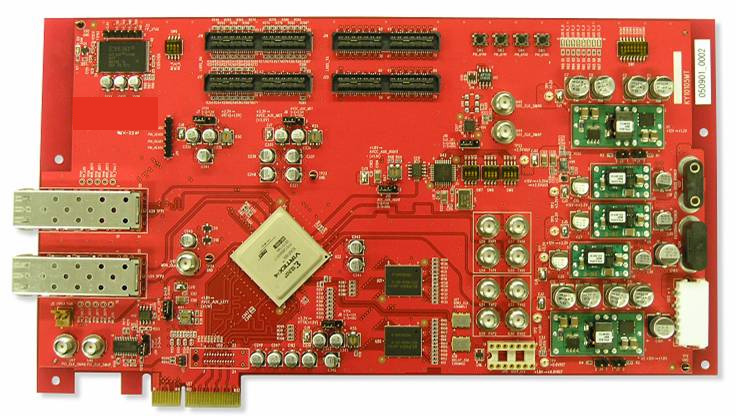

	4-Lane PCI Express Development Board Xilinx Virtex™ -4 FX60

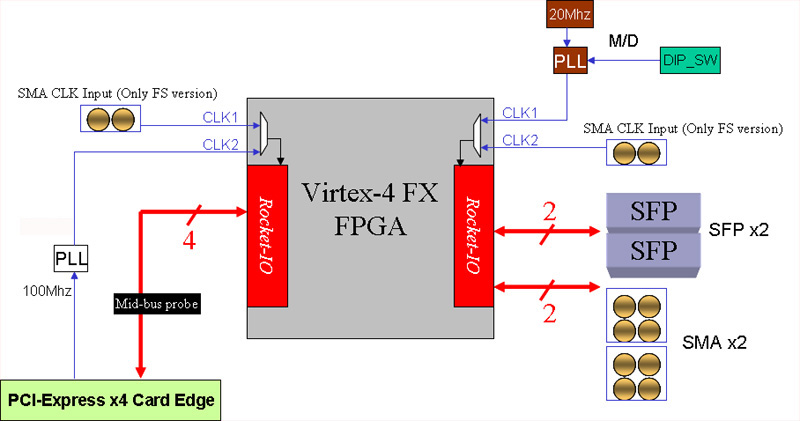

Powered by Xilinx Virtex-4 FX60 FPGA, this is an ideal platform for 4-Lane PCI Express development and evaluation. Four RocketIO Multi Gigabit Transceivers (MGT) provide PCI Express PHY interface with data throughput of 2.5 Gbps per lane. The on-board connector for Agilent PCI Express Mid Bus Probe increases protocol test coverage and eliminates the need for time-consuming test board setups.

Total of 8 SMA connectors provide direct access to 2 RocketIO MGTs (4 SMA per channel). The SMA to SFP/SATA/HSSDC2 conversation modules extend the usage of this board for other mainstream serial inference standards. 2 SFP connectors also provide direct access to 2 additional RocketIO MGTs.

4 LVDS ports provide access to 40 pairs of LVDS signals. These ports can be used for connecting different boards or daughter cards to the platform.

A variable clock circuit with 20 Mhz Oscillator, PLL, and Dip Switch can create data rates from 622 Mbps ~ 6 Gbps for RocketIO MGTs.

Xilinx FPGA
ISE Design Tool

Xilinx Virtex-4 FX Product Table

Feature/Product	XC 4VFX12	XC 4VFX20	XC 4VFX40	XC 4VFX60	XC 4VFX100	XC 4VFX140
Logic Cells	12,312	19,224	41,904	56,880	94,896	142,128
Block RAM/FIFO w/ECC (18 kbits each)	36	68	144	232	376	552
Total Block RAM (kbits)	648	1224	2,592	4,176	6,768	9,936
Digital Clock Managers (DCM)	4	4	8	12	12	20
Phase-matched Clock Dividers (PMCD)	0	0	4	8	8	8
Max Differential I/O Pairs	160	160	224	288	384	448
XtremeDSP™ Slices	32	32	48	128	160	192
PowerPC Processor Blocks	1	1	2	2	2	2
10/100/1000 Ethernet MAC Blocks	2	2	4	4	4	4
RocketIO Serial Transceivers	0	8	12	12	20	24
Configuration Memory Bits	5,017,088	7,641,088	15,838,464	22,262,016	35,122,240	50,900,352
Max SelectIO	320	320	448	576	768	896


Features: - Xilinx Virtex-4 XC4VFX60-10FF672C - 4-Lane PCI-Express Port - 2 SFP Ports - 2 SMA Ports (connected to two RocketIO MGTs) - 4 LVDS Connectors (total of 44 pairs) - DDR2 SDRAM Chip x 2 (512Mb,400Mbps x 2pcs) - 2 SMA Differential Clock Inputs- Mid-bus Probe (Agilent Technology) for Evaluating PCI-Express Serial signal		Deliverables: - Board - CD-ROM (User Manual, Schematics, and Sample Design) Part Number & Price: HTG-4PCEXP-FS : $2,550 HTG-4PCEXP: $2,200 (SMA Clock Input and LVDS Connectors are not included) Lead Time: 1 week ►Software: - PCI Express Driver Source Code (C) - Windows XP or Linux [How To Buy]
Related Products:
SMA To SFP Conversion Module Part #: SMA-TO-SFP Price: $235	SMA To SATA Conversion Module Part #:SMA-TO-SATA Price: $235	SMA To HDSSDC2 Conversion Module Part #: SMA-TO-HSSDC2 Price: $289	SMA To SMA Cable: Part #:SMA-CBL2 Price: $21 24-Inch cable used for connecting 4 on-board SMA connectors to the conversion modules.
