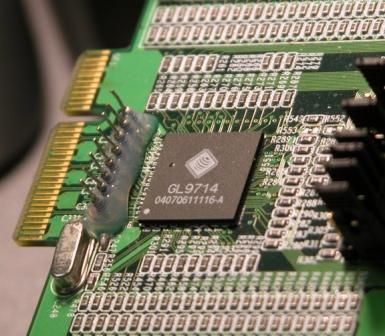

The GL9714 is a 4-lane PCI Express PHY Layer Controller, which is compliant with PCI Express Base Specification rev. 1.0a and Intel’s PHY Interface for the PCI Express Architecture rev. 1.0. It integrates a quad SerDes and the Physical Coding Sub-layer (PCS) which performs 8b/10b encoding and decoding, elastic buffer and receiver detection, data serialization and deserialization for each lane. The quad SerDes in the GL9714 supports an effective serial interface speed (2.5 Gb/s) of data bandwidth for each lane, intended for use in ultrahigh-speed bi-directional data transmission system.

The GL9714 can also be externally configured for various combinations of lane number and parallel bus width which is flexible and suitable for x1, x2 or x4 lane implementation. It also supports four operational states for power management to minimize power consumption.

For production and self-test purposes, the GL9714 provides BIST and an internal loopback capability. The primary application of this chip is to provide very high-speed I/O data channels for point-to-point baseband data transmission over an on-chip termination resister of 50 Ohm +/- 10%.

This device can also be used to replace parallel data transmission architectures by providing a reduction in the number of traces, connector pins, and transmit/receive pins. Parallel data loaded into the transmitter is delivered to the receiver over a serial channel. It is then reconstructed into its original parallel format. The maximum data transfer rate in each direction is 1 Giga byte per second with the 4-lane configuration. It also offers various power saving modes to significantly reduce power consumption as well as scalability for a higher data rate in the future.

Main Features:

• Complies with PCI Express Base Specification rev. 1.0a.

• Complies with Intel’s PHY Interface for PCI Express Architecture rev. 1.0.

• Integrates quad 2.5 gigabit per second (Gpbs) Serializer/Deserializer.

• Supports 8-bit or 10-bit parallel interface @250MHz for x1, x2 and x4 implementation

• Supports 16-bit parallel interface @125MHz for x1 and x2 configuration

• Supports DDR configuration for 8-bit or 10-bit mode

• Beacon transmission and reception

• Receiver detection

• Transmission and detection of electrical idle

• Supports internal Loopback

• Clock tolerance for 600 PPM in frequencies between bit rates at the two end of a Link

• On-chip 8-bit/10-bit encoding/decoding and comma alignment

• On-chip PLL provides clock synthesis

• 1.8-V power supply for core.

• 2.5-V power supply for IO

• Above 2.0 kV ESD protection

• 0.18 mm process

• Available in LFBGA-233 package

Price : (Please include the quantity)

Part Number: GL9714
[ Buy GL9714 Samples Online]

Documentation:

• GL9714 User Manual
• Application Note
• PCI Express Overview
• GL9711 (1-Lane PCI Express PHY)

PCI Express IP Cores
x1, x4, and x8 Configuration

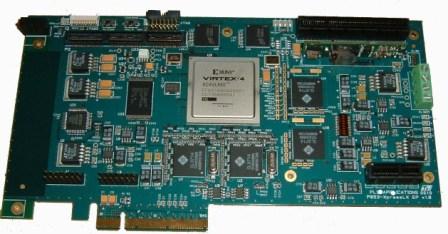

Xilinx Virtex-4 LX Based Development Board with GL9714 PCI Express PHY

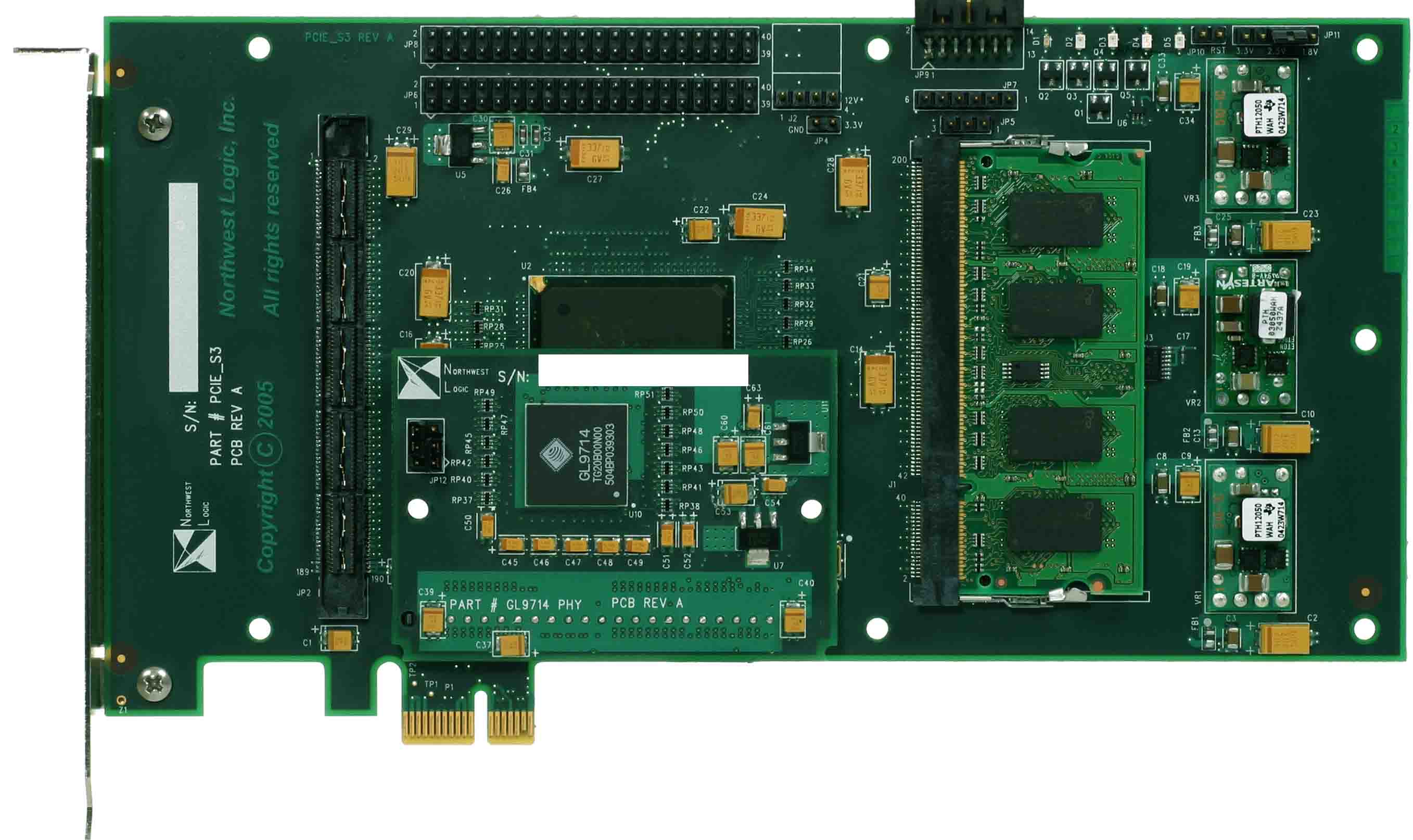

Xilinx Spartan-3 Based Evaluation Board with GL9714 PCI Express External PHY
