The GL3310 is a highly integrated USB 3.0 to SATA 3Gb/s bridge controller, which includes USB 3.0 SuperSpeed transmitter/receiver physical layer (PHY), USB 2.0 HighSpeed PHY, and Serial ATA (SATA) PHY. It also backward compatible with USB 2.0 and SATA 1.5Gb/s. This single chip solution complies with Universal Serial Bus Specification revision 2.0, Universal Serial Bus 3.0 Specification revision 1.0, and Serial ATA Revision 3.0 Specification Gold Revision

Main Features:

►USB specification compliance
    − Comply with Universal Serial Bus 3.0 Specification rev. 1.0 (USB 3.0)
    − Comply with Universal Serial Bus Specification rev. 2.0 (USB 2.0)
    − Comply with USB Mass Storage Class Specification rev. 1.0
    − Support USB Mass Storage Class Bulk-Only Transport (BOT)
    − Support USB Attached SCSI (UAS) and USB Attached SCSI Protocol (UASP)
    − Support 1 device address and up to 6 endpoints: Control (0) / Bulk Data Write Out (1) / Bulk Data Read In (2) / Interrupt In (3) / CMD Out (4) / Status In (5)
    − Support 5 Gbps SuperSpeed, 480 Mbps high-speed, and 12 Mbps full-speed transfer rates
► SATA specification features
    − Comply with Serial ATA Revision 3.0 Specification Gold Revision
    − Support SATA power saving, including partial and slumber modes
    − Support SATA Hot Plug
    − Support Native Command Queuing up to 32 commands
    − Support SATA host/device initiated power management
    − Support SATA BIST host/device initiated eye pattern test
    − Support 3.0 Gbps and 1.5 Gbps transfer rates
► Embedded 8051 micro-controller
    − Embedded 16 Kbytes mask ROM and internal 48 Kbytes SRAM
► Embedded 5V-to-3.3V and 3.3V-to-1.2V regulators
    − No external regulators required
    − 5 V / 3.3 V power sources
► Single 25 MHz clock source
► Available in 48-pin QFN (7 x 7 mm) and 64-pin LQFP (7 x 7 mm) packages
► Other Features
    − Spread Spectrum Clocking (SSC) for EMI reduction
    − On-chip watchdog timer for automatic error recovery
    − Primary SPI interface for firmware update
    − Secondary SPI interface for display controller
    − PWM interfaces for fan control and LED control (2 GPIOs)
    − UART interface for debugging

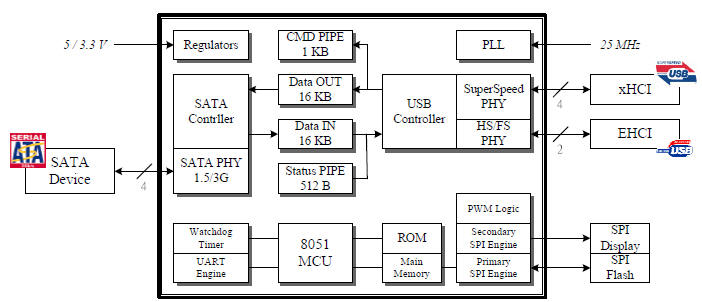

Block Diagram

Part Numbers:

GL3310-ONGXX  (QFN 48 package)
GL3310-MSGXX (LQFP 64 package)
