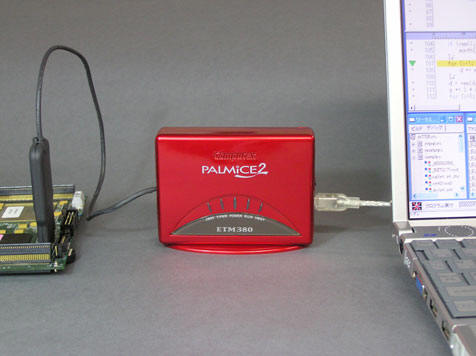

ETM Model

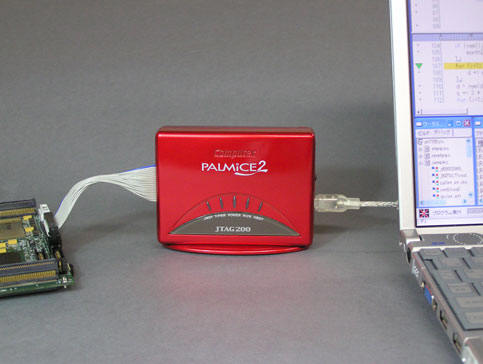

JTAG Model |
|
PALMiCE2H ARM is a JTAG emulator
for ARM7, 9, and 11 processor cores. This emulator is available
in JTAG and ETM models,. The JTAG model provides faster
processing of various tasks. In addition to faster processing,
the ETM model supports by-second tracing with ETM by
large-capacity tracing memory incorporated .
The ETM model supports backward execution and back
step that are not possible in ordinary execution .
Furthermore, the Transition Window is available for viewing
switching by function unit. When Linux is used, switching can be
viewed by process unit (allowing the kernel and process
operation flow be traced easily) Debugging efficiency can be
improved by capturing bug into large-capacity tracing memory,
narrowing the suspected bug range down in Transition Window, and
identifying the bug root by using trace-back feature.
Key Features:
● By-second tracing with ETM
● High-speed downloading and Processing (USB 2.0 based)
● CPU break feature
● Palm-sized and compact body
● Supports multi-core CPU
● Flash memory debugging feature
● Installed with CSIDE Ver.5
● Low voltage support (automatically follows target voltage
between 1.0V and 3.6V) and voltage measuring feature
● Supports debugging of a range of RTOSs and embedded Linux
(Optional) |
|
|
ETM383 model |
JTAG 201 model
|
|
Supported CPU Cores
|
ARM7TDMI, ARM7TDMI-S, ARM720T, ARM920T,
ARM946E-S, ARM966E-S, ARM922T, ARM925T,
ARM926EJ-S, ARM1136J(F)-S, ARM1156T2(F)-S,
ARM1176JZ(F)-S, OMAP2420/22, OMAP1621/23,
OMAP2430, OMAPV2230, MP211, ARM11 MPCore |
|
Target I/F |
Voltage |
JTAG I/F 1.2V-3.6V, ETM I/F 1.0V-3.6V
（follows
target） |
1.2V-3.6V（follows target） |
|
Current Consumption
|
50μA or lower
|
|
Voltage Measurement
|
By sampling , accuracy of 50mV, and
precision of 2 decimal places.
|
|
Connector |
38-pin Mictor connector, 30cm (Can also be
used as 20-pin JTAG connector) |
20-pin JTAG connector, 30cm (OMRON-made
XG4C2031)
|
|
JTAG Clock |
Can be set freely within a range between
1KHz and 60MHz. Supports automatic
adaptation with RTCK.
|
|
Operation Mode |
ARM/Thumb mode support, Sleep mode support
（Only
when RTCK is used.）
|
|
Register, Memory Operation |
Supports referencing/editing of register and
memory - downloading to memory during
break.
|
|
Flash Memory Support |
In addition to downloading to a range of
flash memories, debugging features such as
software break settings and ordinary memory
rewriting are supported . New device
support can be added easily by using the
CSIDE.
|
|
Software Break Feature
|
256 points
|
|
CPU break feature |
ARM7/9 |
2 points. Note that 1 point only can be
specified when software breakpoints are set
（Only
ARM926EJ-S accepts 2 points）
|
|
ARM11 |
Instruction matching break: 6points; Data
matching break: 2 points (ARM1136J-S)
|
|
Hardware Break Feature
|
External force break: 1 point
|
- |
|
ETM features |
Break, etc. |
2 points
（address, data）
CPU status（Fetch/Read/Write/Read and Write）can be specified. For address and
data, options can be specified by range.）
|
- |
|
Data Mode |
4/8/16-bit port support
|
- |
|
Tracing Frequency |
200MHz (single-edge, dual-edge)
|
- |
|
Tracing Cycle |
256M cycle (40-bit time stamp (50ns/1μs))
|
- |
|
Traced Contents Display |
Shows Execution history, source, data
access, switching, Linux processes, and time
between 2 points of your choice
|
- |
|
Trace Capturing
Mode (ARM7, 9) |
Normal/Multiplex/Half-rate/Demultiplex
(single connector)
|
- |
|
Triggering Mode |
Free/Before or After trigger/Area
support/Stop/Break mode support
|
- |
|
Other |
Module execution time measurement feature
|
- |
|
Execution Time Measurement |
Measures execution time of the user program
(64-bit counter, measurement unit=1μS)
|
|
Standard Debugger |
CSIDE for PALMiCE2H ARM
|
|
General specifications |
Extended I/F |
Computex original I/F |
|
Current Consumption |
DC5V Max. approx. 3A |
DC5V Max. approx. 500mA |
|
Dedicated AC Adapter |
Input：AC100V-240V,
Output：5V,
3.5A |
Input：AC100V-240V,
Output：5V,
2A |
|
Outside Dimensions |
106mm(W)×78mm(D)×42mm(H) |
106mm(W)×78mm(D)×29.5mm(H) |
|
Host I/F |
USB mini-B (5-pinned) connector |
|
Supported host PC |
DOS/V compatibles (Windows2000/XP/Vista)
equipped with USB2.0 interface |
HW/SW Option &
Ordering Information:
Base Set
|
Product |
Remarks |
Price |
|
PALMiCE2H-ARM-E (ETM383) |
ETM383 model |
$6,295 |
|
PALMiCE2H-ARM-E (ETM383)/TB
|
ETM383 model Set with the Trace-back library
|
$8,200 |
|
PALMiCE2H-ARM-E (JTAG201)
|
JTAG201 model |
$3,200
|
|
Adapter (Optional) |
|
|
|
Product |
Remarks |
Price |
|
ADP-20P-14P |
Adapter for conversion from 20Pin to 14Pin
|
$100
|
|
ADP-ETM-JTAG14 |
Adapter for conversion from 38Pin to 14Pin
|
$100
|
|
ADP-ETM-JTAG20 |
Adapter for conversion from 38Pin to 20Pin
|
$100
|
|
ADP-JTAG20-ETM |
Adapter for conversion from 20Pin to 38Pin
|
$100
|
|
ADP-ARM-ＴＩ
|
Adapter for conversion from ARM20Pin to
TI14Pin |
$100
|
|
High-Speed Download Probe (Optional)
|
|
|
Product |
Remarks |
Price |
|
P2-DWNLD-PRB-E |
High-speed download probe 8-bit edition.
Supports high-speed (3MB/S maximum) download
to the target memory with the dedicated
probe. |
$100
|
|
P2-DWNLD16-PRB-E |
High-speed download probe 16-bit edition
Supports high-speed (10MB/S maximum)
download to the target memory with the
dedicated probe. |
$150 |
|
RTOS Debug Library
(Optional) |
|
Product |
Remarks |
Price |
|
NORTi-DBGLIB-ARM/P2-E |
For details on supported languages and RTOS
versions, please contact us.
|
$475 |
|
Nucleus-DBGLIB-ARM/P2-E |
For details on supported languages and RTOS
versions, please contact us.
|
$475
|
|
OSE-DBGLIB-ARM/P2-E |
For details on supported languages and RTOS
versions, please contact us.
|
$475
|
|
Linux Debug Library
(Optional) |
|
Product |
Remarks |
Price |
|
Linux-APDLIB -ARM/P2-E |
For details on supported languages and
versions please contact us.
|
$150 |
 |
|
|
|
