Product Description:

FP-10 Cortex-M3-INT is an on-board flash programmer specifically for on-chip flash memory of CPUs with ARM Cortex-M3 core. It connects to JTAG/SWD connector implemented on target boards. It allows writing to on-chip flash memory of the on-board CPU for development, final phase of production, and field maintenance. By specification, the data for writing into on-chip flash memory of the target CPU can be stored in the flash memory of the FP-10 main unit. This allows stand alone operation with no need for a PCI for production line or field maintenance.

Features:

► Specifically for on-chip Flash Memory of the CPUs with Cortex-M3 core
► Notification functionality for warning against writing error etc. by beep and LED indication
► Can be used as stand-alone
► Support for easy writing in production line by 1 push button
► Supports JTAG/SWD interfaces
► A palm-sized, ultra compact body
► Requires no power supply with Vbus support
► Supports USB2.0(Full-speed)
► Supports wide range of the target voltage (1.65V-5.5V)
► Supports protection functionality of on-chip flash memory
► On-chip flash memory writing time (in Stand-alone mode to delete all, write, and verify)

Operating Modes

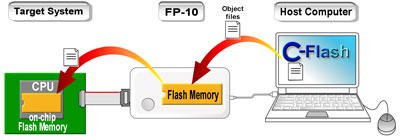

C-Flash mode
The mode for writing from the host computer to the Flash Memory installed in FP-10 main unit and to the on-chip flash memory of the CPU on the target system by using control software "C-Flash".

C-Flash mode

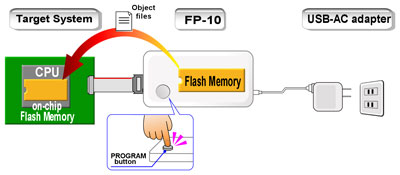

Stand-alone mode
The mode for writing from the already saved Flash Memory of FP-10 main unit to on-chip flash memory of the CPU on the target system when using without the computer.

Stand-alone mode

Supported CPUs		ATMEL-made SAM3 Family NXP Semiconductors-made LPC1000 Family STMicroelectronics-made STM32 Family Texas Instruments-made StellarisⓇFamily Toshiba Semiconductor Company-made TX03 Series Freescale semiconductor-made Kinetis
Target I/F	Voltage	1.65V - 5.5V (Follows target)
	Jtag Clock	1MHz/5MHz/10MHz/20MHz to choose from
	Current Consumption	50μA or lower
	Connector	20-pin MIL connector, 20cm cable
Control Software included as standard		C-Flash for FP-10
General specifications	Power specification	DC5V, Approx. 250mA max. (USB VBus support)
	Outside dimensions	102mm(W)×49mm(D)×22mm(H)
	OS	Windows2000 / Windows XP 32-bit version / Windows Vista 32-bit version / Windows 7 32-bit version
	Host I/F	USB mini-B (5-pin) connector
		DOS/V compatibles equipped with USB2.0 interface (Windows2000 (Service Pack 4 onward) / Windows XP (Service Pack 1 onward) / Windows Vista)

Part Number and Price:

FP-10 :

SWJ-PRB-MIL20-20HP- Probe with Serial Wire JTAG Debug Port by CoreSight. It allows connection to 20-pin (half-pitch 1.27mm) connector on the target
SWJ-PRB-MIL20-10HP- Probe with Serial Wire JTAG Debug Port by CoreSight. It allows connection to 10-pin (half-pitch 1.27mm) connector on the target

Kit Content:

•FP-10 main unit
•TARGET cable
•USB cable
•USB-AC adapter
•Dedicated control software (CD-ROM)
