Product Description:
PALMiCE2-SuperH is a JTAG
emulator that supports Renesas SuperH family cores. It consists of PALMiCE2 hardware and dedicated CSIDE
debugger software. The host interface supports USB2.0 (High-speed)
allowing faster processing of various tasks such as high-speed
downloading at 1M byte/S or higher at the remarkable level. TheVbus,
which requires no power supply, is also supported in PALMiCE2-SuperH.
PALMiCE2-SuperH has a palm-sized, light and compact body, providing
excellent portability to support designers with debugging. The product
is available in H-UDI model and AUD model with branch
tracing feature which allows to track execution within cache memory. As
for the debugger, it surely incorporates CSIDE, which provides a
user-friendly debugging environment. It supports not only high-level
language debugging of a range of C languages but also fully prepared for
the debugging of a range of RTOSs and embedded Linux.

PALMiCE2 HUDI140
PALMiCE2 AUD360

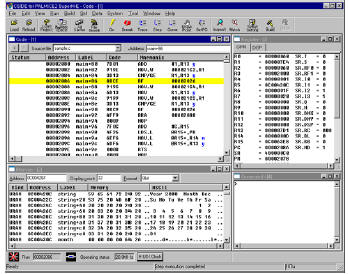

Debugger software CSIDE is
an integrated development environment
that provides an
editor, a builder, and a debugger. The CSIDE enables an editor to
be opened by a tag
jump to a location where an error occurred and breakpoints to be set
directly on the editor
screen. A built file can be downloaded to the debugger (CSIDE)
automatically.
CSIDE supports the following:
Direct Data Change -changes values and settings directly without
using the
menu.
Double-Click Action -enables the set content to be changed easily in
a setting dialog box.
Simply move the mouse cursor to an item to be changed, double-click to open a dialog box,
and change it.
Pop-up Menu -is allocated to the all functions of each window.

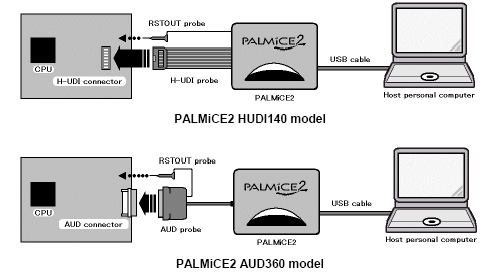

The PALMiCE2 unit has a palm-sized body and does not require power supply
(supports Vbus). The use of the USB as an interface with a host provides
excellent portability and flexibility.
Features:
Supports USB standard Revision 2.0 High-speed and
Full-speed
Needs no power supply to PALMiCE2 (Supports VBus)
Makes a simple connection with PCs
Makes a simple connection with the target system
Supports on-chip flash memory (SH-2 (Except
SH7618, SH7619, SH7606))
Has a light and compact body
Enables latest CSIDE to be downloaded from the
Internet
|
Main
Specification:
|
|
AUD Model |
H-UDI Model |
|
Supported CPU |
SH7780 (SH-4A),
SH7750S/SH7750R/SH7751/SH7751R/SH7760(SH-4),SH7705/SH7706/SH7709S(SH-3),
SH7729/SH7729R/SH7727/SH7710/SH7712/SH7720(SH3-DSP),
SH7206(SH-2A),
SH7615/SH7616(SH2-DSP),
SH7047F/SH7144F/SH7145F/SH7618/SH7619/
SH7606/SH7083F/SH7084F/SH7085F/SH7086F(SH-2)
|
|
Target I/F |
Voltage |
Output: 3.3V; Input: 5V-tolerant.
|
|
Connector |
36-pinned half-pitch connector
(3M-made 10236-52A2JL)
40cm cable |
14-pinned connector
(OMRON-made XG4C1431)
20cm cable |
|
H-UDI clock |
Can
be set freely in 0.5MHz increments
between 1MHz and 20MHz. |
|
Register, memory, I/O operation
|
Supports referencing/editing of
register, memory, and I/O and
downloading to memory during break.
|
|
Flash memory support
|
In
addition to downloading to a range
of flash memories, it also supports
debugging features such as software
break settings and ordinary memory
rewriting feature. Also, new device
can be added easily with definition
file format. In CPUs such as
SH7047/144/145 equipped with the
flash memory, features such as
software break settings and memory
rewriting feature are also supported
in addition to downloading to
on-chip flash memory.
|
|
Software break feature
|
256
points |
|
Reset feature |
Debugger can be started up
in synchronization with the target
by clipping the RESET probe to
power-on-reset circuit in the
target. |
|
Execution time measurement
|
Measures execution time of the user
program (64-bit counter, measurement
unit＝1μS)
|
|
Debugger included as standard
|
CSIDE
for PALMiCE2 SuperH, CSIDE for
PALMiCE2 SuperH-A |
|
General specifications
|
Extended I/F |
Computex original I/F |
|
Power specification |
DC+5V
400mA (Vbus support for USB)
|
DC+5V
330mA (Vbus support for USB)
|
|
Outside dimensions |
106mm(W) ×78mm (D) ×29.5mm (H)
|
|
Host I/F |
USB
mini-B (5-pinned) connector
|
|
Supported host PC |
DOS/V
compatibles
(Windows98SE/2000/Me/XP/Vista)
equipped with USB2.0 (1.1 is also
supported) I/F
|
|
Kit Content |
PALMiCE2-SuperH (AUD360), 2m USB
cable, manual, dedicated debugger
（CD
ROM） |
PALMiCE2-SuperH (HUDI140), 2m USB
cable, manual, dedicated debugger
(CD-ROM), RESET probe |

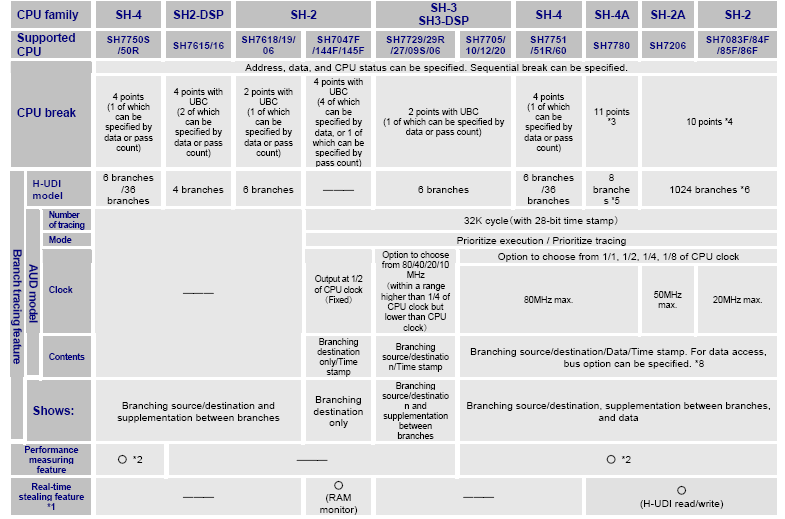

Functional
Specification By CPU
*1： The feature allows
referencing /editing of target memory, I/O,
and on-chip memory in CPU without even a
temporary break during user program
execution.
It is suitable for target
debugging pursuing real-timeliness. RAM
monitor feature by AUD（which cannot be used
in parallel with branch tracing feature） and
H-UDI read/write feature
by H-UDI are
available.
*2： The feature allows to measure and show
execution cycle count, valid instruction
line cycle count, cache hit rate, and
frequency of interrupt and access to on-chip
I/O.
*3： CPU: 8 points can be specified
(Instruction only： 2 points,
Instruction/Operand address： 2 points,
Instruction/Operand address + data： 2
points, Access break within the memory
range
you specified： 2 points). Another bus: 2
points can be specified (by data access).
Other: 1 point (Break during LDTLB
instruction execution).
*4： Instruction (before/after execution
option)/Operand address + data: 2 points can
be specified. Instruction (before/after
execution)： 1point can be specified.
Instruction (before execution)
only：7 points
can be specified.
*5： Also supports user RAM tracing to output
the traced data to the user memory area you
specified besides tracing for maximum of 8
branches within CPU.
*6： Access information such as
Read/Write/Fetch/DMA can be acquired besides
branching information.
*7： SH7083F/84F/85F/86F、SH7149F only
supports marketable chip （debugging chip）.
*8： SH7780、SH7206/SH7083F/84F/85F/86F allows
to show software tracing. |
Part Number and Price:
-
PALMiCE2-SuperH-E (HUDI140):
$2,100 [Buy
Online]
Software Maintenance: $300
-
PALMiCE2-SuperH-E (AUD360): $2,600
Software Maintenance: $300
Adapter (Optional)
▪
ADP-HUDI14-MIC38
(Adapter for conversion from 14 Pin to 38
Pin) $110
▪
ADP-HUDI-AUD (Adapter
for conversion from 14 Pin to 36 Pin) $110
▪
ADP-AUD-14 (Adapter for
conversion from 36 Pin to 14 Pin) $110
▪
ADP-AUD36-MIC38 (Adapter
for conversion from 36 Pin to 38 Pin) $130
|
Kit Content:
▪
PALMiCE2(HUDI140 or AUD360)
▪
Software (CD-ROM)
▪
PALMiCE2 SuperH Series User’s Manual
▪
License Tool Manual
▪
USB cable (2m)
▪
Stand
▪
RSTOUT probe (HUDI140 only)
|
|
|
|
|
