Single 12-bit ADC (10.25 GSPS)/ Dual 16-bit DAC (12.6 GSPS) FMC+ Module (Vita57.4)

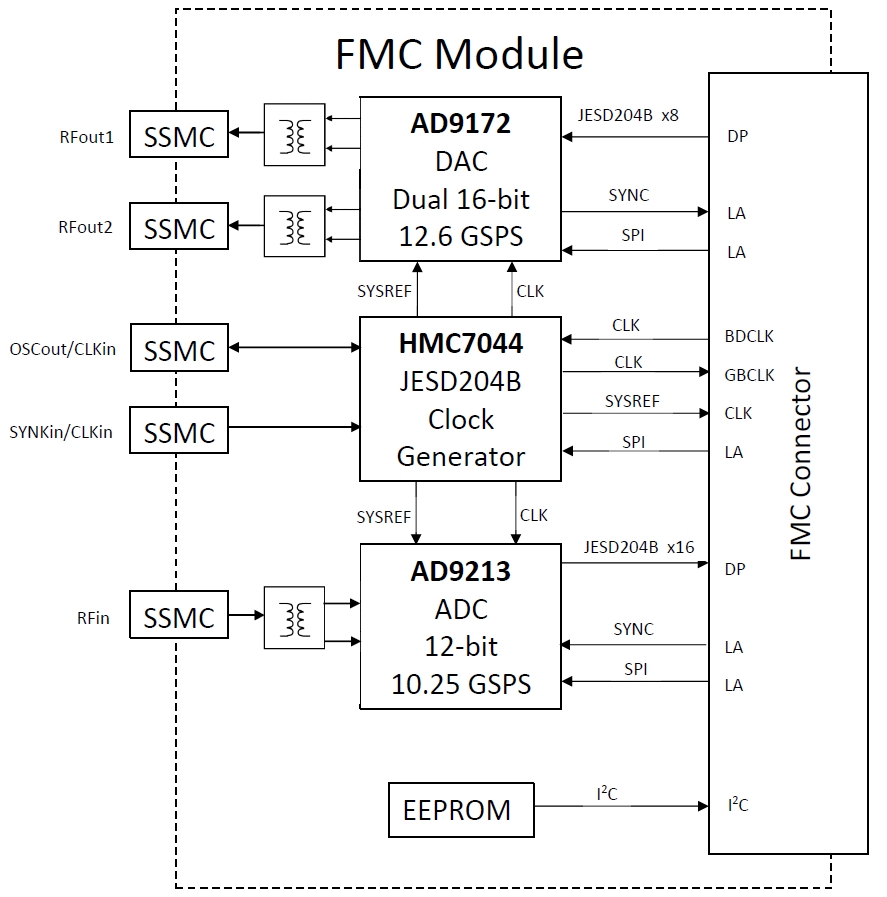

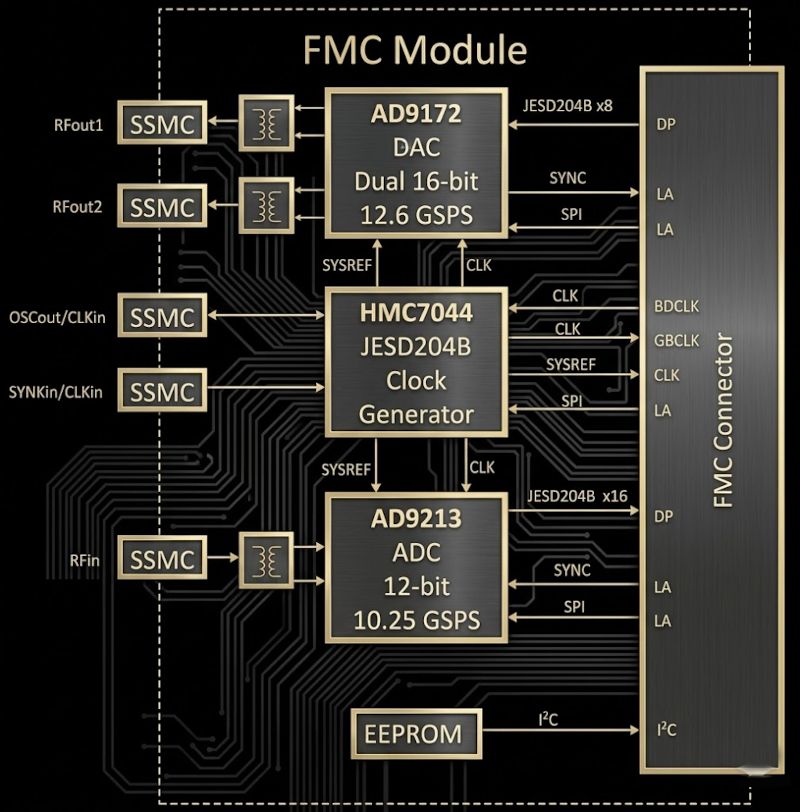

This Vita57.4/ JESD204B compliant FMC+ module is powered by Analog Devices' AD9213 (12-bit ADC @ 10.25GSPS), AD9172( dual 16-bit DAC @ 12.6 GSPS), and HMC7044 attenuator. The main interface with a host FPGA is supported through 16 serial transceivers.

The AD9213 is a single 12-bit, 10.25 GSPS, RF analog-to-digital converter (ADC) with a 6.5 GHz input bandwidth. The AD9213 has been optimized to support high dynamic range frequency and time domain applications requiring wide instantaneous bandwidth and low code error rates (CER). The AD9213 features a 16-lane JESD204B interface to support its maximum bandwidth capability.

ADC (AD9213) Parameters


  • High instantaneous dynamic range
    • Noise spectral density 154dBFS/Hz
    • SFDR 68dBc (1GHz, −1dBFS)
  • Low power consumption: 5.1W at 10Gsps
  • Integrated Input Buffer (6.5GHz input bandwidth)
    • 1.4V p-p full-scale input with RIN=50 Ω
    • Overvoltage protection
  • 16-lane JESD204B output (up to 16 Gbps line rate)
  • Multichip sync capable with 1 sample accuracy
    • DDC NCO synchronization included
  • Fast overrange detection for efficient AGC
  • Integrated DDC
    • Selectable decimation factors
    • 16-profile settings for fast frequency hopping
  • Optional on-chip PLL clock multiplier
  • On-chip temperature sensor
  • On-chip negative voltage generators
  • Low CER <1e−16
  • Applications:

    • Spectrum analyzers
    • Military communications
    • Radar
    • High performance digital storage oscilloscopes
    • Active jamming/antijamming
    • Electronic surveillance and countermeasures
    • DPD observation path



    DAC (AD9172) Parameters

    • Supports multiband wireless applications
      • 3 bypassable, complex data input channels per RF DAC
      • 1.54 GSPS maximum complex input data rate per input channel
      • 1 independent NCO per input channel
    • Proprietary, low spurious and distortion design
      • 2-tone intermodulation distortion (IMD) = −83 dBc at 1.8 GHz, −7 dBFS/tone RF output
      • Spurious free dynamic range (SFDR) <−80 dBc at 1.8 GHz, −7 dBFS RF output
    • Flexible 8-lane, 15.4 Gbps JESD204B interface
      • Supports single-band and multiband use cases
      • Supports 12-bit high density mode for increased data throughput
    • Multiple chip synchronization
      • Supports JESD204B Subclass 1
    • Selectable interpolation filter for a complete set of input data rates
      • 1, 2, 3, 4, 6, and 8 configurable data channel interpolation
      • 1, 2, 4, 6, 8, and 12 configurable final interpolation
    • Final 48-bit NCO that operates at the DAC rate to support frequency synthesis up to 6 GHz
    • Transmit enable function allows extra power saving and downstream circuitry protection
    • High performance, low noise PLL clock multiplier
      • Supports 12.6 GSPS DAC update rate
      • Observation ADC clock driver with selectable divide ratios
    • Low power
      • 2.55 W at 12 GSPS, dual channel mode

    Applications:

    • Wireless communications infrastructure
      • Multiband base station radios
      • Microwave/E-band backhaul systems
    • Instrumentation, automatic test equipment (ATE)
    • Radars and jammers
    Features

    Vita57.4 FMC+ HPC Connector
    x1 ADI AD9213 single 12-bit ADC
    x1 ADI AD9172 Dual 16-bit DAC
    x6 SSMC RF Connectors



    Ordering information

    - Part Number: HTG-FMC-12ADC-16DAC
    - Price: Please contact us

    12" SSMC To SMA Cable
    24" SSMC To SMA Cable

    ECCN #: EAR99
    SCHEDULE B #:
    8471601050
