Dual14-bit ADC (3 GSPS)/ Dual 16-bit DAC (12.6 GSPS) FMC Module (Vita57.1)

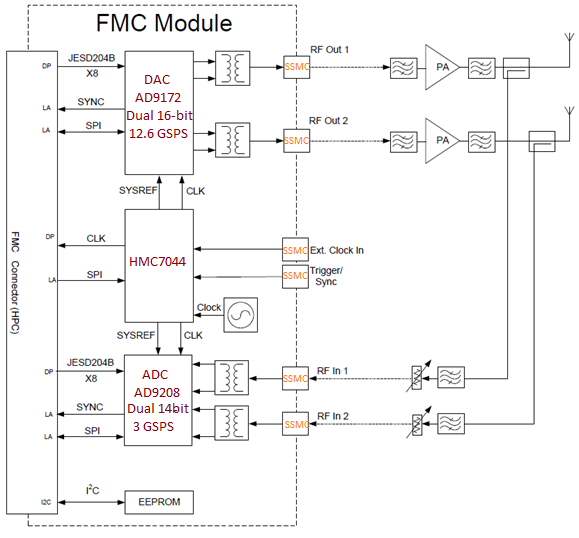

This Vita57.1/ JESD204B compliant FMC module is powered by Analog Devices' AD9208 (dual 14-bit ADC @ 3 GSPS), AD9172( dual 16-bit DAC @ 12.6 GSPS), and HMC7044 attenuator. The main interface with a host FPGA is supported through 8 serial transceivers.

AD9689 is footprint compatible with AD9208  and can be offered as an option when ordering the product.

ADC (AD9208) Parameters

  • JESD204B (Subclass 1) coded serial digital outputs
    • Support for lane rates up to 16 Gbps per lane
  • 1.65 W total power per channel at 3 GSPS (default settings)
  • Performance at −2 dBFS amplitude, 2.6 GHz input
    • SFDR = 70 dBFS
    • SNR = 57.2 dBFS
  • Performance at −9 dBFS amplitude, 2.6 GHz input
    • SFDR = 78 dBFS
    • SNR = 59.5 dBFS
  • Integrated input buffer
  • Noise density = −152 dBFS/Hz
  • 0.975 V, 1.9 V, and 2.5 V dc supply operation
  • 9 GHz analog input full power bandwidth (−3 dB)
  • Amplitude detect bits for efficient AGC implementation
  • 2 integrated, wideband digital processors per channel
    • 48-bit NCO
    • 4 cascaded half-band filters
  • Phase coherent NCO switching
  • Up to 4 channels available
  • Serial port control
    • Integer clock with divide by 2 and divide by 4 options
    • Flexible JESD204B lane configurations
  • On-chip dither

Applications:

  • Diversity multiband, multimode digital receivers
  • 3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
  • Electronic test and measurement systems
  • Phased array radar and electronic warfare
  • DOCSIS 3.0 CMTS upstream receive paths
  • HFC digital reverse path receivers
DAC (AD9172) Parameters

  • Supports multiband wireless applications
    • 3 bypassable, complex data input channels per RF DAC
    • 1.54 GSPS maximum complex input data rate per input channel
    • 1 independent NCO per input channel
  • Proprietary, low spurious and distortion design
    • 2-tone intermodulation distortion (IMD) = −83 dBc at 1.8 GHz, −7 dBFS/tone RF output
    • Spurious free dynamic range (SFDR) <−80 dBc at 1.8 GHz, −7 dBFS RF output
  • Flexible 8-lane, 15.4 Gbps JESD204B interface
    • Supports single-band and multiband use cases
    • Supports 12-bit high density mode for increased data throughput
  • Multiple chip synchronization
    • Supports JESD204B Subclass 1
  • Selectable interpolation filter for a complete set of input data rates
    • 1, 2, 3, 4, 6, and 8 configurable data channel interpolation
    • 1, 2, 4, 6, 8, and 12 configurable final interpolation
  • Final 48-bit NCO that operates at the DAC rate to support frequency synthesis up to 6 GHz
  • Transmit enable function allows extra power saving and downstream circuitry protection
  • High performance, low noise PLL clock multiplier
    • Supports 12.6 GSPS DAC update rate
    • Observation ADC clock driver with selectable divide ratios
  • Low power
    • 2.55 W at 12 GSPS, dual channel mode

Applications:

  • Wireless communications infrastructure
    • Multiband base station radios
    • Microwave/E-band backhaul systems
  • Instrumentation, automatic test equipment (ATE)
  • Radars and jammers

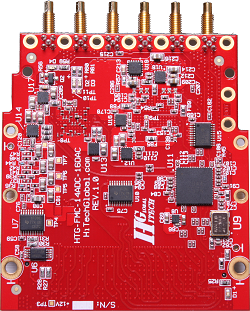

Features

Vita57.1 FMC HPC Connector
x1 ADI AD9208 Dual 14-bit ADC (footprint compatible with AD9689)
x1 ADI AD9172 Dual 16-bit DAC
x6 SSMC RF Connectors



Ordering information

- Part Number: HTG-FMC-14ADC-16DAC
- Price: Please contact us

12" SSMC To SMA Cable
24" SSMC To SMA Cable

ECCN #: EAR99
SCHEDULE B #:
8471601050
