FMC+ / FMC Loopback & Clock Generator Module



FMC+ (Vita57.4)                                             FMC (Vita57.1)

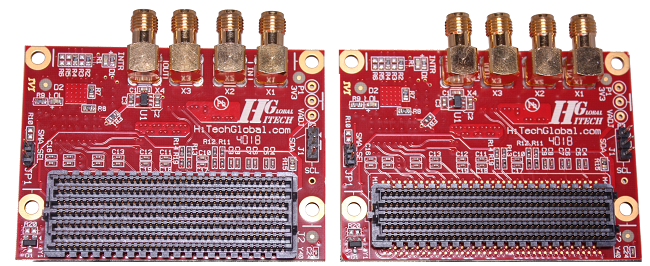

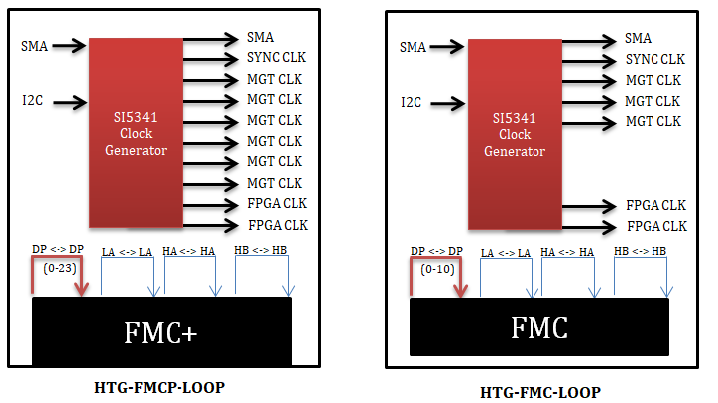

This Vita57.4 / 57.1 compliant FMC+/FMC module is designed for looping back serial transceivers and differential I/Os of FPGAs  under test. The module is powered by Silicon Labs' Si5341A programmable clock generator device for providing ultra-low-jitter clocks (90 fs rms) for FPGA's serial transceivers and fabric.

The module can also be used as clock generator supporting clock standards such a CML, HCSL, LVCMOS,  LVDS and  LVPECL with
maximum output frequency of 1028 MHz.

Features

Vita57.4 FMC+   or Vita57.1 FMC HPC Connector
x1 Si5341A Clock Generator
► x2 SMA for input clock
► x2 SMA for output clock




Ordering information

HTG-FMCP-LOOP (with FMC+ connector)
Price:  $395 [Buy Online]

HTG-FMC-LOOP (with FMC connector)
Price:
 $395 [Buy Online]

ECCN #: EAR99
SCHEDULE B #:
8471601050
