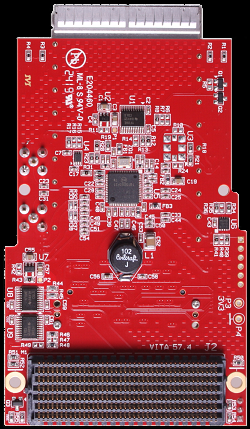

400GIG CFP8 (16x25G) FMC Module (Vita57.4)


The FMC-CFP8 module provides access to one  400GIG port through 16x25G (CDAUI-16) Serial Transceivers available on Vita57.4 compliant FPGA carrier boards. In compliance with the Vita57.4 specification, the serial transceivers are routed to DP0-DP15 ports of the FMC connector. The module is supported by an ultra low-jitter programmable clock generator providing the best level of performance and flexibility.

Features:

x1 CFP8 port (16x25G)
x4 external clock sources through an ultra low-jitter clock generator
x1 EEPROM
x1 FMC+ (Vita57.4) connector
Ordering information

Part Number:
HTG-FMC-CFP8 (Vita57.4 compliant)

ECCN #: EAR99
SCHEDULE B #:
8471601050
