X16 PCI Express Gen1/2/3/4 Root  FMC+ Module (Vita57.4)

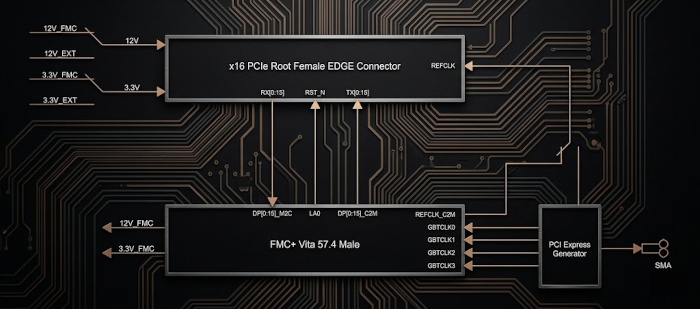

The FMCP  x16 PCI Express Gen 4 (also supporting Gen 3/2/1 ) is a FPGA Mezzanine Connector (FMC+) daughter card with support for 16 lanes of PCI Express Root Complex (interfacing to total of 16serial transceivers). Reference clock for the serial transceivers of the carrier board is provided through the module's ultra-low-jitter clock generator.

Features:

x16 PCI Express Root- Provides access to total of 16 FPGA's Serial Transceivers
Silicon Labs Low-jitter PCI Express clock generator
Additional 12V/3.3V external power supply sources
x1EEPROM
x1 FMC+ Connector (Vita57.4)
SMA for additional clock output
Ordering information

Part Number: HTG-FMCP-PCIE-X16
Price:
$845

[Buy online]

ECCN #: EAR99
SCHEDULE B #:
8471601050

Related Products:
12V / 8A AC to DC Wall Power Supply With 6-pin Molex PCI Express Connector
12V/8A Wall Power Supply
 [Buy Online]

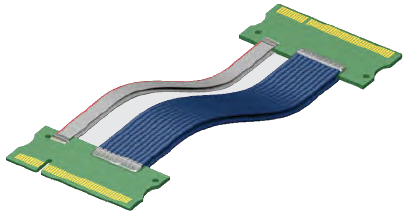

x8 PCIe Male-To-Male Cable

FMC-To-FMC Cable
