2-Port QSFP+ (40G or 56G) FMC Module (Vita57.1)


Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

This

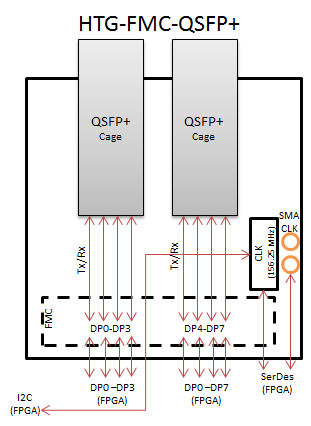

FMC module is supported by two QSFP/QSFP+ ports and high-performance low-jitter Silicon Labs programmable clock (default = 156.25Mhz). The I2C interface between the oscillator and FPGA allows direct control of the QSFP/QSFP+ ports for wide range of different frequencies. The QSFP/QSFP+ ports are directly connected to four multi-gigabit serial transceivers of  Vita 57 compliant carrier  FPGA boards.

Features:

x2 QSFP+ (2x40G) Connectors - or x8 SFP+  (8x10G) ports using the QSFP+ to SFP+ breakout cable
x1 programmable oscillator with start up frequency of 156.25MHz ( other frequencies are supported through the I2C and the host FPGA)
x1External differential clock SMA port
x1EEPROM
x1FMC Connector (direct interface to the FPGA)
Ordering information

-Part Number: HTG-FMC-X2QSFP+
- Price: $595

[Buy Online]


ECCN #: EAR99
SCHEDULE B #:
8471601050
