120G (12x10G) / 150G (12x12.5G)/ 100G (10x10G) CXP FMC+ Module (Vita57.4)


Vita 57.x provides a single mechanical  & electrical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via FPGA based mezzanine boards. Vita 57.x modules have fixed locations for serial/parallel I/Os, clocks, Jtag signals, VCC, and GND.

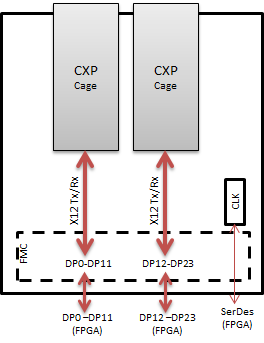

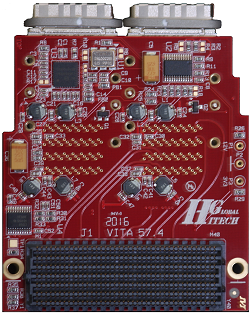

This FMC+ Module provides access to two CXP  ports for 12x10G , 12x12.5G, or 10x10G applications through 12 Tx/Rx  lines from FPGA carrier boards. The module is supported by an onboard programmable oscillator with default start up frequency of 156.25Mhz.


HiTech Global offers the following FPGA based boards with 10+ serial transceivers as the best host for the CXP module:

HTG-9100: Xilinx UltraScale Networking platform with one FMC+ connector providing access to 24 GTH serial transceivers
HTG-828: Xilinx UltraScale 100Gig Networking /x16 PCIE Express  platform with one FMC+ connector providing access to 24 GTH serial transceivers
HTG-830:  Xilinx UltraScale General Purpose FPGA development platform with two FMC+ connector

Features:

x2 CXP Connectors
156.25MHz crystal oscillator
►x1 EEPROM
FMC+ Connector (direct interface to the FPGA)
Ordering information

Part Number: HTG-FMC-X2CXP

Price:
$795[Buy Online]

ECCN #: EAR99
SCHEDULE B #:
8471601050

Accessories
CXP Transceiver Module

120-Gbps 12-channel CXP Pluggable Optical Transceiver Module (100GBASE-SR10)

Part Number: CXP-SR10
[Buy Online]

CXP Active Optic Cable (AOC)

12x 10.3125 Gbps CXP Active Optical Cable (AOC)

Part Number:  CXP-AOC-1M (1-Meter)  [Buy Online]
Part Number:  CXP-AOC-3M (3-Meter)  [Buy Online]
Part Number:  CXP-AOC-5M (5-Meter)  [Buy Online]
