FMC To FMC & FMC+ To FMC+ Cables

Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

The FMC to FMC cables are used for connecting two High Pin Count (HPC) or Low Pin Count (LPC) based carrier cards together.  They can also be used for extending connection of carrier boards to daughter cards. Available with 5" and 9" options, these cables provide access to the IO pins of each carrier card (power pins are not connected for the board-to-board cables)

FMC+ (Vita57.4) Cables:

Image Main Application I/O Types Length Ordering Part # Price (USD) How To Buy

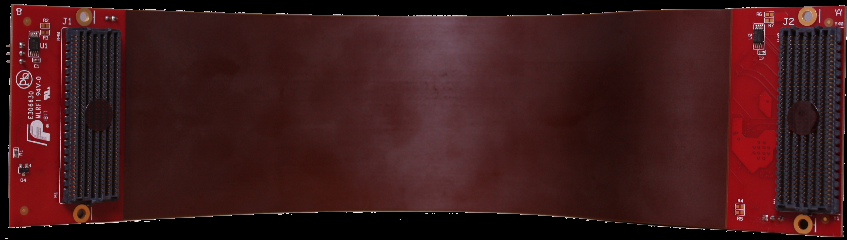

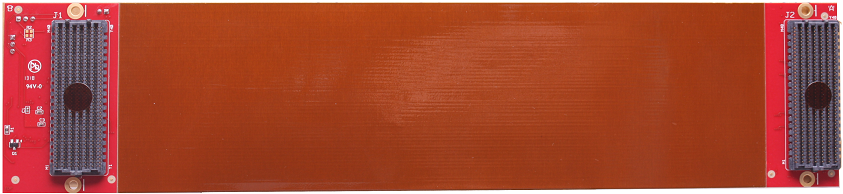

FPGA  Board To FPGA Board Connection 160 single-ended/ 80 differential I/Os & 24 Serial Transceivers (Tx <--> Rx)  with one integrated programmable clock generator.
x2  male FMC+ connectors (Vita 57.4)
9 "
(flex part)
FMCP-TO-FMCP-AL $795 [Buy Online]

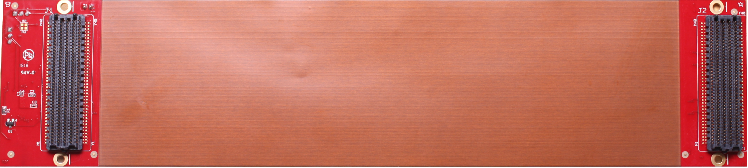

FPGA  Board To FPGA Board Connection 160 single-ended/ 80 differential I/Os & 10 Serial Transceivers (Tx <--> Rx)  with one integrated programmable clock generator.
x2  male FMC connectors (Vita57.1)
9 "
(flex part)
FMC-TO-FMC-AL $795 [Buy Online]

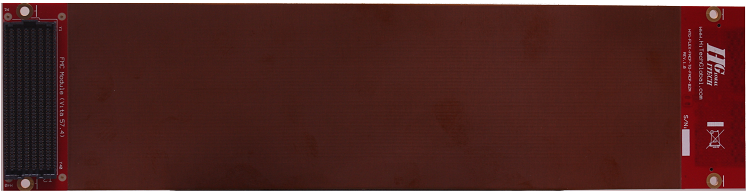

FPGA  Board To Daughter Card Connection 160 single-ended/ 80 differential I/Os & 24 Serial Transceivers
x1 male/x1 female FMC+ connectors (Vita 57.4)
9 "
(flex part)
FMCP-TO-FMCP-B2M $745 [Buy Online]
PGA  Board To Daughter Card Connection 160 single-ended/ 80 differential I/Os & 24 Serial Transceivers
x1 male/x1 female FMC+ connectors (Vita 57.4)
3 "
(flex part)
FMCP-TO-FMCP-B2M-3 $595 [Buy Online]

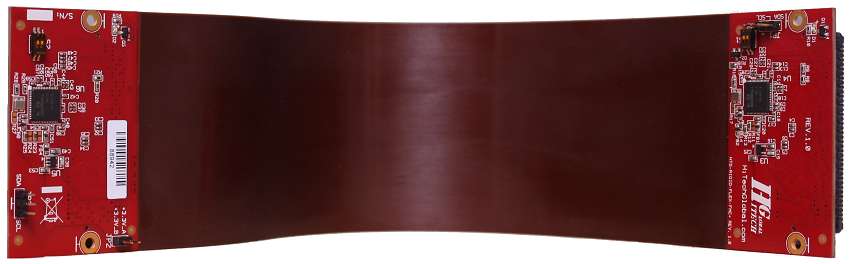

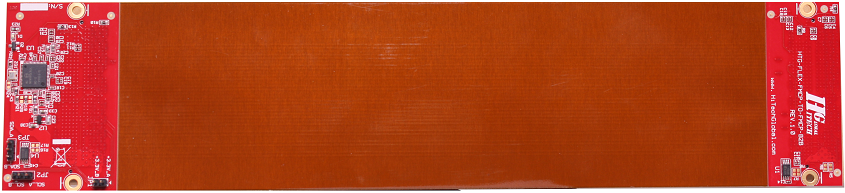

FPGA Board To Board Connection 24 Serial Transceivers
(Tx <--> Rx) with two integrated programmable clock generators (one on each side)
x2  male FMC+ connectors (Vita 57.4)
9 "
(flex part)
FMCP-TO-FMCP-TR $795 [Buy Online]

FMC (Vita57.1) Cables:

  Main Application I/O Types Length Ordering  Part Number Price (USD) How To Buy

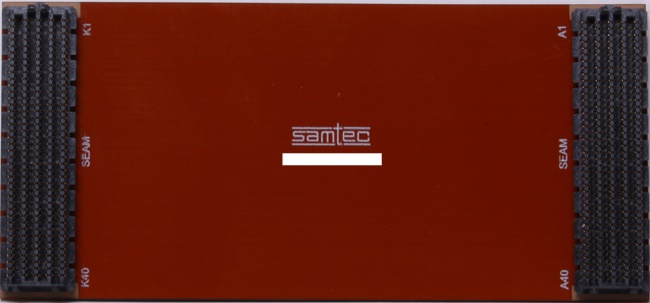

  Board To Board Connection (HPC) 160 single-ended/ 80 differential I/Os & 8 Serial Transceivers (Tx to Tx/Rx to Rx)
x2  male connectors (Vita 57.1)
9 " FMC-TO-FMC-9-88-88 $420 [Buy online]
  Board To Board Connection (HPC) 160 single-ended/ 80 differential I/Os & 8 Serial Transceivers (Tx toTx/Rx to Rx)
x2  male connectors (Vita 57.1)
5" FMC-TO-FMC-5-88-88 $395 [Buy online]
  Board To Board Connection (LPC) 64 single-ended/ 32 differential I/Os & 1 Serial Transceiver (Tx to /Rx to Rx)
x2  male connectors (Vita 57.1)
9" FMC-TO-FMC-9-04-04   Please contact us
  Board To Daughter Card Connection (HPC) 160 single-ended/ 80 differential I/Os & 8 Serial Transceivers
x1 male/x1 female connectors
(Vita 57.1)

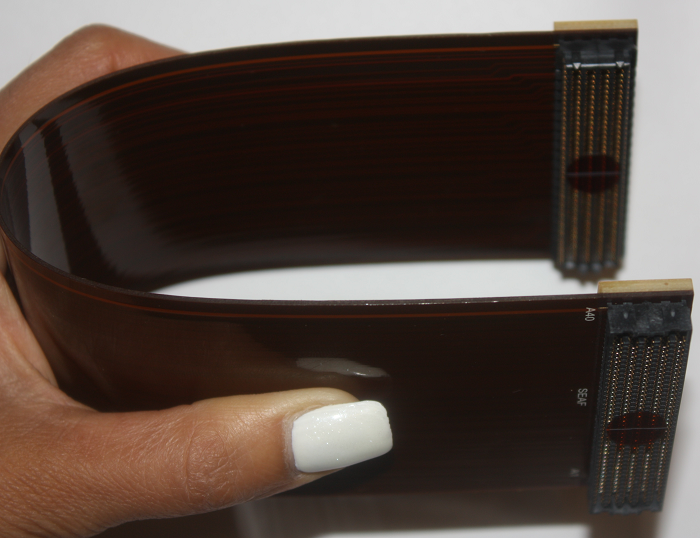

9" FMC-TO-FMC-9-88-86  $420 [Buy online]
  Board To Daughter Card Connection (HPC) 160 single-ended/ 80 differential I/Os & 8 Serial Transceivers
x1 male/x1 female connectors /opposite sides
(Vita 57.1)
9" FMC-TO-FMC-9-88-86-OS $480 [Buy online]
