Leap® On-Board Transceiver FMC+ Module (Vita57.4)


The FMC-LEAP is a Vita57.4 compliant FMC+ module supported by two  Amphenol/FCI 300Gig Leap® On-Board Transceiver ports and ultra low-jitter programmable clock generator. Each Leap on-board transceiver port is directly connected to 12 multi-gigabit serial transceivers (1.25Gb/s to 25.8Gb/s) of  Vita 57.4 compliant  FPGA carrier boards. Each port can also used for three 100G interfaces through MPO splitting cables.

Amphenol FCI’s 300Gb/s Leap® High-Speed Optical Module is faster, smaller, more cost and power efficient than most conventional datacenter interconnects.  The transceiver is capable of speeds up to 25Gb/s and distances up to 100m . The 300Gb/s total throughput requires only 1sq inch of board space and 5.4W of power.



  • 1” x 1” layout grid

  • Ethernet 100GBASE-SR4 compliance (per quad)

  • Ethernet CAUI-4 Compliance (per quad)

  • Data rate transparent from 1.25Gb/s to 25.8Gb/s

  • Enhanced Bit Error Rate (1e-12) requires no or limited FEC

  • Controllable clock and data recovery circuits

  • Programmable input equalization

  • Programmable output pre-emphasis

  • Two wire control and diagnostic interface

  • Low power consumption

  • Integrated heat sink design





  • Transceivers can be placed in 2-dimensional layout grid with 1” pitch between adjacent transceivers \

  • Uses 2.5x less board space than QSFP28 (12-channels)

  • Ethernet transmission distance up to 100m (multi mode fiber

  • Interoperable with other 100GBASE-SR4 compatible transceiver

  • Electrically compatible with 25Gb/s PHY ASICs

  • Easy to connect

  • Uses off-the-shelf MT optical interface

  • No through holes to connect transceiver – one side of board only

  • Allows for transceiver optimization and monitoring connection discovery, channel diagnostics, and signal status monitoring

  • Supports non-standard protocols in this range of datarates. Note CDR operational bit rate of 25-25.8Gb/s

  • Lower system latency and better system performance

  • Individual CDR circuits for each Transmit and Receive channel Each CDR can be independently turned on/off

  • CDR operational bit rate of 25-25.8Gb/s includes 25.78125Gb/s (100GbE)

  • 11dB of signal peaking at 12GHz allows for recovery of suboptimal signal condition

  • Compensates for PCB trace losses to ensure proper signal conditioning

  • Less than 3W (typ.) power consumption w/o CDR


Industrial & Instrumentation
Data Center (EDR Infiniband, 100Gbe SR4, SAS 4, PCIe Gen 4, 32GFC, Proprietary 25Gb/s Links)

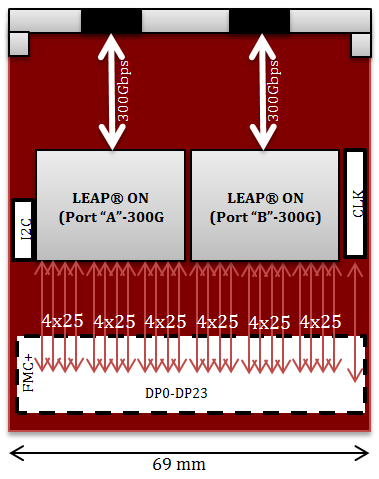

FMC Module's Features:

x2 Leap® On-Board Transceiver ports (300 Gbps or 3x100G per port)
Ultra low-jitter programmable clock generator (also supported by PIC processor for additional programming flexibility)
x1FMC+ Connector
Ordering information

- Part Number: HTG-FMC-600G (FMC daughter card)
- Price:  $795

- Part Number: 10124588-211 (Leap Transceiver with laser class B and Short height air cooled heat sink)

Kit Content:

-x1 FMC-LEAP module
