Dual M.2 (M Key) SSD FMC Module (Vita57.1)

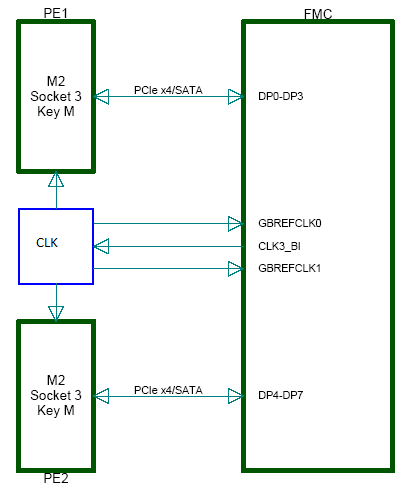

This Vita57.1 compliant FMC module is supported by two M.2 sockets (M Key) and low-jitter programmable clock generator. The module supports industry standard SSD modules with different density ranges. This module supports PCIe Gen4 interface.



Features:

x2 M.2 Sockets (M Key)
x1  PCIe Gen4 Jitter Attenuator / Clock
x1EEPROM
x1 Vita57.1 FMC Connector
Ordering information

-Part Number: HTG-FMC-M2X2

- Price: $595 [Buy Online] (SSD modules are not included)

ECCN #: EAR99
SCHEDULE B #:
8471601050
