PCI Express Root FMC Module

X8 PCI Express Root FMC Module

Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 based boards.

The FMC standard specifies Samtec’s SEARAY™ connector set. The VITA 57 SEAM/SEAF Series system provides up to 400 I/Os in a 40 x 10 configuration or 160 I/Os in a selectively loaded 40 x 10 configuration, in 8.5mm and 10mm stack heights.

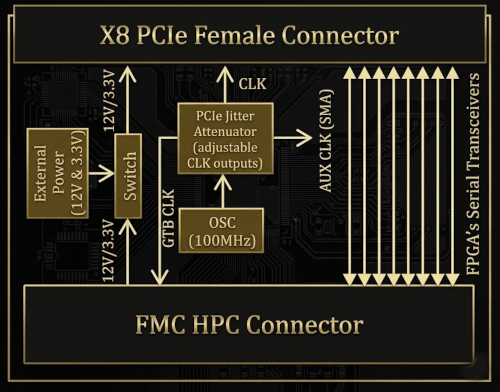

The FMC x8 PCI Express Gen 1/ Gen2 (HTG-FMC-PCIE-RC) is a FPGA Mezzanine Connector (FMC) daughter card with support for 8 lanes of PCI Express Root Complex (interfacing to total of 8 serial transceivers). Reference clock for the serial transceivers of the carrier board is provided through the module's super clock .

FPGA Boards with FMC Interface:

HTG-V6HXT-X16PCIE
(Xilinx Virtex-6 HXT)
HTG-V6HXT-X8-PCIE
(Xilinx Virtex-6 HXT)
HTG-V6-PCIE
(Xilinx Virtex-6)
HTG-S4GX-PCIE
(Altera Stratix IV GX/GT)
HTG-V6HXT-100GIG
(Xilinx Virtex-6 HXT)

HTG-V7-G3PCIE
(Xilinx Virtex-7)
HTG-V7-PCIE-2000T
(Xilinx Virtex-7)
HTG-S5-PCIE
(Altera Stratix V)
HTG-K7-PCIE
(Xilinx Kintex-7)
HTG-V7-PCIE-CXP
(Xilinx Virrtex-7)

Features:

► x8 PCI Express Root- Provides access to total of 8 Serial Transceivers
► Frequency Synthesizer (providing 100MHz - 250MHz clocking)
► Clock Buffer
► EEPROM
► FMC Connector

Ordering information

Part Number: HTG-FMC-PCIE-RC
Price: $695

[Buy online]
