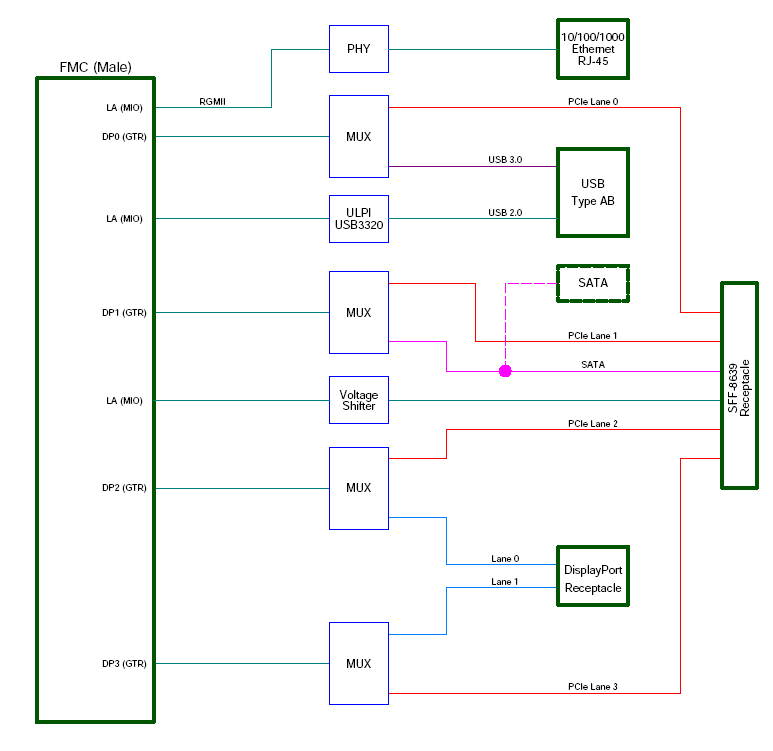

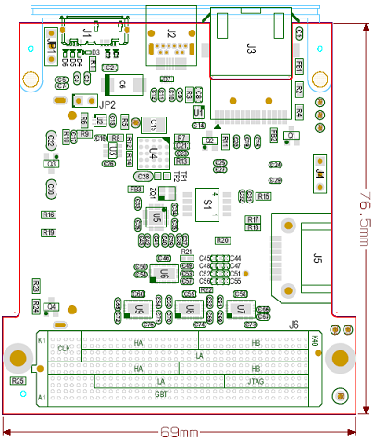

U.2 (SFF-8639 ) / Display Port / SATA / USB / Ethernet FMC Module (Vita57.1)

J1: USB 3.0 Micro Receptacle, Type AB (Connected to GTR transceiver for USB 3.0 and USB3320C-EZK for USB 2.0)
J2: Mini Display Port (connected to GTR transceivers )
J3: RJ45 (connected to TI DP83867IR PHY)
J5: SATA (connected to GTR transceiver )

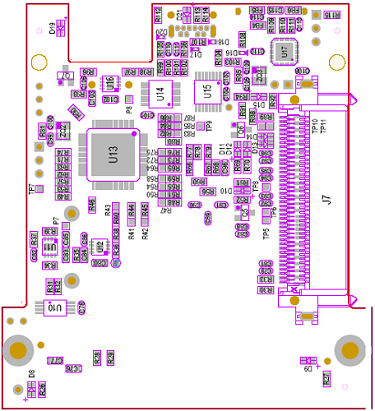

J7: SFF-8639 Receptacle
U15: 10/100/1000 Mbps Ethernet PHY
U17: USB 2.0 PHY

Features:

►x1 U.2 (SFF-8639) Connector with SATA and PCIe Ports
►x1 Display Receptacle Port
►x1 SATA Port
►x1 USB Type AB port
►x1 10/100/1000 Ethernet Port (RGMII)

Ordering information

-Part Number: HTG-FMC-SFF-8639
- Price: $895 [Buy Online]

ECCN #: EAR99
SCHEDULE B #: 8471601050
