SFP+ FMC Module

Dual SFP+ FMC Module

Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 based boards.

The FMC standard specifies Samtec’s SEARAY™ connector set. The VITA 57 SEAM/SEAF Series system provides up to 400 I/Os in a 40 x 10 configuration or 160 I/Os in a selectively loaded 40 x 10 configuration, in 8.5mm and 10mm stack heights.

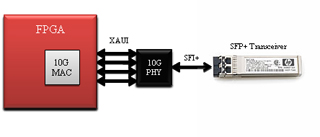

FPGA To FMC Interface

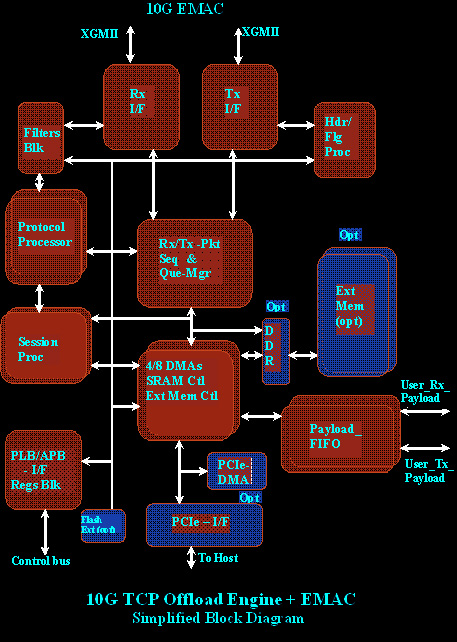

The 10G TOE + 10G MAC IP cores shown by the below block diagram are available for evaluation and licensing. The evaluation package is available with the HTG-V6-PCIE-L240 board and HTG-FMC-SFP-PLUS module.

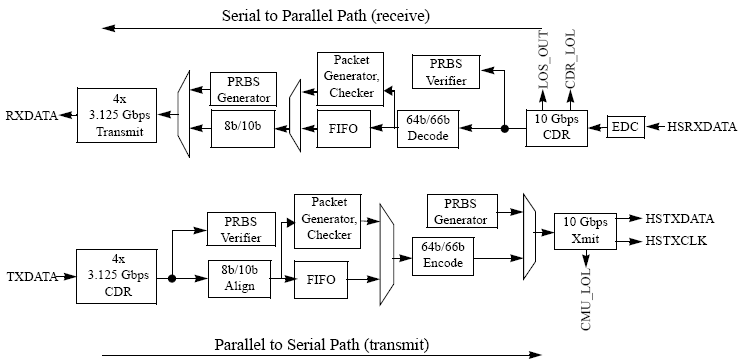

The dual FMC SFP+ is a FPGA Mezzanine Connector (FMC) daughter card with two SFP+ connectors, two 10Gbps physical layer transceiver which provide full PCS, PMA, and XGXS sub-layer functionality, on board clock, and FMC connector for interfacing (XAUI) with any Vita57 compliant carrier card including the following boards:

HTG-V6HXT-X16PCIE
(Xilinx Virtex-6 HXT)

HTG-V6HXT-X8-PCIE
(Xilinx Virtex-6 HXT)

HTG-V6-PCIE
(Xilinx Virtex-6)

HTG-S4GX-PCIE
(Altera Stratix IV GX/GT)

HTG-V6HXT-100GIG
(Xilinx Virtex-6 HXT)

Features:

► x2 SFP+ Connectors - Supporting 1Gbps or 10Gbps data rates
► EEPROMs
► FMC Connector
► On-board 156.25Mhz and 125Mhz clocks
►XAUI interface to carrier card's FPGA

Ordering information

►Part Number: HTG-FMC-SFP-PLUS
►Price: $965

[Buy Online]

Accessories:

►HP ProCurve 1m Direct Attach Loopback Cable with 10G SFP+ connection ►Part Number: HP-J9281B ►Price: $195

Other FMC Modules & FPGA Carrier Boards

Picture/Block Diagram	Description
	OBSAI/CPRI FMC Module (with two SFP+ & one QSFP+) - with clock flexibility supporting other serial protocols and standards. FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with x8 SMA & x33 LVDS (headers) FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with one CX4, two SATA, and two SMA ports (interfacing to total of 8 serial transceivers). Each port has its own on-board dedicated clock for maximum flexibility and ease of use. FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with two CX4 connectors providing access to two 10Gig ports FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with x8 PCI Express Root FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with 32 SMA connecters providing access to 8 Serial Transceivers FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More Info..
	FMC daughter card with four SFP and four SATA connectors FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More Info..
	16-bit Dual Channel DA/AD Conversion Module (Vita 57 compliant) FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
