8-port SMA / 33 pairs LVDS FMC Module

8-Port SMA /34 Pairs LVDS FMC Module

Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 based boards.

The FMC standard specifies Samtec’s SEARAY™ connector set. The VITA 57 SEAM/SEAF Series system provides up to 400 I/Os in a 40 x 10 configuration or 160 I/Os in a selectively loaded 40 x 10 configuration, in 8.5mm and 10mm stack heights.

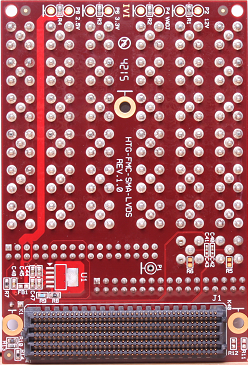

The FMC SMA/LVDSt (HTG-FMC-SMA-LVDS) is a single-size FPGA Mezzanine Connector (FMC) daughter card with support for 8 SMA ports through 32 SMA connectors and 33 pairs of LVDS signals through standard pin headers.

FPGA Boards with FMC Interface:

HTG-V6HXT-X16PCIE
(Xilinx Virtex-6 HXT)
HTG-V6HXT-X8-PCIE
(Xilinx Virtex-6 HXT)
HTG-V6-PCIE
(Xilinx Virtex-6)
HTG-S4GX-PCIE
(Altera Stratix IV GX/GT)
HTG-V6HXT-100GIG
(Xilinx Virtex-6 HXT)

HTG-V7-G3PCIE
(Xilinx Virtex-7)
HTG-V7-PCIE-2000T
(Xilinx Virtex-7)
HTG-S5-PCIE
(Altera Stratix V)
HTG-K7-PCIE
(Xilinx Kintex-7)

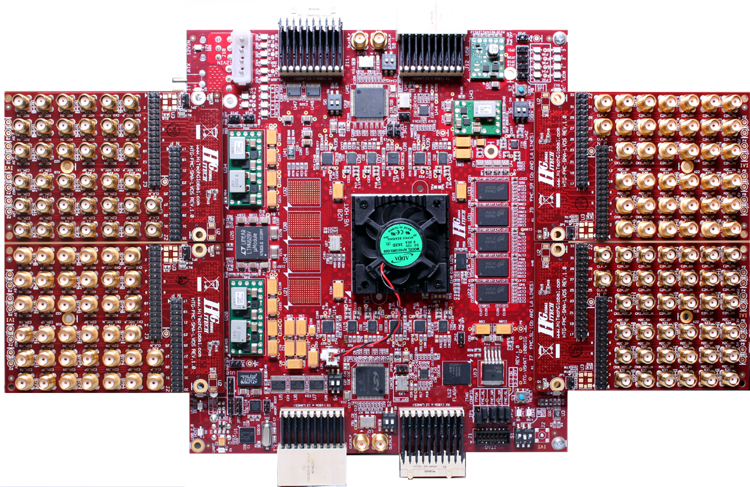

Example Interface:

Features:

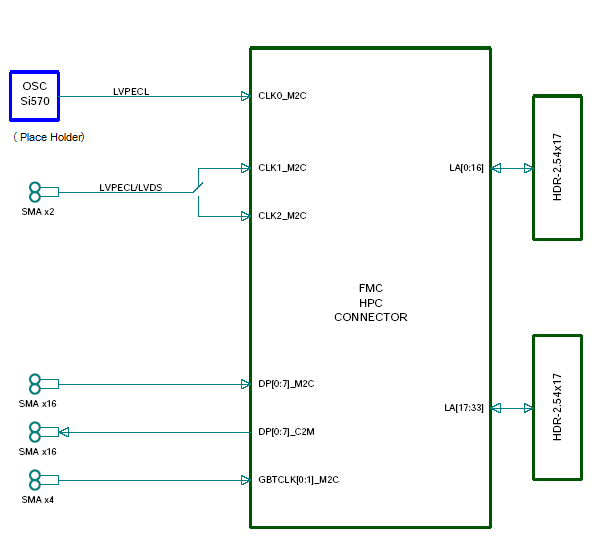

► x32 SMA FMC Module- Provides access to total of 8 Serial Transceiver Ports
► SMA connectors for external differential clocks
►Pin headers for 34 pairs of LVDS signals (FMC LA0 to LA33)
► on-board clock
► EEPROM
► FMC Connector

Ordering information

Part Number: HTG-FMC-SMA-LVDS
Price: $595

[Buy online]

Accessories

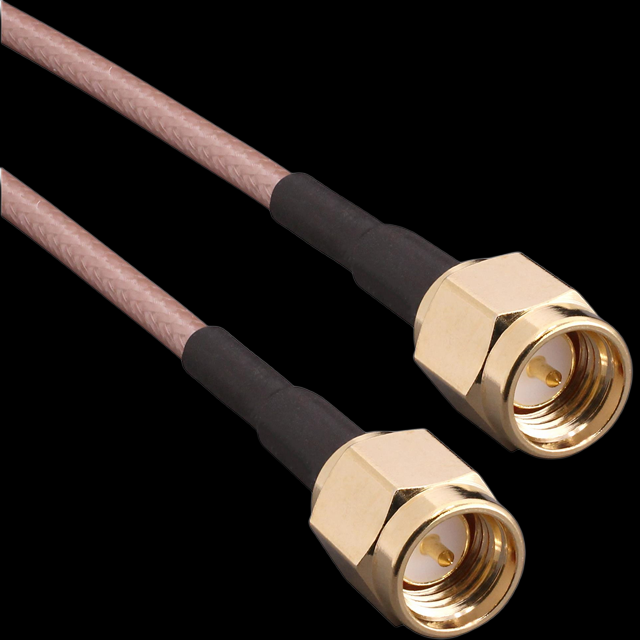

SMA to SMA Cable
Impedance: 50Ω
Capacitance: 96.432pF/meter
Propagation Delay:4.83 nsec/meter
Max Attenuation: 1.25dB @ 1GHz for 1 meter
Conductor Size: 26 AWG, (0,51mm) .020" dia.
Conductor Material: Silver Plated Copper
Conductor Resistance:0.13Ω/meter max
Current Rating: 5A DC
Insulator Material: PTFE
Dielectric Constant: 2.1dK
Shield Material: Silver Plated Copper Clad Steel
Jacket Material: FEP
Jacket Diameter:(2,54mm) .100"
Manufacturer: Samtec

Ordering information:

24" Option:
Part Number: SMA-2-SMA-24
Price: $14.95
[Buy Online]

12" Option:
Part Number: SMA-2-SMA-12
Price: $12.95
[Buy Online]

Other FMC Modules & FPGA Carrier Boards

Picture/Block Diagram	Description
	OBSAI/CPRI FMC Module (with two SFP+ & one QSFP+) - with clock flexibility supporting other serial protocols and standards. FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with one CX4, two SATA, and two SMA ports (interfacing to total of 8 serial transceivers). Each port has its own on-board dedicated clock for maximum flexibility and ease of use. FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with two SFP+ ports (10Gbps) interfacing to total of 8 serial transceivers (XUAI) FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with two CX4 connectors providing access to two 10Gig ports FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with x8 PCI Express Root FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
	FMC daughter card with 32 SMA connecters providing access to 8 Serial Transceivers FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More Info..
	FMC daughter card with four SFP and four SATA connectors FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More Info..
	16-bit Dual Channel DA/AD Conversion Module (Vita 57 compliant) FPGA Carrier Boards: HTG-V6HXT-100GIG (Xilinx Virtex-6 HXT), HTG-V6HXT-X16PCIE (Xilinx Virtex-6 HXT) HTG-V6HXT-X8-PCIE (Xilinx Virtex-6 HXT), HTG-V6-PCIE (Xilinx Virtex-6), HTG-S4GX-PCIE (Altera Stratix IV GX/GT) More info..
