90-Degree Edge Mount QSFP28 / GPIO  FMC Module (Vita57.1)

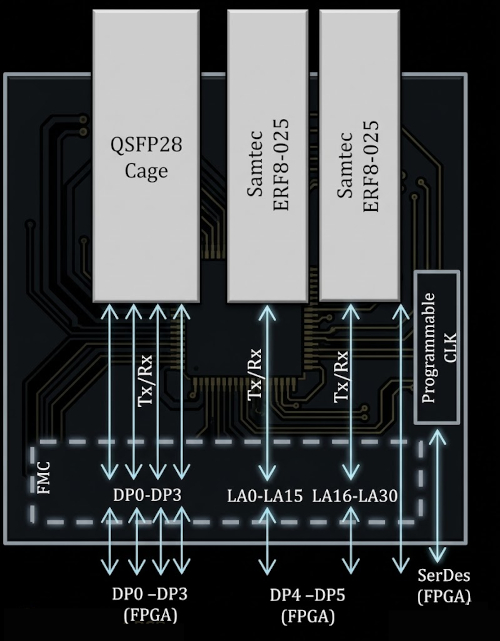

This Vita57.1 electrically-compliant FMC module is supported by one QSFP28 (100G) port, two Samtec ERF8-25 GPIO connectors and programmable clock. The mechanical design of the module allows it usage with standard PCI Express boards and 4U chassis with closed lids.



Features:

x1 QSFP28 (100G) / QSFP+ (40G/56G) Connector
x2 Samtec EFR8-28 connectors supporting  31 LVDS pairs and one external clock
x1 programmable oscillator
x1 EEPROM
x1 FMC Connector
Ordering information

-Part Number: HTG-FMC-QSFP28-DEG90
- Price: $795
[Buy Online]

ECCN #: EAR99
SCHEDULE B #:
8471601050

Samtec Mating Cable for the ERF8 connectors (ERDP series)
