4-Port SATA / 4-Port SFP+ FMC Module (Vita57.1)


Vita 57 provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured via mezzanine boards. Vita 57 modules have fixed locations for serial/parallel IOs, clocks, Jtag signals, VCC, and GND. HiTech Global's Vita 57 modules can be plugged into any Vita 57 compliant carrier boards.

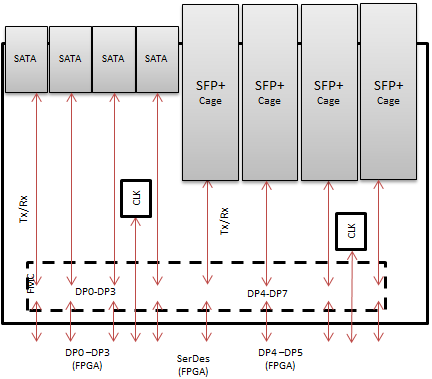

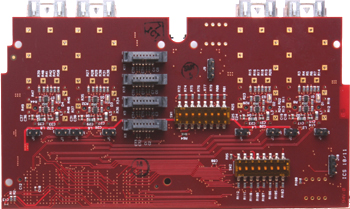

The FMC SFP/SATA Module (HTG-FMC-4SFP-4SATA) is a double-size FPGA Mezzanine Connector (FMC) daughter card with four SFP/SFP+ and four SATA ports (interfacing to total of 8 serial transceivers). The SFP+ and SATA ports have their own on-board dedicated clock for maximum flexibility and ease of use.

Features:

x4 SFP Connectors
x4 SATA Connectors
x2 Frequency Synthesizer
3 different Clock sources (one programmable with I2C interface)
x2 Clock Buffer
x1 EEPROM
x1 FMC Connector
Ordering information

Part Number: HTG-FMC-4SFP-4SATA
Price:
$725

[Buy online]

ECCN #: EAR99
SCHEDULE B #:
8471601050
