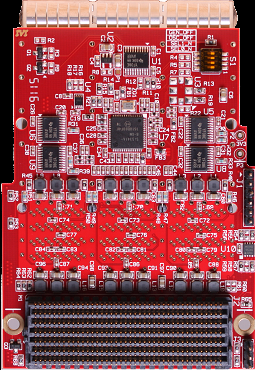

This Vita57.4 compliant FMC+ module is supported by six QSFP28 (100G) or six QSFP+ (40G/56G) ports and low-jitter programmable clock generator. The device registers and EEPROM settings are fully programmable in-system via I²C serial interface for easy generation of other industry standard or custom clocks. The I2C bus can be controlled either by host FPGAs or the on board PIC processor.

Each  QSFP28 /QSFP+ port is directly connected to four multi-gigabit serial transceivers of  Vita 57 compliant  FPGA carrier boards.
