HT-8000 : HyperTransport Validation Platform

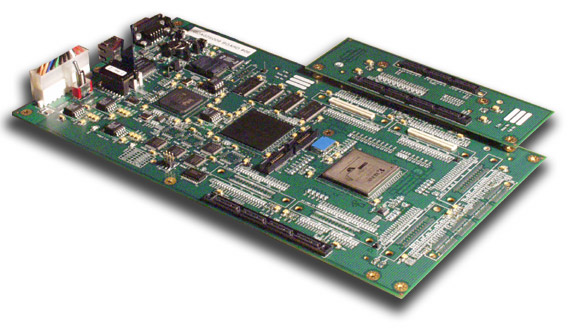

HT8000 HyperTransport evaluation platform is a high density, high performance, FPGA based test platform designed to validate HyperTransport cores. This rich feature set platform has a Virtex II FPGA from Xilinx and provides two 16 -bit HyperTransport Interfaces to allow testing of host, tunnel or cave based HyperTransport configurations. The platform also provides a 16-bit SPI4 and Gigabit Ethernet interface extending its use to validate cores that bridge HyperTransport, SPI-4 and Gigabit Ethernet technologies.

The HT8000 provides for easy configuration of the FPGA either through a JTAG connector with a mutiLINX cable and Xilinx programming software or through an EEPROM.

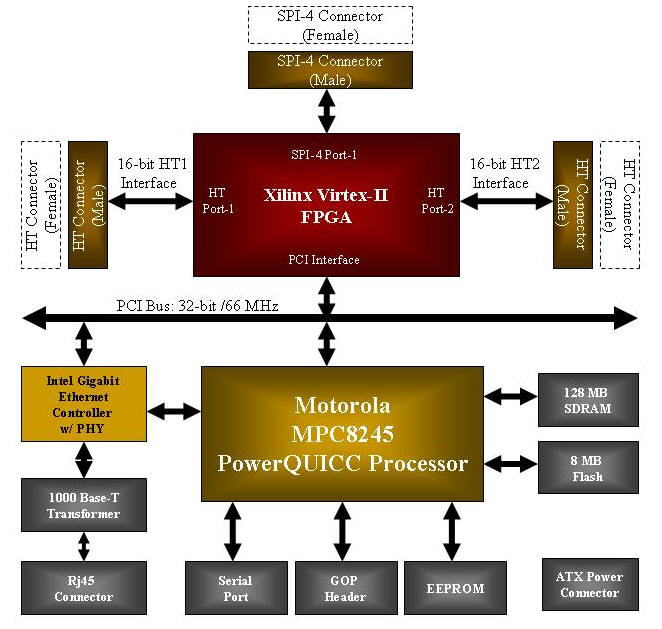

The management portion includes a CPU subsystem using MPC8245 PowerQUICC II processor from Motorola supported by 8MB Flash Memory and 128 MB SDRAM. There is a serial port available on-board to facilitate debug activity.

The platform is equipped with high speed male and female connectors from Samtec (QSE and QTE connectors ), that are compliant with the HyperTransport Consortium connector definition. This design allows the user to stack multiple HT8000 units or other compatible devices thereby facilitating a variety of test configurations. On board debug headers provide connection to HyperTransport Analyzer from FuturePlus.

There is an ATX power input connector on board to support HT8000 in stand alone mode. Alternately, power can be drawn from the HyperTransport connector.

The platform supports Xilinx Virtex II devices ranging from 4 million-gate to 8 million-gate FPGAs. The HT8000 is available with Embedded Linux.

Features:

* Supports Xilinx FPGA's XC2V4000, XC2V6000 and XC2V8000
* Two 16-bit HyperTransport link connectors
* Each link provides two connectors placed back to back on the board
* Connector interface complaint to HT_DUT_V14 document from Hypertransport consortium
* One interface compliant to SPI4.2
* MPC8245 running at 300MHz
* 128 MB on board SDRAM @ 133MHz operation
* Two 8MB Intel strata flash
* 32-Bit PCI interface running @ 66MHz
* Intel 82544EI Ethernet Controller with integrated PHY to provide 10/100/1000Mbps Ethernet Port
* One Serial port
* 256Kb of Serial EEPROM on I2C bus interface
* Mictor headers provided for PCI and Boot ROM signals
* 16-pin COP Header for CPU
* Four 80-Pin Robinson Nugent test Connector for Hyper Transport Signals
* Standard off the shelf available ATX Power supply
* Embedded Linux
