8/16-bit Microcontroller IP Core

This is a small, easy to use microcontroller core targeted for working as an embedded processor in different applications. It has a rich variety of commands which mostly require 1 CPU clock for execution. MCU operates with 8 and 16 bit data. Executable program and data share the same memory space. Maximal addressing range is 64 Kbytes. MCU has an additional 256-bytes IO space, which allows mapping different periphery.

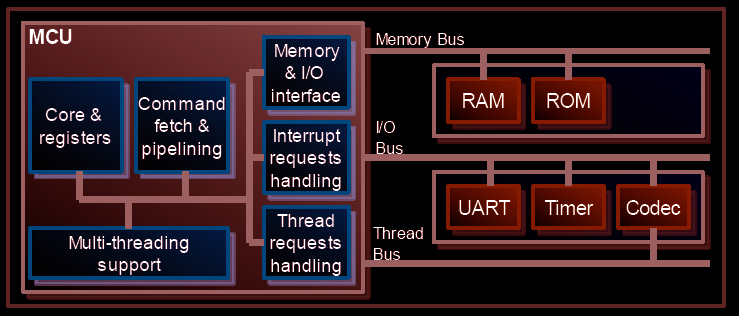

Simplified Block Diagram

Main Features:

•8 and 16 bit operations
•64 Kbytes memory space and 256 bytes I/O space
•Command pipelining with 1 CPU clock of execution for most commands
•Native multi threading support
•Effective Interrupt Requests handling
•Thread execution requests handling mechanism. External periphery can request the attention of the MCU when execution is needed. All other time MCU can stay in sleep mode, minimizing a consumption.
• IDE with integrated Linker and Assembler

Software Development Tools

Software development includes IDE with integrated assembler and linker. System requirements: OS Windows XP or Windows Vista

Design Features:

•Technology Independent
•Layered architecture
•Fully Synchronous Design with no Latches
•Highly Modular Design with clearly defined interfaces
•Scan friendly RTL
•Consistent coding procedures

Applications:

•Communications
•Data codecs
• Real-time control
• Low power applications
• Smart DMA Controller. This MCU controller can be used as a communication co-processor to decode and encode data stream and take/store data to the system memory of your system. Use your favorite MCU as an application MCU and our MCU as a “Smart DMA”.
• Multi-Thread applications.

Typical System

Deliverables:

•Fully synthesizable Verilog HDL or FPGA synthesized Netlist
•Verilog test environment
•User Manual
•Example Synthesis scripts
•3 months free email support

Size & Speed:

Price:
