DMA Module IP Core
Overview:

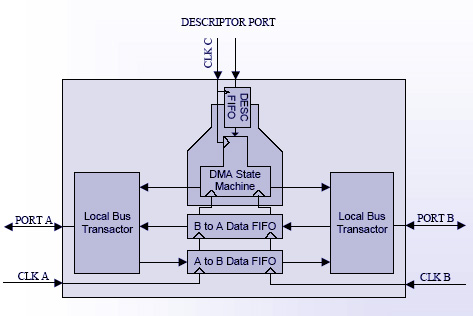

DMA Module implements a high-throughput link between its two data
interfaces (Port A and Port B). The third port, the Descriptor Port,
controls the movement of data between the two data ports and supports
the queuing of multiple transaction requests (DMA chaining) in order to
maximize efficiency.
The DMA Module supports up to three clock domains (one for each port)
and performs all necessary clock synchronization. These clocks can have
any frequency and phase relationship. These clocks can also be tied
together reduce the number of clocks.
The DMA module does not contain any interface-specific code. The DMA
Module wrappers is provided to connect the
DMA Module to other IP cores
including its PCI and Memory Controller Cores.
Product Highlights
• Connects two devices for high throughput, autonomous transfer
• Easy to Use
• Supports queuing multiple DMA transactions (DMA chaining)
• Separate Descriptor Port allows either Data Port or a third port to
control the DMA operation
• Data Port accepts/provides data under control of user logic
• Data Port supports fast and slow, burst and non-burst transfers
• Separate clock inputs for each of the three ports
• Provided with a comprehensive Validation Suite
• Source code available
• Customization & Integration services available
IP Core Deliverables:
· Core (Netlist or Source Code)
· Comprehensive Verification Suite (Source Code)
· Complete Documentation
· Expert Technical Support & Maintenance Updates
