HyperTransport Host IP Core

Hyper Transport Host IP Core

Overview:
HyperTransport technology is a high-speed, low-latency, point-to-point link for interconnecting integrated circuits (ICs) on a board. Hyper Transport is a packet based link implemented on two independent unidirectional sets of wires. HyperTransport Host is the root of the HyperTransport fabric.

The HyperTransport Host core is designed for reuse and its flexible backend interface makes it easy to be integrated into wide range of applications. The core provides highly scalable bandwidth through programmable link widths and frequencies.
HyperTransport Host core meets today's demand for the increased bandwidth and offers more bandwidth than any existing solutions. The core could be run 24 times faster than a 32 bit, 33 MHz PCI bus. The core is designed to operate the link at up to 1200 MHz DDR, yielding an effective transfer rate of 2.4 Gbits per second per wire pair. The design targets networking,
telecommunications, embedded systems and any application where high speed, low latency response, low pin counts and scalability are necessary.

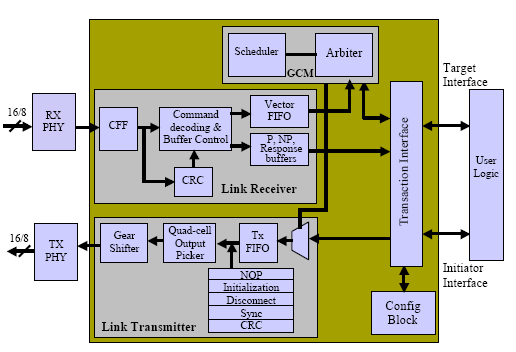

Main Features:

Compliant with HyperTransport I/O Link Specification, Rev. 1.1
Can be hardware configured for 16-bit or 8-bit link interface
Supports software programmable link widths of 16, 8, 4 or 2 bits
Supports 1200, 1000, 800, 600, 500, 400, or 200 MHz link frequency
Maximum bandwidth is 9.6 GB/sec
Optional transaction interface provides target and initiator interfaces
Supports host reflected peer-to-peer transactions
Supports greater concurrency using unitID clumping
Supports 16 streaming virtual channels
Supports error handling through retry mechanism
Supports 64 bit addressing
Backward compatible with all previous revisions of HyperTransport
Supports link disconnect protocol
Supports reset generation and interrupt
Supports external and internal loop backs

Configurable Options Link Widths: 16/8 bits Data path widths: 64/128 Back-end interface can be configured to transaction interface Transaction interface can be configured to support target interface only Configurable buffer size for each virtual channel	Design Attributes Highly modular design Fully synchronous, technology-independent design 128-bit wide internal data path Most part of the Cave logic operates at 200 MHz core clock or more Clearly demarked clock domains Active-low asynchronous reset
Product Package RTL code Detailed design document Verification environment Test cases Synthesis environment/scripts	Documentation Design guide. Verification guide Synthesis guide User guide.
Availability: Now Language: Verilog HDL Synthesis: Design Compiler Simulation: Verilog-XL/NC , VCS Technology: 0.13u Standard Cell Price:

Tel:+ 1 408 781-8043 Fax: + 1 408 268-4173 Email: info@hitechglobal.com
