SD/SDIO/MMC Host Controller IP Core (ASIC
and FPGA)
A complete, easy to integrate and cost-effective IP core
featuring SD/SDIO/MMC Host Controller Interface, for SoC/PDA applications
that connect to SD/MMC memory cards and SDIO/combo devices such as
Bluetooth device.
The SD/SDIO/MMC Host IP Core
introduces a dual clock domain, fully synchronized host adapter with
portable WISHBONE slave and master back-end interface which can be
easily adapted to AHB/OPB/PLB/AVALON or any custom bus using one of
ASICS.ws Wishbone bridges. The front end implements SD specification
rev1.10, SDIO specification rev1.0 and MMC specification rev4.0. SD/MMC
1 bit and 4 bit protocols are supported, as well SPI protocol. The core
is capable of automatically identifying SD, SDIO and MMC devices in both
SD/MMC or SPI mode. Several slave access modes are supported;
memory-mapped write and read, command port and core configuration port.
The SD / SDIO / MMC IP Core core provides a wide range of control and status registers. The
cores' DMA engine is capable of performing any write/read, command and
configuration tasks while accessing host memory through the WISHBONE
master interface.
Main Features:
- Compliant with SD Host
Controller Spec version 2.0
- Supports CE-ATA
- Supports SD 1-bit and 4-bit modes, as well as SPI mode
- Compatible to Multi Media Card (MMC) spec version 4.0 and older
- Provides memory-mapped and i/o access to SD/MMC cards through a
Wishbone slave adapter
- Read cache with variable physical size and configurable page size
to boost-up card read access performance.
- Interrupt-on-completion handshake eliminates host resources utilization
during read operations
- Write FIFO with variable size and configurable thresholds to enable
non-blocking operations and prevent back-pressure propagation from
card to host
- Supports posted write operations
- Supports SDIO IRQ signaling
- Implements multi-block read and write commands with internal STOP
command generation (CMD12) for enhanced throughput
- Supports any data block length
- Supports fast and slow SD cards. SD clock frequency: 0-50+MHz
- Supports hot card insertion and removal
- SD/SDIO/MMC/SPI identification flow implemented by hardware
- Provides command port interface for direct access to the SD/MMC devices
and for I/O access to SDIO devices
- Features zero-wait-states on SD bus
- Wide range of configuration options to fine-tune
the core according to the system specifications and demands
- Wide range of mask able interrupt events, such as card detection, block
transfer termination, command completion, error detection end many more
- Internal implementation of CRC16 for data lines and CRC7 for command
line
- Customer specified bus interface
- No dedicated local memory required
- Compact and cost-effective solution for SoC and PDA
- Slave System Interface:
- WISHBONE, CoreConnect, AMBA, and AVALON


The SD/SDIO/MMC IP Core can be smoothly integrated to any host
system using one of the slave interfaces listed above. Mapping the card
memory on the system bus address space dramatically reduces the overhead
of firmware and software development required for embedding the core. The
implementation of retry and interrupt-on- completion mechanism minimizes
the utilization of system resources, such as bus or CPU cycles. These key
features speed up the time-to-market, making the core a real
cost-effective solution for SoC and PDA developers.
Architecture:
The core can be divided into 3 main functions: command/write channel, read
channel and configuration and management channel. The command/write path
consists of a command builder, command/write FIFO, CRC generation,
completion and interrupt handling. The read path contains a read cache
with a configurable page size and up to 8 valid pages in cache. It also
consists of
CRC checking and error handling logics. The configuration and management
channel provides access to the core control and status registers. The core
also provides the host with clock control interface and LED outputs.
SD/MMC Host Physical Layer Interface
The core front-end supports SD protocol in 1bit and 4bit modes, MMC
protocol and SPI. Its' functional blocks include command execution and
response interpretation, data write and read FSM, CRC generators, SD/MMC/SPI
identification,
interrupting the host upon events such as card insertion/removal,
completion of command execution, completion of page update in the cache,
error detection and more. Reliability is achieved through completion and
error indications.
Host Bus Interface
A SD/MMC card is mapped on the host address space, such that the
implementation is virtually transparent to the host. Write data is
gathered and packed into write blocks. Read access may be followed by
immediate data if the address is valid in
the read cache (cache-hit), or it may initiate a data page replacement if
the address is not valid in the cache (cache-miss).
Internal Buffers
The SD/MMC Host IP Core deploys two buffering entities: command/write FIFO
and read cache. The core can be provided with a variety of buffering
space, e.g. 512 byte, 1K byte, 2K byte or 4K byte. Moreover, buffering
space can be assigned optimally according to system demands. E.g.,
applications designed solely for read-only cards may have the majority of
buffer space allocated to their read cache and minimal buffer space
allocated to their write FIFO, whereas applications designed for writing
and reading data may have a balanced buffer allocation. SDIO applications
that don't require memory access
support may use minimal buffering for both read and write path, thereby
reducing the overall SoC area.
Size & Speed:
|
Technology |
Gate
Count |
Operating Frequency |
| Xilinx Virtex-II 1000 |
3000 Slices, 3 BRAMs |
100 MHz Wishbone, 50MHz SD/MMC Card |
| UMC 0.18 um |
17K |
200 MHz Wishbone, 50MHz SD/MMC Card |
IP Core Price:

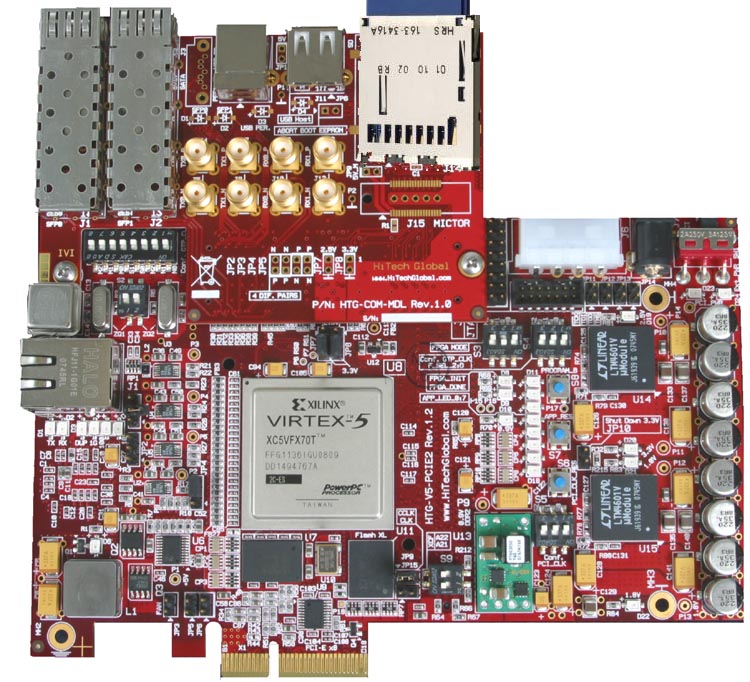

Evaluation Daughter Card:
A P160 based daughter card with SD and USB 2.0 is
available for evaluation of SDIO and USB 2.0 Core.
Part Number: HTG-V4P-SDIO

|











|
