SPDIF-AES/EBU to I2S Converter IP Core

Overview:

The CWda03 is a digital audio receiver IP core implementing the SPDIF, AES/EBU, AES3 or IEC60958 standards. The CWda03 inputs an SPDIF signal and samples it with a fast clock to extract the clock, audio and control data from it. It outputs PCM audio data in the well known I2S format, popular in many data converters.

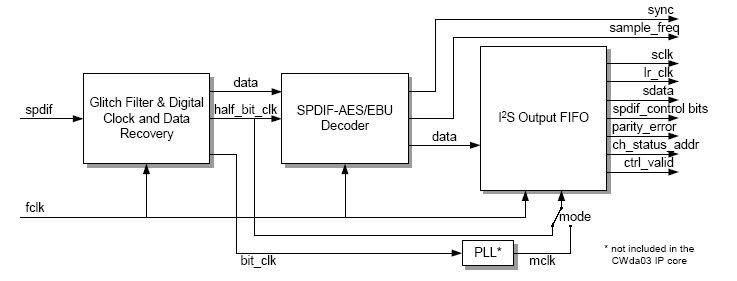

Functional Description:

Glitch Filter & Digital Data and Clock Recovery:
filters glitches due to slow transitions in the SPDIF-AES/EBU signal; clock and data recovery based on fast sampling and edge detection.

SPDIF-AES/EBU Decoder: decodes the SPDIF-AES/EBU signal according to the IEC60958, AES3 or AES/EBU standards.

I2S Output FIFO: converts LSB-first serial data to the MSB-first I2S format. When mode=0, an external PLL circuit must be used to filter the jitter out of the recovered clock. The jitter-free clock is used to retrieve the data signal from a shallow output FIFO. When mode=1, the PLL circuit is not necessary, but the output data contains jitter.

Key Features:

Supports the following standards: IEC60598 (SPDIF), AES3, AES/EBU
Uses a fixed clock frequency, unrelated to the sample frequency
Supports sample rates up to frequency fclk/512 (192KHz for fclk ≥ 98MHz)
Supports up to 24 bits per sample
Extracts the control bits from the incoming bitstream
Reports input sample rate
Lock time less than 3 frames
Purely digital receiver
Two modes of operation: with or without external PLL (jitter attenuation of the output clock preformed in the first mode only)
Low power mode when idle

Benefits:
Completely digital receiver. No need to use input PLL for synchronization.

Applications:
Digital audio (CD, SACD, DVD-Audio), or multimedia systems. (VCD, SVCD, DVD, etc.).

Deliverables:

  • Detailed datasheet and user documentation for system integration.
  • HDL testbench covering all functionalities of the core and including automatic verification of the correctness of the responses.
  • Options:
    o FPGA Netlist
    o HDL (VHDL or VERILOG) source code.
    o Simulation script.
    o Synthesis and/or place and route scripts.
    o Prototyping boards.

Part Number: CWda03

Price: Quote Me

How To Purchase:



  Implementation Results:


Family

 Example Device

Fmax (MHz)

Slices

IOB

 GCLK

 BRAM

Design Tools

 Spartan-IIE

 XC2S50E-6

87

234

26

1

0

ISE 6.3.03i

 Spartan-3

 XC3S50-4

129

231

27

1

0

ISE 6.3.03i

 Virtex-II Pro

 XC2VP2-5

165

228

27

1

0

ISE 6.3.03i

 Virtex-II

 XC2V40-4

153

230

27

1

0

ISE 6.3.03i

 Virtex-4

 XC4Vfx12-10

180

230

27

1

0

ISE 6.3.03i

Mode = 0 Mode = 1
Technology Resources Frequency (fClk) Resources Frequency (fClk)
UMC 180 nm 3,990 Gates 950 MHz 3,450 Gates 900 MHz
