ACEX®, FLEX® Based Compact PCI -X/PCI Development Kit (6U)
32/64-bit ~ 33/66/ MHz

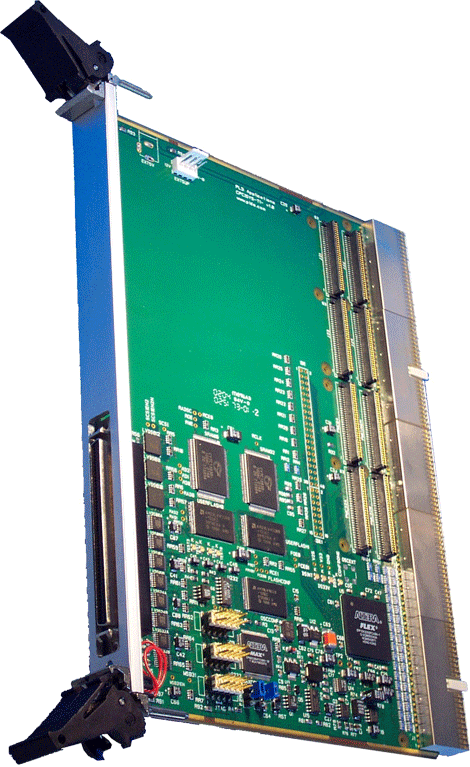

The CompactPCI SYS boards features Altera® programmable logic devices (ACEX1K100FC4841 and FLEX10K200SFC4841) that are the single points of acquisition and processing on the board. All of the data flow goes through the Altera devices, allowing maximum speed for all application processes, including data acquisition, parallel (multi-channel) processing, and PCI transfers up to 64 bits/66 MHz.

The software provided with the board includes drivers and a programming API (DLLs) for Windows 95, 98, NT, and 2000; Solaris, and others. The PCI interface core is fully parameterizable and can be used in any application that requires interfacing based on the PCI protocol. The core handles all of the required features for the bus standard. It supports and provides some unique features such as multi-function, multi-direct memory access (DMA), embedded memory controllers, and more. Most of the core capabilities can be enabled or disabled depending on design requirements, so silicon usage and performance are optimized. The core supports full speed, zero wait-states, and burst transfers in both slave and master operation.






PCI Features:
 - Full hot swap CompactPCI PIGMG 2.1R2.0 compliant
- 6U form factor (1 slot thick)
- 32bit and 64bit PCI operation
- 5volt or 3.3volt PCI board
- Operates on 33Mhz and 66Mhz CompactPCI bus
- Includes PLD Applications 32/64 bit PCI IP cores free license for exclusive use with the CPCISYS boards.

Technology :
- ALTERA® ACEX®1K100 and FLEX®10K200 CPLD support
- ALTERA® programmable logic devices are FBGA484pin packaged.

Software:
 - FLASHPROM configuration module
- Software kit with GUI applications for monitoring and exercising CPCISYS board
- Software development kit including PCI device driver
- Hot swap management

Configuration:
 PCI interface device configuration via:
- ALTERA ® BitBlaster/ByteBlaster (JTAG chain) or
- PLDA FLASHPROM module (Configuration via the PCI bus), allows to store two different configurations on FLASHPROM.

Features :
 - LVDS IO_path on SCSI 100pts connector (33 IN + 1ref_clk, 10 I/Os)
- 1Mx32 bits synchronous SRAM
- 256K x 32 bits user FLASHPROM
- 4 User LEDs
- 2 RS232 I/F
- 93 LVTTL IOs available on PMC connectors
- 2 optoelectronic inputs for triggering
- Available on PMC connector (optional daughter cards): J3 and J5 CompactPCI connector (77 pins + 88 pins) H110 J4 CompactPCI connector (64 pins)

Options :
 - Various standard daughter cards available (prototyping breadboard, 2 channels Gigabit communication, PSB management, Cameralink, etc…)
- LVDS Cables available in various format(SCSI100pts to 2*DB37 + DB15, SCSI100pts to free end, …)

Development Kit Contents:
The Compact PCI Development Kit includes:

  • PCI-X SYS Board - The board ships pre-loaded with example applications and the PCI core libraries. Additional deliverables are also included in the core package, and include:
    • Various wizards for customizing the core, creating constraint files, or creating test bench templates
    • A software kit with PCI C-API and GUI applications for monitoring and exercising PCI agents
    • Reference applications that demonstrate DMA operation, slave accesses, CardBus features, etc.
  • A software development kit, including a reusable PCI device driver, is also available as an option to CompactPCI board purchases.

Ordering Part Numbers:
CPCISYS100/6U  (with EP1K100FC484­1 device)
- Price: $ 2,990

 CPCISYS200/6U (with EPF10K200SFC484­1 device)
- Price: $ 3,390
