APEX® Based PC104pSYS Development Kit

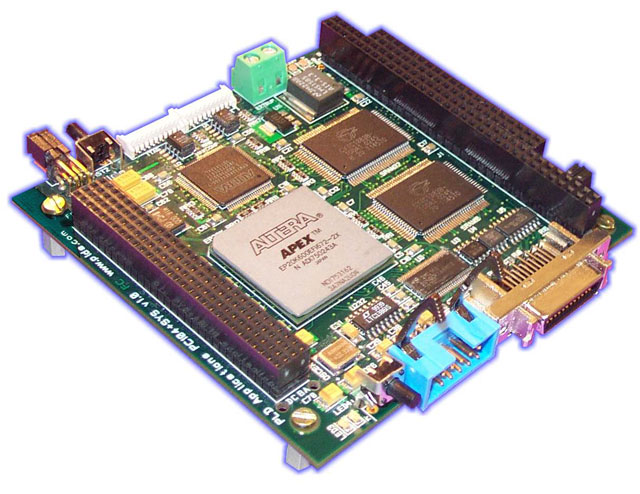

Data Acquisition/Processing & Prototyping PC104/Plus Board

Running on the PC104+ bus and leaning on PLDA 32-bit 33MHz PCI IP core-proven expertise, the PC104+ SYS development board can be mounted with six different APEX™ devices and features up to 1M*32 bits synchronous SRAM and 256K*32 bits user FLASHPROM. It provides a quick and ruggedized prototyping platform to FPGA or ASIC designers. It can also be used at the system level in applications, including processing (nIOs), test and measurement, or data acquisition in various industries, including components manufacturing, physical sciences, aerospace, and military.






PCI Features:
- PC/104Plus “Compliant” meet electrical and mechanical specifications
- 3.3volt and/or 5V PCI board (depending on the mounted device)
- 32bit/ 33MHz PCI operation
- PLD Applications 32bit PCI IP core included (for exclusive use with the PC104p SYS boards)

Technology:
ALTERA® APEX FPGA including:
- EP20K200FC4841XV (3.3V, supports 5V PCI)
- EP20K400FC6721XV (3.3V, supports 5V PCI)
- EP20K200EFC4841X (3.3V PCI only)
- EP20K400EFC6721X (3.3V PCI only)
- EP20K600EFC6721X (3.3V PCI only)
- EP20K1000EFC6721X (3.3V PCI only)

Software:
- FlashPCI configuration software
- Software kit with GUI applications for monitoring and exercising PC104p SYS board
- Software development kit including PCI device driver

Configuration:
PCI interface device configuration:
- ALTERA® ByteBlaster MV (JTAG chain) or
- PLDA FLASHPROM module (Configuration via the PCI bus), allows to store two different configurations on FLASHPROM.

Features:
- PC104 connector implementation for daughter board extension
- 1Mx32 bits of synchronous SRAM
- 256k x 32 bits of user Flash PROM
- 1 base Cameralink interface
- 4 user LEDs
- 1 user reset button
- 1 local oscillator
-1 local poweronreset with power supply monitoring capabilities
- 2 RS232 serial ports
- 4 optoelectronic inputs for triggering
- All resources are accessible in standalone mode

Development Kit Contents:
- Data Acquisition/Processing & Prototyping PC104/Plus Board. The board ships pre-loaded with example applications and the PCI core libraries. Additional deliverables are also included in the core package, and include:

  • Various wizards for customizing the core, creating constraint files, or creating test bench templates
  • A software kit with PCI C-API and GUI applications for monitoring and exercising PCI agents
  • Reference applications that demonstrate DMA operation, slave accesses, CardBus features, etc.

- A software development kit, including a reusable PCI device driver, is also available as an option to PC104+ SYS board purchases.

How To Purchase:
- Buy Online
- Fax your P.O to:  + 1 408 268-4173
- Mail your P.O to:

HiTech Global Distribution, LLC

Ordering Part Numbers:
PC104PSYS   (with EP20K200FC484­2XV  device)
- Price: $ 2,190

PC104SYSP/CUS (Up to 20K1000 )
- Price: On request
