Xilinx Spartan 3 & Philips PCI Express PHY  Evaluation Board










Xilinx FPGA
ISE Design Tool

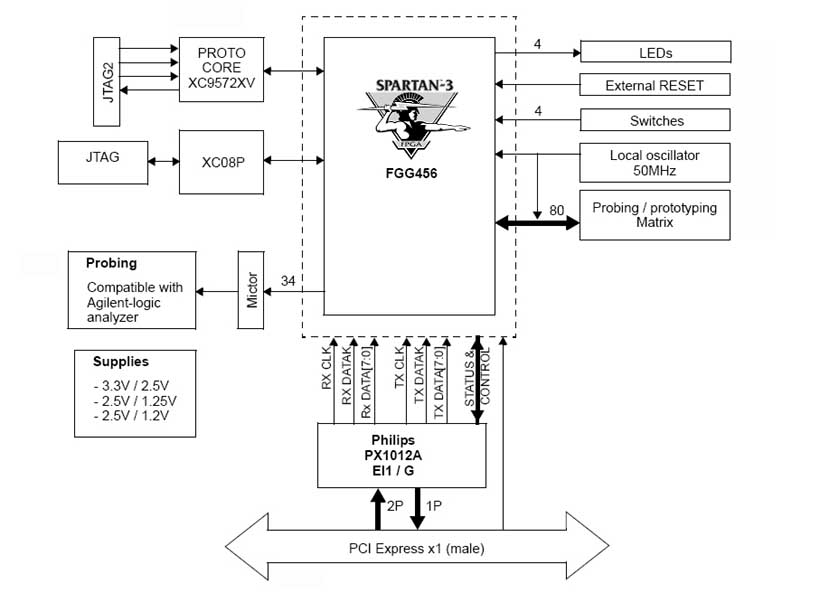

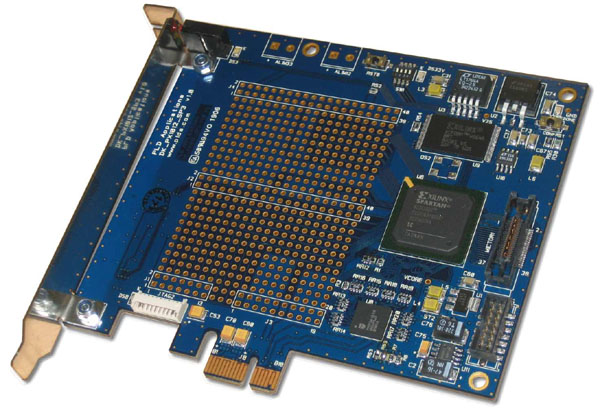

The Spartan3 PCIe boards is powered by Xilinx Spartan 3 ™  XC3S1000 and Philips PX1012A-EL1 PCI Express 1-Lane PHY.

The Spartan3 PCIe  board is bundled with a full featured version of the PLD Applications PCI Express IP Core. (one lane). Designers can add their own logic inside the FPGA and connect it to the PCI Express controller.

Probing and Prototyping Matrix provides additional  access to the Spartan 3 FPGA I/Os.



Features:

Form Factor PCI Express 1-lane End-Point add-in
Standard Support PCI Express 1x,
FPGA Family Xilinx Spartan 3  (XC3S1000)
PCI Express PHY Philips PX1012A-EL1
LVTTL I/Os 75
Prototyping Area Yes
Free IP Cores PCI Express


Part Number & Price:

PXPDKSP3  (XC3S1000)  $1,290
