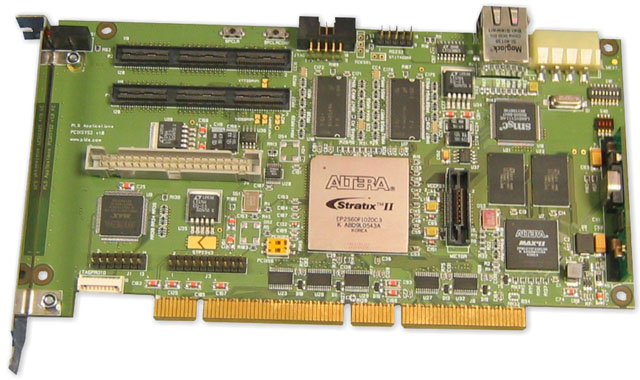

Altera Stratix II PCI-X Development Board





The PCIXSYSxx boards are powered by Altera Stratix-II  EP2S90 or EP2S180.

The PCIXSYSxx  boards are bundled with a full featured version of  PCI-X / PCI IP Cores. Designers can add their own logic inside the FPGA, connect it to the PCI-X controller and benefit from the on-board DDR memory and a wide variety of I/0s.

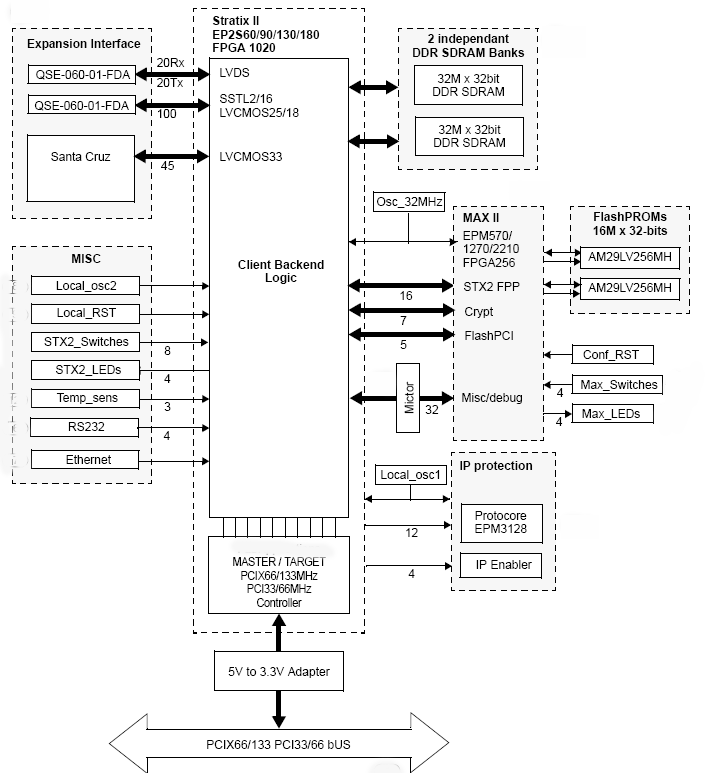

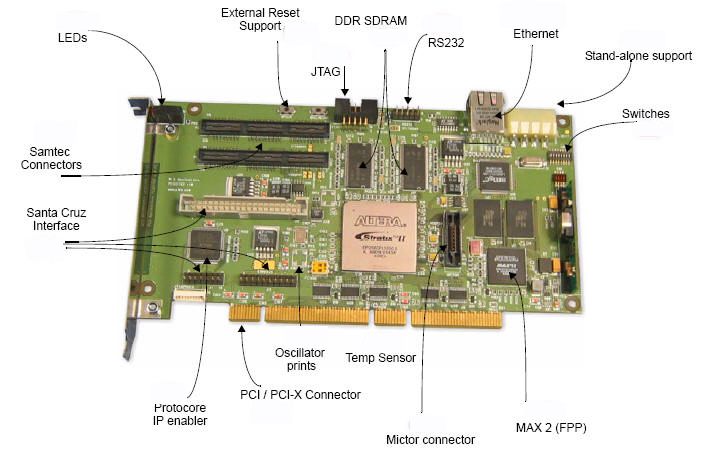

Features:

► Form Factor: PCI-X add-on motherboard
► Standard Support:
PCI-X 133/100 MHz
PCI 66/33 MHz
PCI-X 133/ PCI 66 MHz
PCI-X 100/ PCI 66 MHz

► FPGA Family :Altera Stratix-II
► LE Count: 90K - 180 K
► DDR SDRAM : 2 fully independent DDR SDRAM banks (128MB each)
► Expansion : Expansion interface using Samtec120-pin connector
► External Connectors:
- Ethernet RJ45
- MICTOR 38-bit
- RS232
- User dedicated Santa Cruz connector
- LEDs, switches, user I/Os
► Stand Alone: With External Power Supply

► Free IP Cores:
 PCI-X (licensed for board use)
PCI (licensed for board use)
DDR SDRAM Controller

Deliverables:

 • PCIXSYS2 prototyping board
• Configurable PCI-X / PCI IP Core (board version)
• Reference Design
• Software Development Kit (SDK)
• Complete technical documentation
• Technical support and maintenance provided directly by the design team


Part Number, Price, & Availability:


PCIXSYS2-180  $6,495

PCI-x Drivers

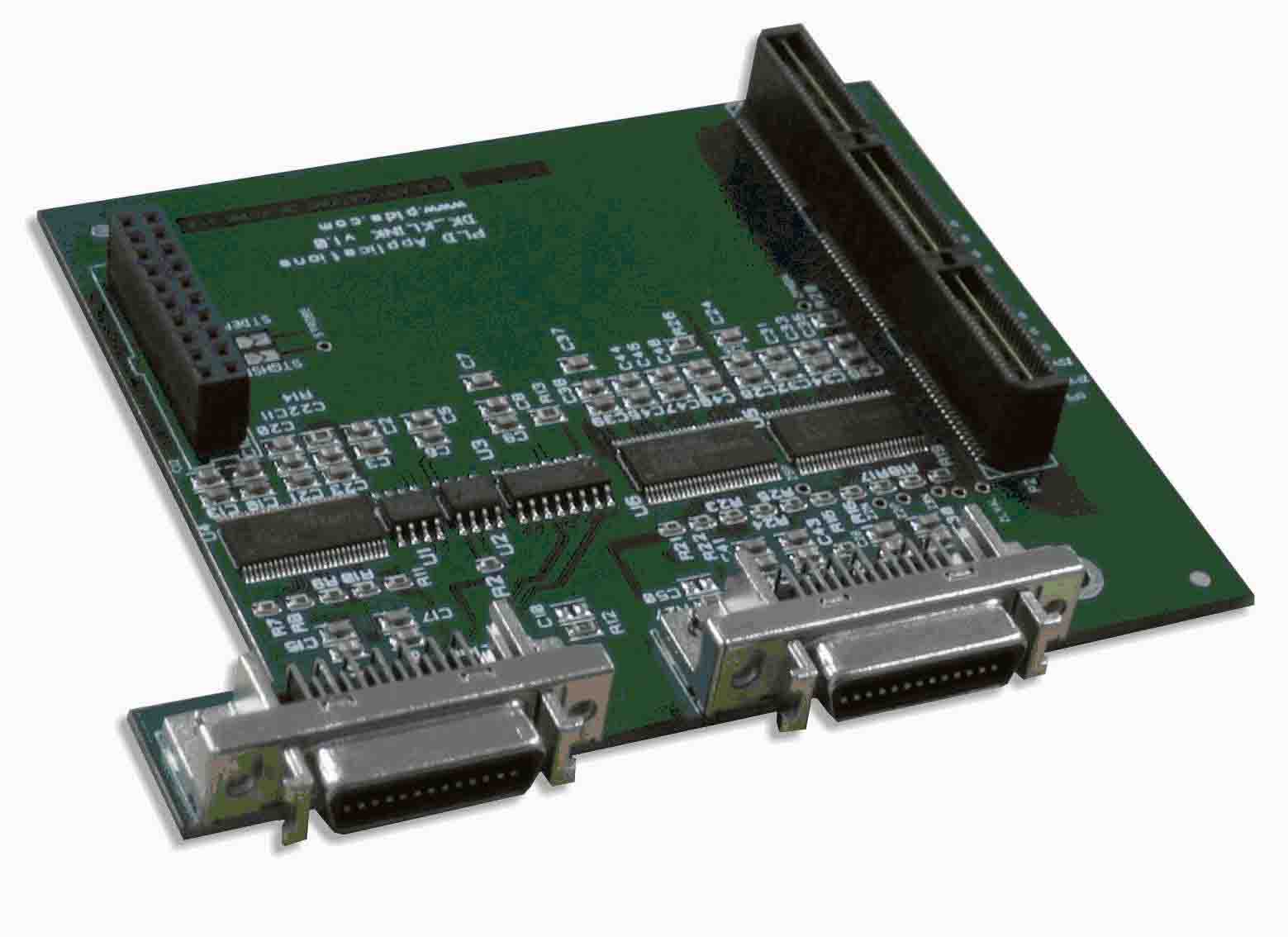

The optional Camera Link Module provides access to Base, Medium, and Full Camera Link interfaces and to all the signals provided by the Camera Link devices (up to 10 taps of 8 bits). It can be plugged into high speed Samtec connectors of PCIESYS60xxx and PCIXSYS2xxx boards.

Part Number: KLINK-SYS
Price: $500

This add-on module provides BASE cameralink functionality

Part Number:  KLINK-BASE
Price: $500



The High Speed Interface bread board offers access to 100 signals from the SAMTEC connector through the HE10 connector.  600 holes (254mm step) are available for prototyping purposes.

Part Number: BB-HSI
Price: $290
     Altera Stratix II Product Table
 Feature    EP2S15    EP2S30    EP2S60    EP2S90    EP2S130    EP2S180
 ALMs    6,240    13,552    24,176    36,384    53,016    71,760
 Adaptive look-up tables (ALUTs)  12,480    27,104    48,352    72,768    106,032    143,520
 Equivalent LEs    15,600    33,880    60,440    90,960    132,540    179,400
 M512 RAM blocks    104    202    329    488    699    930
 M4K RAM blocks    78    144    255    408    609    768
 M-RAM blocks    0    1    2    4    6    9
 Total RAM bits    419,328    1,369,728    2,544,192    4,520,488    6,747,840    9,383,040
 DSP blocks    12    16    36    48    63    96
 18-bit × 18-bit multipliers    48    64    144    192    252    384
 Enhanced PLLs    2    2    4    4    4    4
 Fast PLLs    4    4    8    8    8    8
 Maximum user I/O pins    366    500    718    902    1,126    1,170
