Xilinx Virtex 4 FX60 /FX100 PCI Express Development Board

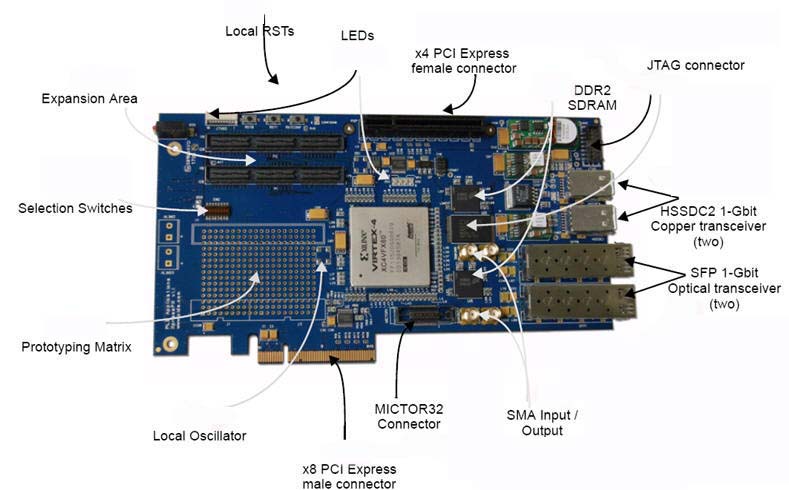

The PCIESYSxx boards are powered by Xilinx Virtex-4™   XC4VFX60 or XC4VFX100 with 16, or 20 RocketIO™ Multi Gigabit Transceivers, and 56,880 or 94,896 logic cells. The PCIESYSxx boards provide one PCI Express 8-lane male connector, one PCI Express 4-lane female connector, two SFP, and two HSSDC2 connectors. The PCIESYSxx boards also provide access up to 512 MB of DDR2 memory.

The PCIESYSxx  boards are bundled with a full featured version of PCI Express IP Core. Designers can add their own logic inside the FPGA, connect it to the PCI Express controller and benefit from the on-board DDR2 memory and a wide variety of I/0s.

Popular daughterboard connectors such as AV Bus can also be accessed from within the FPGA


Feature/Product

XC
4VFX12

XC
4VFX20

XC
4VFX40

XC
4VFX60

XC
4VFX100

XC
4VFX140

Logic Cells

12,312

19,224

41,904

56,880

94,896

142,128

Block RAM/FIFO w/ECC (18 kbits each)

36

68

144

232

376

552

Total Block RAM (kbits)

648

1224

2,592

4,176

6,768

9,936

Digital Clock Managers (DCM)

4

4

8

12

12

20

Phase-matched Clock Dividers (PMCD)

0

0

4

8

8

8

Max Differential I/O Pairs

160

160

224

288

384

448

XtremeDSP™ Slices

32

32

48

128

160

192

PowerPC Processor Blocks

1

1

2

2

2

2

10/100/1000 Ethernet MAC Blocks

2

2

4

4

4

4

RocketIO Serial Transceivers

0

8

12

16

20

24

Configuration Memory Bits

5,017,088

7,641,088

15,838,464

22,262,016

35,122,240

50,900,352

Max SelectIO

320

320

448

576

768

896



Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed



Features:

Form Factor PCI Express add-on motherboard
Standard Support PCI Express x1, x2, x4 and x8 Lane configurations
Endpoint & Root Port Connectors
FPGA Family Xilinx Virtex-4 FX60 or FX100 in FF1152 Package
DDR2-SDRAM 2 fully independent banks of 32Mx16-bit of DDR2 SDRAM (MT47H32M16CC-37EB)
LVDS I/Os 20 Rx / 20 Tx
LVTTL I/Os 100 through high-speed Samtec connectors (QSE)
Daughter Card Extension 2 x Samtec high-speed connectors
Stand Alone Yes
Other Features I/O: x2 Gigabit, x2 Copper Gigabit, LEDs, switches, 200 User I/Os,…
Free IP Cores PCI Express  (licensed for board use only)

Deliverables:

* Board preloaded with reference design
* Free PCIe EZ IP Core (for use with the purchased board only)
* Technical support
* Simulation and encrypted synthesis files
* Customization Assistant (wizard)
* Software drivers (eval)
* LIFETIME IP MAINTENANCE + UPDATES (only for the boards)


Part Number & Price:

► PCIESYS100-11 (with XCV4FX100C -11 speed grade) $4,995
Lead Time: 1 week  [Buy Online]

PCI Express Windows & Linux Drivers

Optional Accessories

The optional SFP-HSI Module provides access to  three (Small Form Factor Pluggable) SFP. It can be plugged into high speed Samtec connectors (only with the PCIESYS100 version)


Part Number: SFP-HSI
Price: $390

The Switch-to-High Speed Interface provides switch capabilities to the PCIESYS100 board.




Part Number: SW-HSI
Price: $390

The High Speed Interface bread board offers access to 100 signals from the SAMTEC connector through the HE10 connector.  600 holes (254mm step) are available for prototyping purposes.

Part Number: BB-HSI
Price: $290





Part #: DS-ISE-FND
Price: $2,495

The latest Xilinx FPGA Design Tool supporting Virtex-5 devices



Part #: HW-USB
 Price: $199

FPGA Programming Cable (USB)


Part #: HTG-PCIE-PC
Price: $1,250

PC for PCI Express Development











This add-on modules provides  FULL  Cameralink functionality (80-bit up to 75MHz).

Part Number: KLINK-FULL
Price: $500


This add-on module provides BASE Cameralink functionality

Part Number:  KLINK-BASE
Price: $500
