 Linux/Windows PC - PCI Express Gen4







This PC with its powerful AMD Ryzen 3700X processor and multi PCI Express Gen 4 expansion slots is ideal lab equipment for developing systems and processing applications with FPGA and GPU based platforms. The system is scalable of supporting different compatible processors and up to 8 storage devices. The case special design along with its four cooling fans provides optimal thermal management.

Main Features:

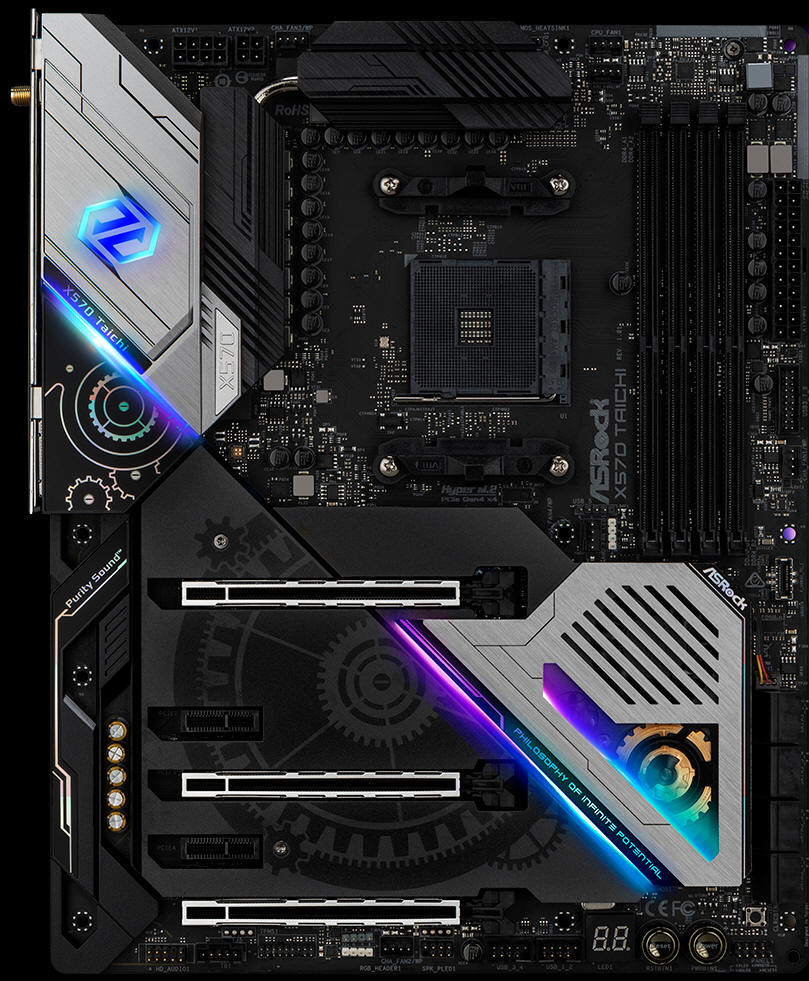

PCI Express Slots

3 PCIe 4.0 x16
2 PCIe 4.0 x1

Storage:   1TB Solid State Drive (SSD)

8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) or Gen3x4 (32 Gb/s)
1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)

Back I/O Ports

2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

  • LAN
    Gigabit LAN 10/100/1000 Mb/s
    GigaLAN Intel® I211AT
    Supports Wake-On-LAN
    Supports Lightning/ESD Protection
    Supports Energy Efficient Ethernet 802.3az
    Supports PXE

  • Wireless LAN
    Intel® 802.11ax WiFi Module
    Supports IEEE 802.11a/b/g/n/ax
    Supports Dual-Band (2.4/5 GHz)
    Supports high speed wireless connections up to 2.4Gbps
    -
    2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    -
    Supports Bluetooth 5.0 + High speed class II
    -
    Supports MU-MIMO

  • Audio
    7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    Premium Blu-ray Audio support
    Supports Surge Protection
    Supports Purity Sound™ 4



    Supported Operating Systems

    The PC can be configured and shipped with your preferred operating system.



    Windows 10                                   Fedora                                            Ubuntu



    Ordering information:

     Ordering Part Number Operating System Processor Type Storage Type DRAM Size Price
    HTG-ULNX-G4-SSD-16 Ubuntu AMD 1TB -SSD 16GB $2,420 Buy Online
     HTG-FLNX-G4-SSD-16 Fedora AMD 1TB -SSD 16GB $2,420 Buy Online
     HTG-W10-G4-SSD-16  Windows 10 AMD 1TB -SSD 16GB $2,590 Buy Online
