Features:
-4 channel (max) D/A outputs per system.
-16bits Resolution
-48KHz, 32KHz,16KHz, 8KHz, 44.1KHz, 22.05KHz, 11.025KHz sampling
frequencies.
-Microphone input amplifier, built-in ADC gain control. SNR is 70dB or
higher
-2 USB ports to maintain the power from USB cable.
-Windows 2000/XP and Linux are supported
-Drivers and Firmware included
-Board size as small as a business card (W 90mm x D 55mm)
- Dimensions:90mm x 55mm (board size)
- Power Supply: Power supply for 2 USB connectors. USB connector for
Power Supply is able to connect Power Supply (+-5V)
- Mounted FPGA:

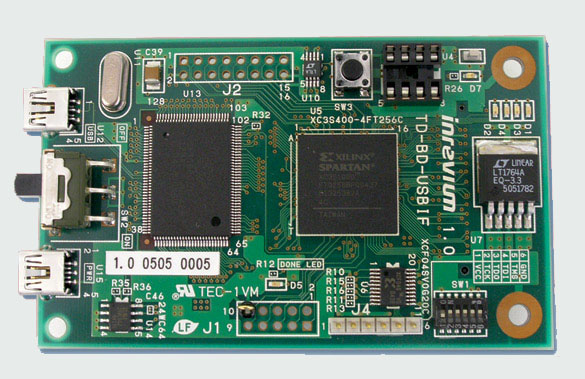

[TD-BD-USBIF] Xilinx XC3S1000-4FTG256C

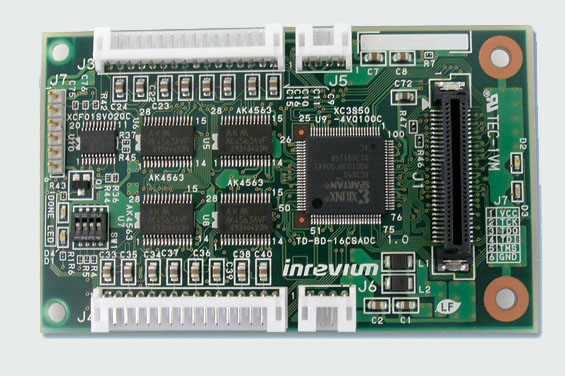

[TD-BD-16CSADC] Xilinx XC3S50-4VQG100C
- Main external I/F: USB2.0/1.1(Mini-B type),16ch Microphone input(64ch
max),4ch(max)D/A output
- Supported OS:Windows 2000 , XP / Linux
|
Kit Content:
- Board "TD-BD-USBIF"and"TD-BD-16CSADC"
- Hardware specifications, Software specifications for Windows and Linux.
- Linux device drivers as well as sample recording software
- Windows device drivers as well as sample recording software in the
object code
- 8ch microphone connecting cables x 2 (3.5 mini jack)
- 2ch Speaker connecting cables x 2
- USB AC Adapter
- Part Number & Price:
TD-BD-16CSUSB (USB board + AD/DA board) $3,200
TD-BD-16CSADC (Additional AD/DA board) $2,800
- How To Purchase
|
