Virtex-II Pro RocketIO Optical Module



Overview

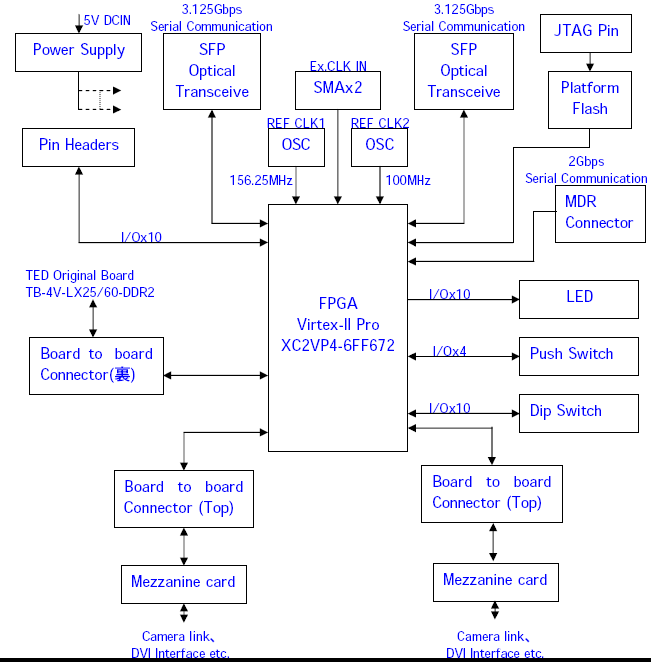

Powered by Xilinx Virtex-II Pro (XC2VP4-FF672) and Agilent Optical Module AFBR-57R5AP, this board is an ideal platform for development of high-speed serial application up to 3.125 Gbps.


DVI Tx Module                                      DVI Rx Module










Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed

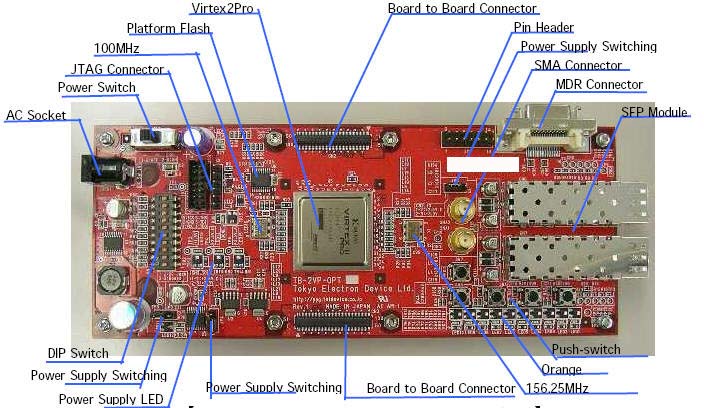

Features:

■ Xilinx Virtex-II Pro XCV2P4-FF672
■ 2 RocketI/O channels (via SFP) with connection to Agilent Optical Module AFBR-57R5AP - supports high-speed serial signal evaluation up to 3.125Gbps.
■ 2 RocketI/O channels with connection to a MDR  Port - support
Electrical Signal to  high-speed serial signal evaluation up to 2Gbps.
■ Board to Board Connector - WR-100P-VF-1 Connector to support connection to  Mezzanines Cards (support Camera link and DVI Interface evaluation).
■ WR-100P-VF-1 Connector to support operation with the Virtex-4 DDR2/DVI board
c Standard Appended AC Adaptor-  supports operation of the board. through back plain power supply connector as well.





 Kit Content:

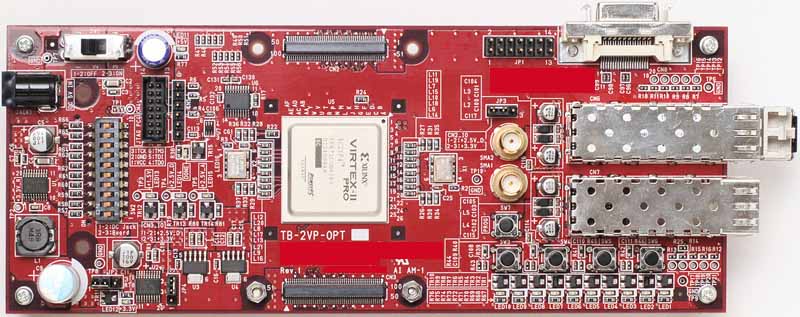

■ TB-2VP-OPT(Main Body)
■ 5.0V 4A AC Adaptor
■ Hardware User’s Guide
■ Sample Applications
■  Agilent 2Gbps Optical Module, Single Fiber Optical Cable (1m) ： Attached to TB-2VP-OPT-2G
■ Agilent 4Gbps Optical Module, Single Fiber Optical Cable (1m) ： Attached to TB-2VP-OPT-4G

- Part Number:  TB-V2P-OPT -4G (with Agilent 4G Module)
- Price:   $1,300

Optional Modules:
- TB-SUB-DVI (DVI Tx/RX Interface): $498
