Xilinx Spartan 3 Evaluation board for FPD interface and Image processing





The Xilinx Spartan 3 "1500-IMG" and "2000-IMG" boards are ideal platforms for evaluation of Xilinx Spartan 3 XC3S1500-4FG676 and XC3S2000-FG676 FPGAs for image processing applications.  DVI and FPD connectors provide access to the Spartan 3 for Digital Video Interface (DVI) and Flat Panel Display (FPD) developments.

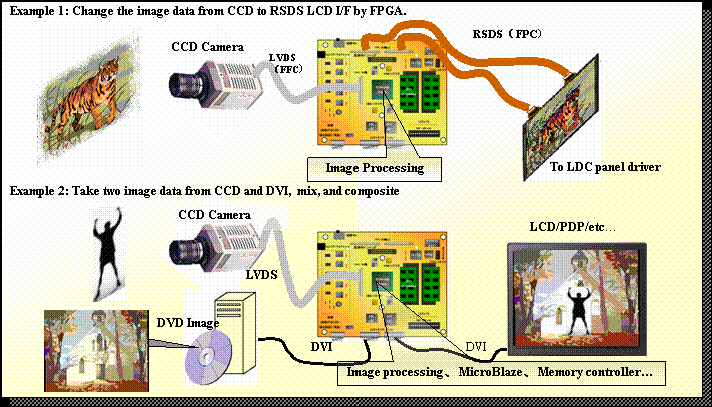

 Sample Applications:






Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed

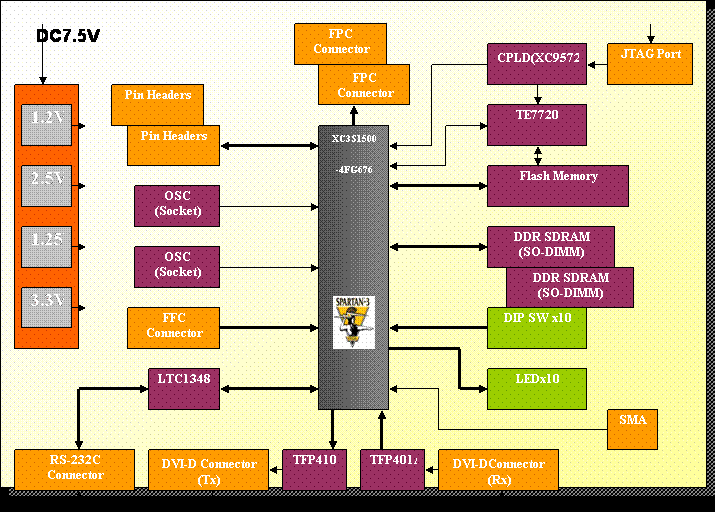

Features:

 - Xilinx Spartan 3 (XC3S1500-4FG676 or XC3S2000-FG676)
 - 2 DDR SDRAM SO-DIMM slots
- Configuration ROM
- 32 Mbit Flash ROM (2M * 16bit)
- 64 Mbit SDRAM (4M * 16bit)
- FFC/FPC connector for LVDS/RSDS to optimize development of display panel interface.
- DVI (Tx/Rx) to enable input and output of image source.
- Optional Extension Modules
- Pushbuttons, LEDs and DIP Switches
- Extended Ports
- Pin headers and power supply pin headers- Parallel Port
- Serial Port
- JTAG
- Digital Control Impedance Checker (DCI）

BSB Files for Xilinx EDK



Kit Content:

- TB-3S-1500-IMG or TB-3S-2000-IMG
- User Guide
- FFC Cable
- 7V 2.9A AC Adaptor
- 266Mbps DDR SDRAM reference datasheet

Exclusive Options:

- 10/100 BASE Ethernet Module
 - AD/DA Converter Module

- Part Number:
- TB-3S-1500-IMG
- Price:   $2,000  [Buy Online]

- TB-3S-2000-IMG
- Price:   $2,300 [Buy online]
