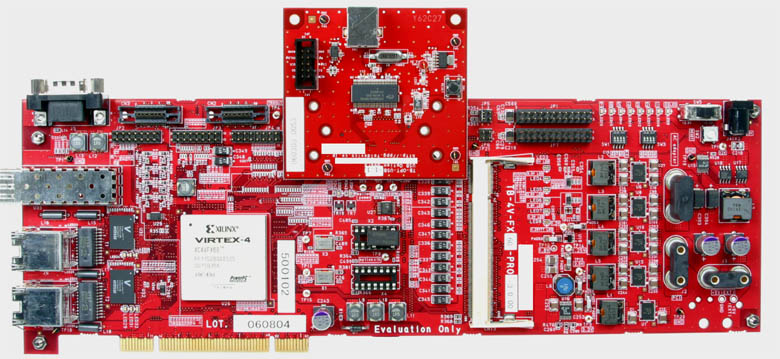

Xilinx Virtex 4 PowerPC Processor Development Board



The TB-4V-PPC is an ideal PCI based platform for embedded system developments using Xilinx Virtex-4 FX60 FPGA with two built-in IBM PowerPC® 405 Microprocessors . Availability of large FPGA size, flexible memory, and other resources provide an ideal design environment for hardware and software developments.

Availability of series of JTAG, Mictor, and BDM/JTAG connectors provide easy interface to different tools and test equipment for configuration and debugging purposes.

The TB-4V-PPC can be used either as a PCI-based card or stand alone.

Feature/Product

XC
4VFX12

XC
4VFX20

XC
4VFX40

XC
4VFX60

XC
4VFX100

XC
4VFX140

Logic Cells

12,312

19,224

41,904

56,880

94,896

142,128

Block RAM/FIFO w/ECC (18 kbits each)

36

68

144

232

376

552

Total Block RAM (kbits)

648

1224

2,592

4,176

6,768

9,936

Digital Clock Managers (DCM)

4

4

8

12

12

20

Phase-matched Clock Dividers (PMCD)

0

0

4

8

8

8

Max Differential I/O Pairs

160

160

224

288

384

448

XtremeDSP™ Slices

32

32

48

128

160

192

PowerPC Processor Blocks

1

1

2

2

2

2

10/100/1000 Ethernet MAC Blocks

2

2

4

4

4

4

RocketIO Serial Transceivers

0

8

12

16

20

24

Configuration Memory Bits

5,017,088

7,641,088

15,838,464

22,262,016

35,122,240

50,900,352

Max SelectIO

320

320

448

576

768

896

Xilinx Virtex-4 FX Series Product Table





Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed



Features:

  • Virtex 4  XC4VFX60-C  in FF1152 Package (configurable via the Platform Flash or JTAG)
  • Connector for F-Sight (FPGA/Processor HW/SW debugger) analyzer extension probe and Windriver ICE/Prob
  • Universal 32-bit Card Edge compliant PCI edge (supports PCI 5V)
  • x2 Gigabit Ethernet (1000BASE-X and 10/100/1000BASE-). Each PHY is connected to one embedded Ethernet MAC inside Virtex-4 FX device)
  • x1 SFP
  • 32MB DDR DRAM (SSTL-2 IO/s)
  • NOR Flash (Spansion)
  • 200-Pin DDR SODIMM (SSTL-2 I/Os, on-board termination resistors)
  • x1 UART
  • x2 Crystal Oscillator IC Sockets and Oscillators
  • x2 38-pin Mictor Connectors
  • x2 10-pin JTAG Connectors
  • x2 BDM/JTAG Connectors
  • x1 40-pin Extended I/O Connector
  • x2 WR-100P-VF-1 Connectors





 Kit Content:

  •  Development Board

  • 5.0V AC Adapter

  • CD ROM with sample circuits, sample application program,  user manual, etc.

- Part Number: TB-4V-PPC
 - Price: $1,795
- Lead Time: 1 week
- Optional Tools:

Revolutionary FPGA/PPC405 HW/SW Debugger

Optional Modules:

The following modules provide additional functionalities and can be plugged into the CN1 connector (upper part of the board):

  • TB-SUB-DVI (DVI Tx/Rx Interface): $598

  • TB-SUB-CL (Camera Link) - $298

  • TB-SUB-USB (USB Module) - $598

  • TB-V2P-OPT (Optical Module) - $1,300


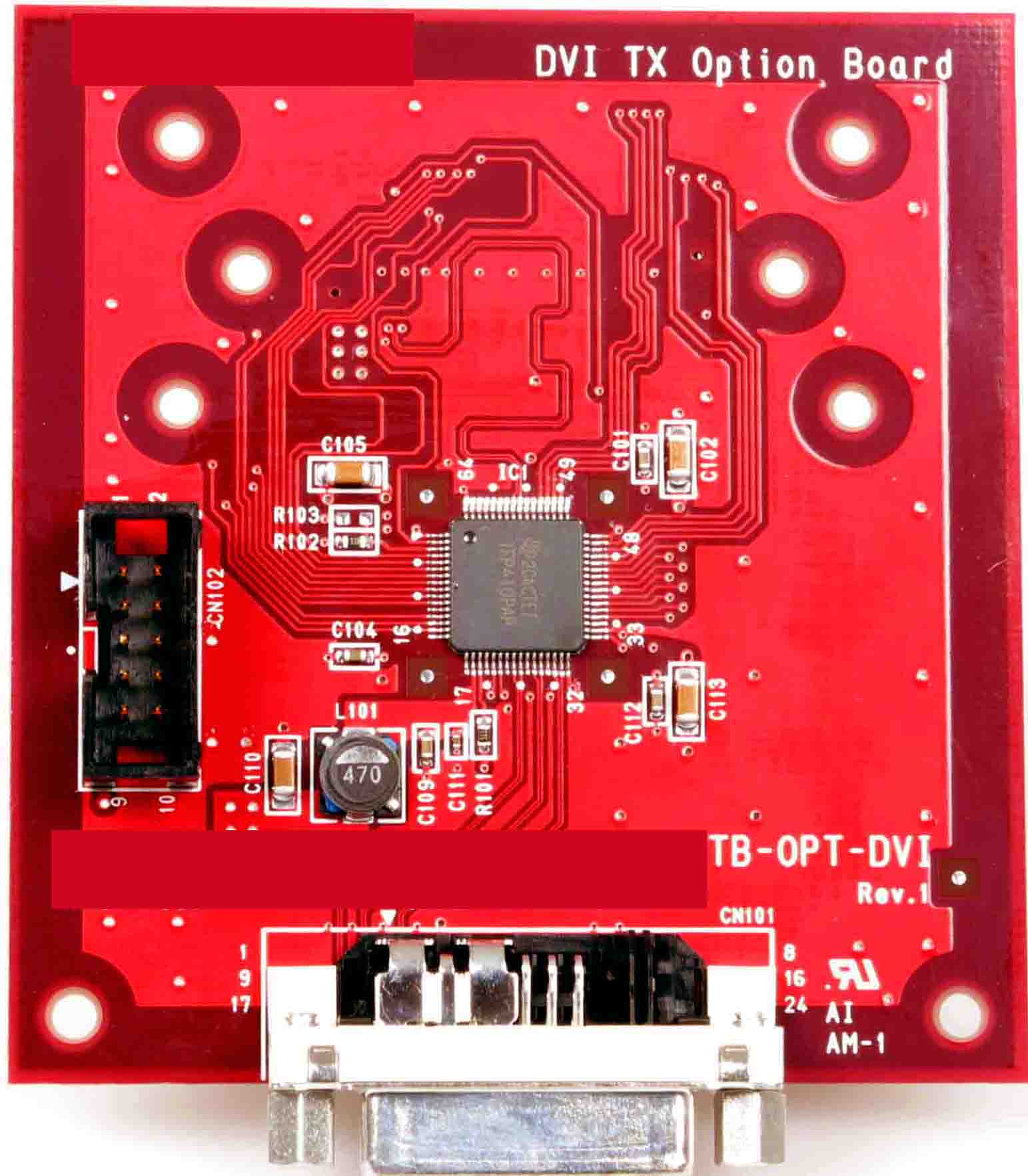

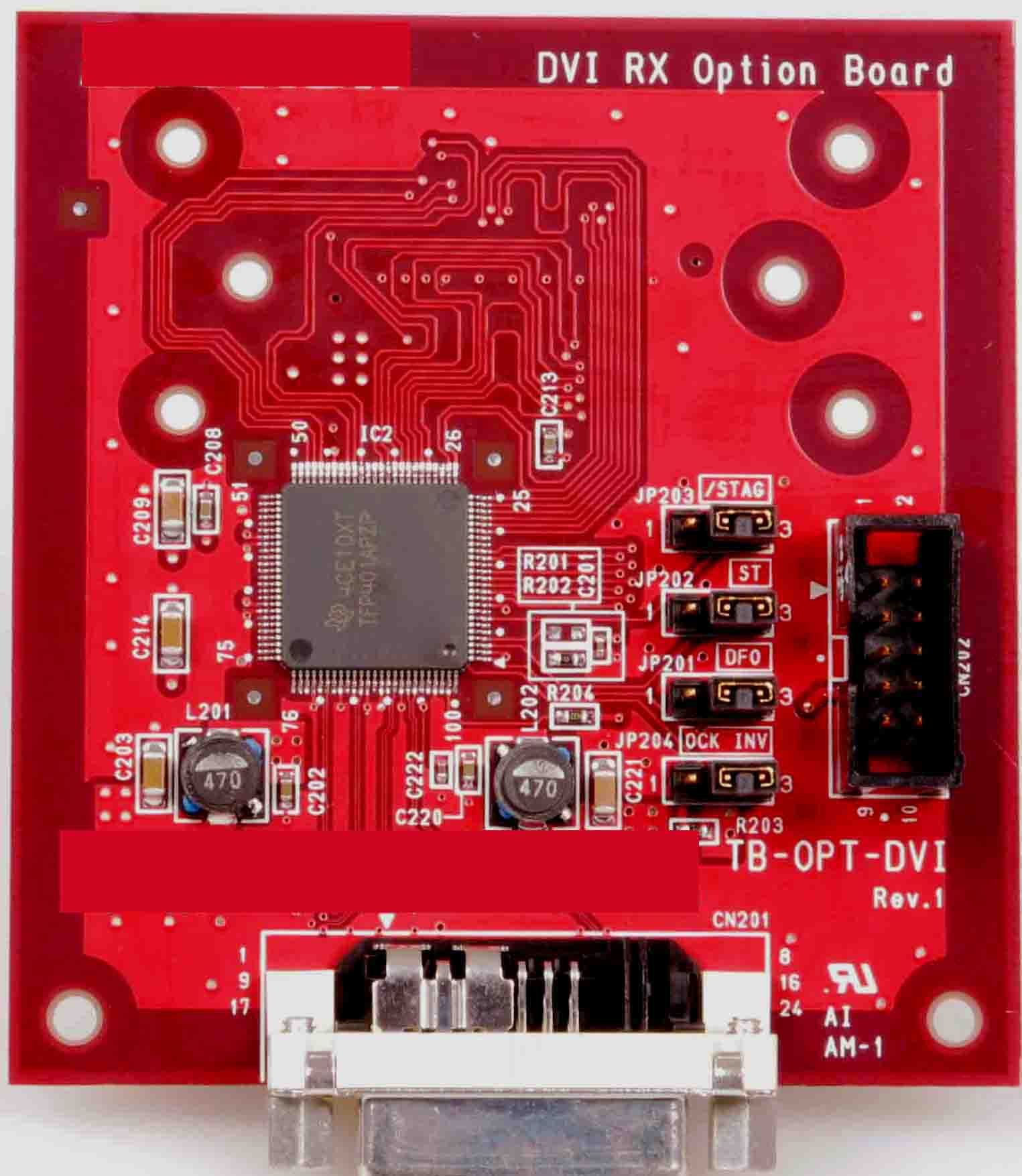

DVI Transmit (Tx) & Receive (Rx) Modules

Part #:  TB-SUB-DVI
Price: $598

Pin Header Module

Part Number: TB-SUB-PH
Price: $145


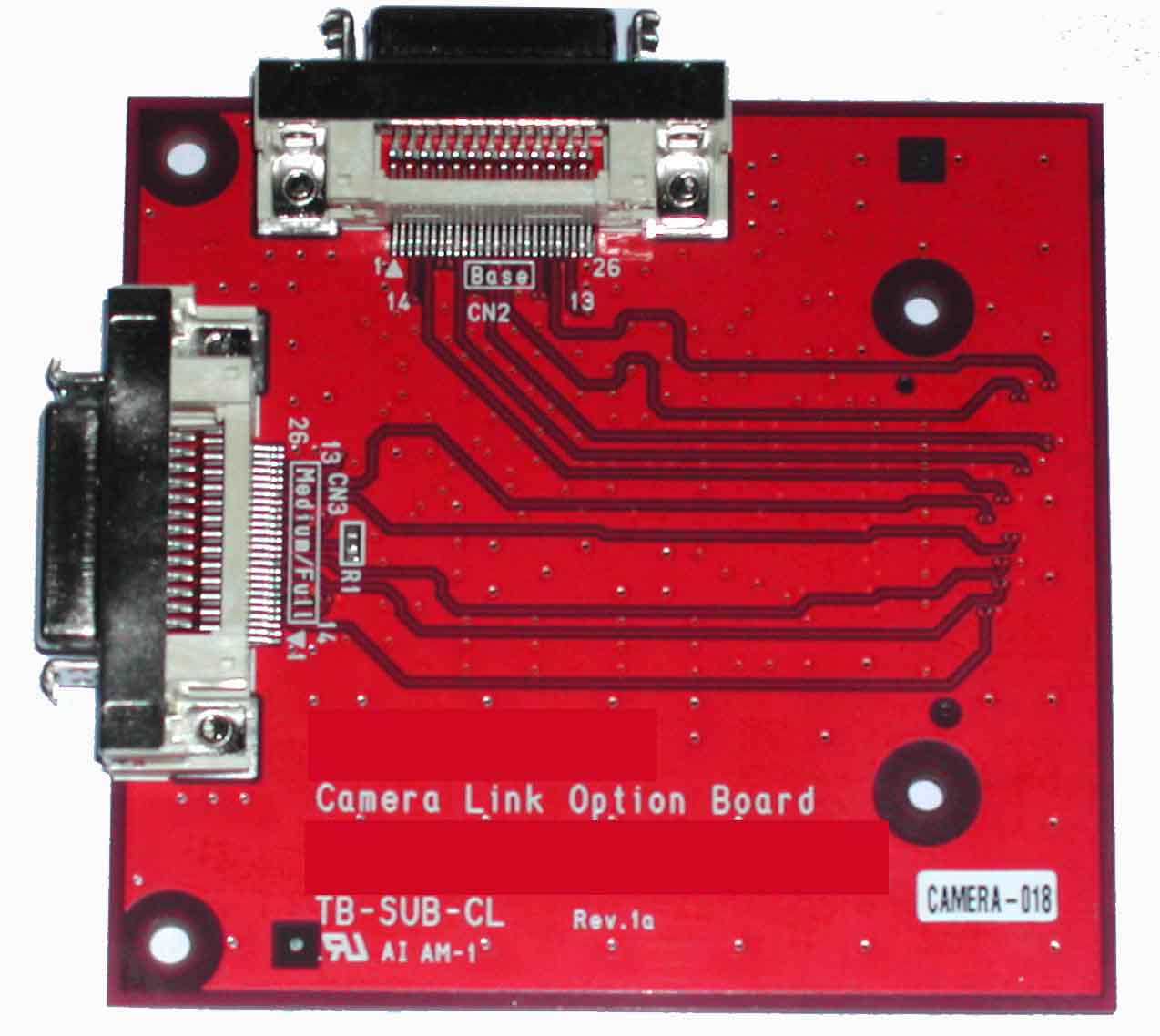

CameraLink Module

Part Number: TB-SUB-CL
Price: $398
USB 2.0 Module

Part Number: TB-SUB-USB
Price: $598
