Xilinx Virtex 4 DDR 2 Memory , DVI , & Camera Link Design Kit

                       The best selling Xilinx Virtex-4 DDR-2 /DVI board

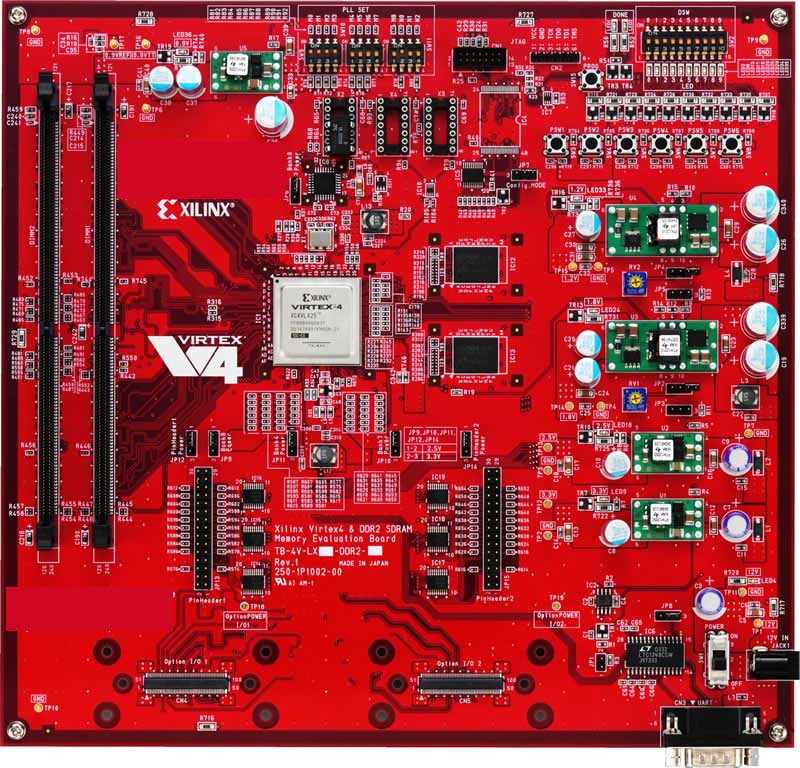

Xilinx Virtex 4 TB-V4-LXxx-DDR2 boards are high performance, easy to use, and low cost  platforms for rapid evaluation of DDR-II memory devices (Elpida, Micron, and Samsung) with Xilinx Virtex-4 LX25 or LX60 devices.

The general IO headers can host different modules to be used with the  board. The "DVI Tx/Rx" ,  "Camera Link", and "Optical" Modules are currently available to be used with the  Xilinx Virtex 4 DDR 2 Memory Board. Memory, Camera Link, and DVI reference design are available can be shipped with the board for free.

DDR-II Controller IP Core

Xilinx FPGA
ISE Design Tool

Xilinx PlanAhed

Virtex-4 LX Product Table

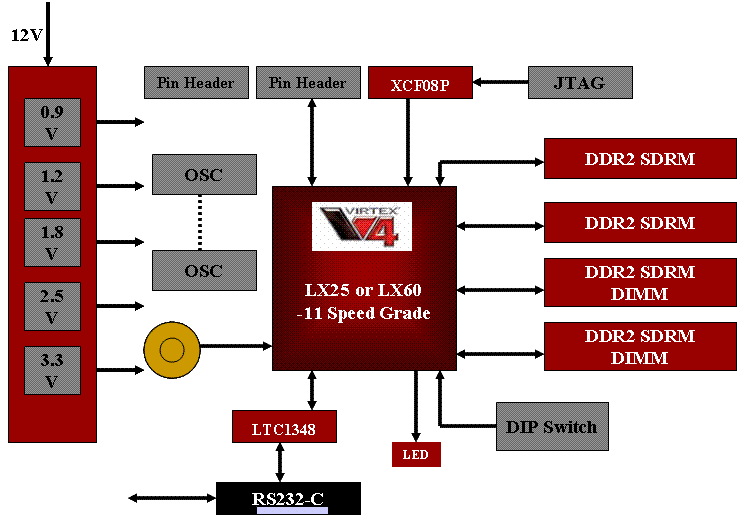

Features:

• Virtex 4 LX25/ LX60 in FF668 Package
• 2x DDR DIMM Sockets (533Mbps)
• 2x DDR Mounted Memory (533Mbps)
•  533Mbps DDR2 memory controller Reference design
•  Various option Modules (HDL Reference Design)
  o DVI Tx/Rx option Module
  o Camera Link I/F Module
  o Optical I/F Module

•  Development Board (DIMMs are not included)

• 5.0V AC Adapter

• CD ROM with sample circuits, sample application program,  user manual, etc.

Available Reference Designs:

• DDR2 Memory Controller

• Camera Link

• DVI

                - Resolution: SXGA
                - Down converts from RGB24bit （R:8/G:8/B:8)　into　RGB16bit
               （R:8/G:8/B:8)

• TB-4V-LX60-DDR2       $2,199      [Buy Online]

• TB-4V-LX25-DDR2        $1,699    [Buy Online]

- Lead Time: One week

- Option Modules:

• TB-SUB-DVI (DVI Tx/Rx Interface): $598

• TB-SUB-CL (Camera Link) - $298

• TB-V2P-OPT (Virtex-II Pro Optical Module): $1,300

• TB-SUB-USB (USB Module): $598

- How To Buy
