TB-V2P-XSP-016 - Xilinx Virtex-II Pro PowerPC and Microblaze Board

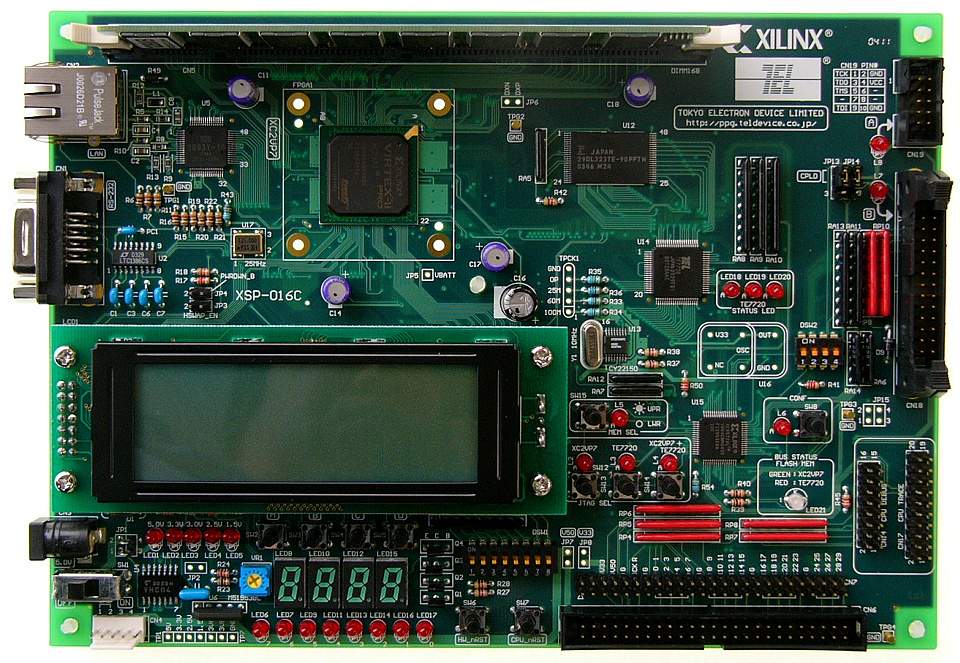

TB-V2P-XSP-016 is a Virtex-II Pro development and evaluation platform for embedded system designs using IBM PowerPC405 hard-core and MicroBlaze soft-core processors.

Adjustable size of SDRAM Memory (up to 512 MB) makes the TB-V2P-XSP-016 an ideal platform for software development and verification.

The TB-V2P-XSP-016 platform can also be used for evaluation of network applications using 10/100 base Ethernet and wide range of IP cores provided by Xilinx and its Alliance core partners.

Tokyo Electron's ASIC (TE7720), 32-Mb of Flash Memory, JTAG Port, and programming tool are provided for FPGA bit stream download, configuration, and verification.

Xilinx FPGA
ISE Design Tool

Xilinx PlanAhed

Features:

• Xilinx Virtex-II Pro XC2VP7-5FG456C
• 128 MB SDRAM DIMM (Socket-type for future expansion)
• 10/100 Ethernet PHY (ICS1893) &  RJ45 Jack
• Pushbuttons, red LEDs, 7-segment LED, 20-character/4-line LCD

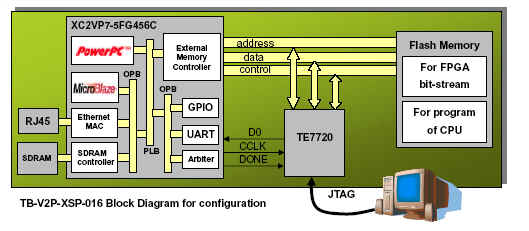

• TED ASIC (TE7720) for FPGA configuration and downloading FPGA bit stream and CPU program to 32bit Flash Memory via JTAG from PC
• 32-Mbit Flash memory (for FPGA configuration storage area and PowerPC program data)
• x1 Serial Port
• 10-Pin JTAG Port
• Clock Source : 100/60 MHz
• CPLD XC9572XL for FPGA configuration control
• CPU Debug & Trace Port
• 50-pin Connector for external expansion

BSB Files for Xilinx EDK

• TB-V2P-XSP-016 Development Board

• 128 MB SDRAM DIMM

• 5.0V AC Adapter

• Flat cable for download

• CD ROM with sample circuits, sample application program, boot loader , monitor program, user manual, etc.
