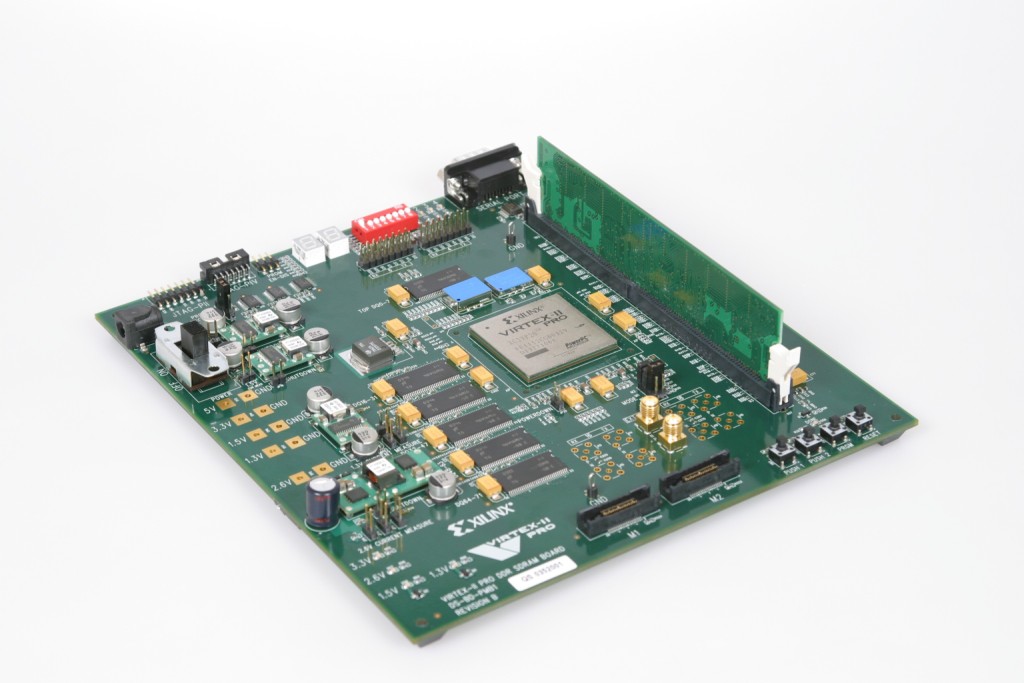

ML361 - Xilinx Virtex-II Pro DDR 400/PC3200 Memory Board

The ML361 Virtex-II Pro DDR400/PC3200 Memory Board provides a communications platform between a Virtex-II Pro FPGA and high-speed double-data-rate (DDR) memories with operating speeds up to 200 MHz. The ML361 has three major functions:

• Tests and verifies the interoperability of Virtex-II Pro devices with high-speed DDR memories

• Serves as a development platform for Xilinx and its customers to use for building memory controllers

• Provides a means by which Xilinx can demonstrate high-speed DDR memory interoperability

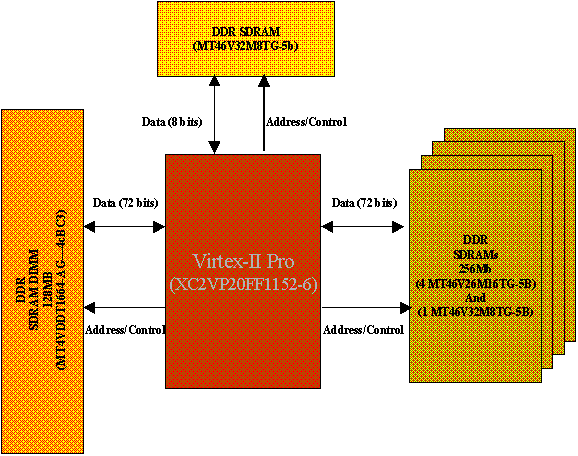

The ML361 demonstrates a 64-/72-bit interface to a 128 MByte, 200 MHz DDR SDRAM DIMM, a 72-bit interface to five 256 Mbit, 200 MHzDDR SDRAM components, and an additional 8-bit, 166 MHz interface to a 256 Mbit DDR SDRAM component on one of the top banks.

Xilinx FPGA
ISE Design Tool

Features:

• One Virtex-II Pro FPGA (XC2VP20FF1152-6)
• One DDR SDRAM DIMM (MT4VDDT1664-AG-40BC3)
  - 128 MBytes / 64-/72-bit data interface
• Five DDR SDRAMs (four MT46V16M16TG-5B devices and one MT46V32M8TG-5B device) -1.28 Gbits / 72-bit data interface
• One DDR SDRAM (MT46V32M8TG-5B) - 256 Mbits /  8-bit data interface
• Two separate controllers for each 72-bit memory interface
• 200 MHz interface
• The memory interfaces are located on the FPGA left/right interface and top I/O banks (banks 1, 2, 3, 6,  and 7)
• 1x Serial Port
• 2x MICTOR (38-pin)
• 2x GPIO Headers
• 2x SMA Connector (External Clock)
• Power Supply (5 V)
• JTAG - P III
• JTAG - P IV
• Clock 200 MHz and 166 MHz
• Push, Program, and Reset Buttons
• DIP Switch
• 7-Segment Display
• PROM

- ML361 DDR400/PC3200 Memory Board
- Power Supply
- Memory Controller Reference Design (in VHDL & Verilog)
- CD (documentation, user guide, Gerber files, etc.)
- User Guide (hard copy)
