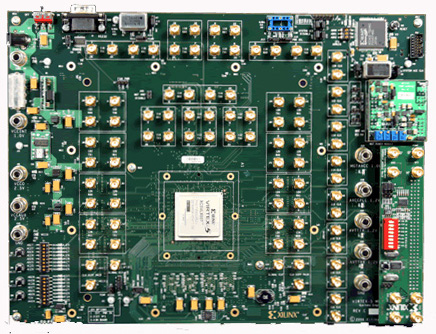

Xilinx Virtex-5 LXT ML523 Characterization RocketIO GTP board

The ML523 (populated with XC5VLX110T-1FF1136) allows designers to investigate and experiment with the features of the Virtex-5 Rocket I/O Gigabit Transceivers. The ML523 is an official and ideal platform for full and detailed characterization of the high speed IO channels of Virtex-5 LXT devices and meets the highest signal integrity standards.

Each RocketIO Transceiver is connected to 4 SMA connectors (TxN, TxP, RxN, and RxP).

Virtex-5 LXT Product Table:

Virtex-5 Features				LX30T	LX50T	LX85T	LX110T	LX330T
CLB X Array Size (Row x Column)				80 x 30	120 x 30	120 x 54	160 x 54	240 x 108
Slices				4,800	7,200	12,960	17,280	51,840
Logic Cells				30,720	46,080	82,944	110,592	331,776
CLB Flip-Flops				19,200	28,800	51,840	69,120	207,360
Maximum Distributed RAM KBits				320	480	840	1,120	3,420
Block RAM/FIFO w/ECC (36kbits each)				36	60	108	148	324
Total Block RAM (kbits)				1,296	2,160	3,888	5,328	11,664
Clock Management Tiles (CMT)				2	6	6	6	6
Digital Clock Manager (DCM)				4	12	12	12	12
Phase Locked Loop/PMCD				2	6	6	6	6
DSP48E Slices				32	48	48	64	192
RocketIO™ GTP Channels				8	12	12	16	24
Maximum SelectIO™ Pins				360	480	480	680	960
SelectIO Banks				13	17	17	23	35
Digitally Controlled Impedance (DCI)				YES	YES	YES	YES	YES
Maximum Differential I/O Pairs				180	240	240	340	480
PCI Express End-Points Blocks				1	1	1	1	1
10/100/1000 Ethernet MACs				4	4	4	4	4
Configuration (Mbits)				9.4	14.1	23.4	31.1	82.7
Package	Size	IO	MGT
FF665	27	360	8	360 (8)	360 (8)
FF1136	35	640	16		480 (12)	480 (12)	640 (16)
FF1738	42.5	960	24				680 (16)	960 (24)

Features: • Virtex-5 FPGA • Onboard power supplies for all necessary voltages • Power supply jacks for optional use of external power supplies • JTAG configuration port for use with Parallel Cable III and Parallel Cable IV cables • System ACE™ controller with 8-bit MPU port support • RS-232 serial port • Power supply module supporting all transceiver power requirements • Two 2.5V / 3.3V global clock oscillator sockets • Two single-ended global clock inputs with SMA connectors • Two pairs of differential global clock inputs with SMA connectors • SuperClock module supporting multiple frequencies • Xilinx Generic Interface (XGI) • 64 pairs of SMA connectors for the RocketIO transceivers (16 channels x 4 SMAs per channel) • 8 differential SMA connectors for RocketIO transceiver clock inputs • Power indicator LEDs • General purpose DIP switches, LEDs, and pushbutton switches • 32 MB - 128 MB of DDR2 Memory		Kit Content: • ML523 RocketIO characterization platform • Xilinx UG225, ML52x User Guide • ML523 board schematic. In PDF format on the compact flash • Power supply module schematic. • SMA-to-SMA cable assemblies: - Four 24-inch cable assemblies - Two 12-inch cable assemblies • System ACE™ CompactFlash memory card • SuperClock module • Power supply module • Power supply brick • SMA wrench
- Part Number: HW-V5-ML523 - Price: $ 4,995	- Optional Accessories: SMA to SMA 2' Cable - Part Number: SMA2SMA-2 - Price: $21(each)
	SMA-TO-SFP: $235	SMA-TO-SATA: $235	SMA-TO-HSSDC2: $289
