ARM922T SOC Development Kit



The ARM922T Kit is designed for System On a Chip (SOC)  hardware and software development. The development kit is based on Altera Excalibur including ARM922T core and up to 1 million gates of programmable logic. To provide an FPGA based emulation solution, different Xilinx Virtex-II FPGA modules (1 ~ 8 million gates) can also be plugged into the platform. Using the same expansion interface, other modules such as Wireless LAN, GPS, Bluetooth, and FPGA can easily be plugged into the the platform.

The ARM922T Development Platform can be used for HW/SW Co-design and verification IP Cores such as MPEG4, H.264, Audio Code 97, CMOS Image Sensor, Color TFT LCD, USB 2.0 , and more.

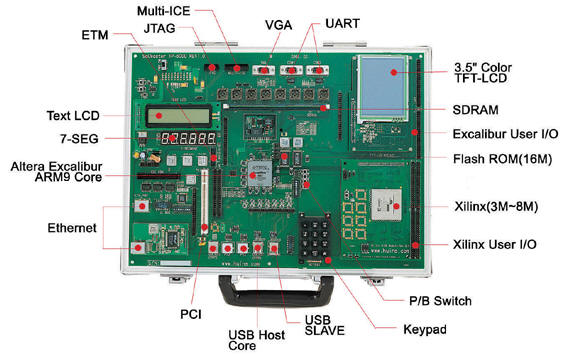

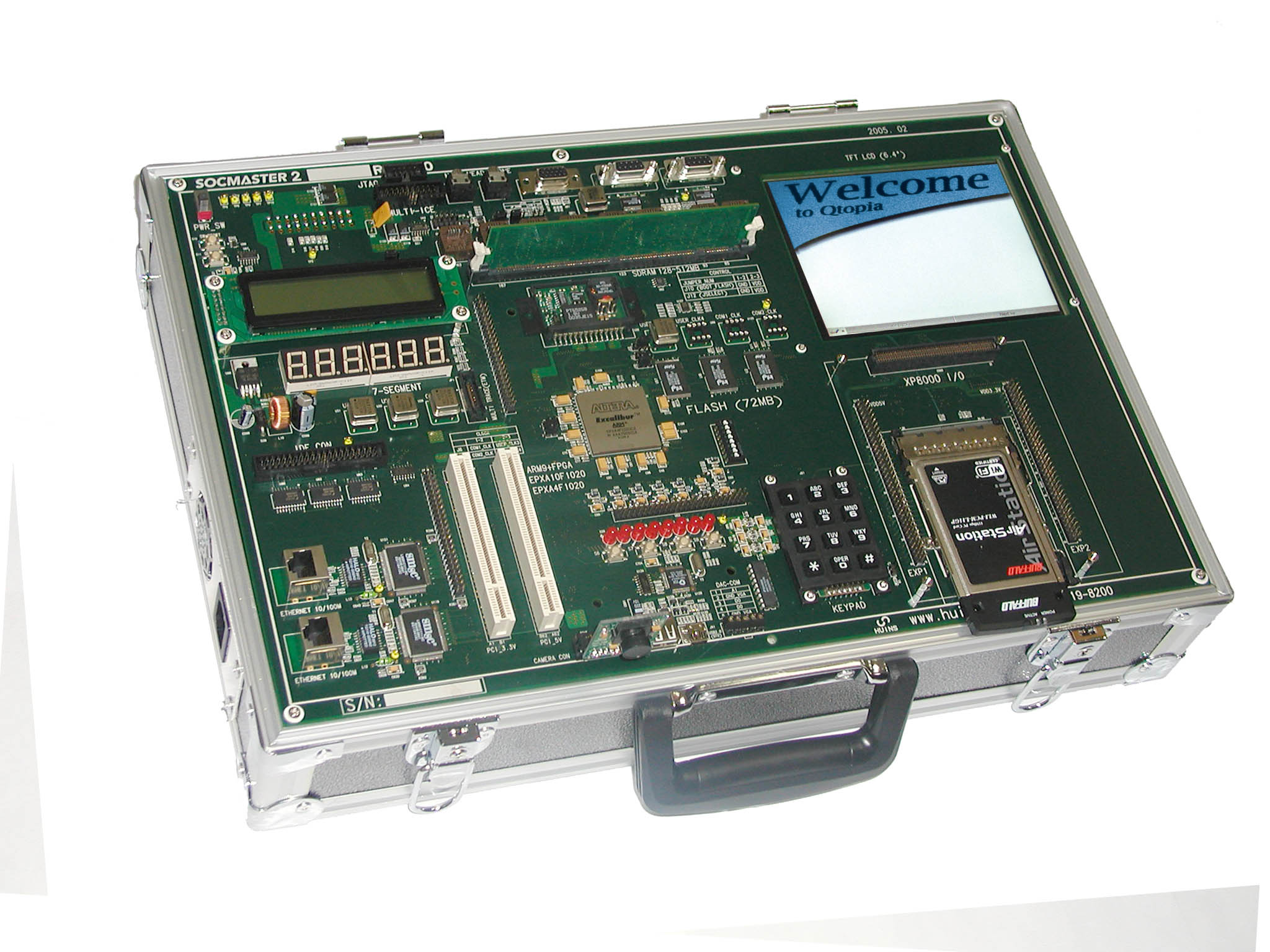

The ARM922T Development Platform includes 256 MB SDRAM, 72 MB Flash Memory, twp PCI slots, UART, 6.4" TFT LCD, two 10/100 Ethernet ports, USB 2.0 Host, CMOS Image Sensor, VGA port, AC 97, Expansion connectors (140 ~ 200 pins), 38-pin Mictor ETM9 port, 20-pin Multi ICE port, and 10-pin JTAG port.





























Specification
SOC Processor Excalibur (EXPA10F1020C2) 1020 pin
FPGA Xilinx 1 ~ 8 Million Virtex-II FPGA Modules
Operating System Linux 2.4.19 Kernel
Main Clock AHB1: 166 MHz ~ 200 MHz
Internal Bus AHB1, AHB2
On-chip Memory SRAM: 256K, DPRAM: 128K, Flash: 16M, SDRAM: 256MB (Max 512MB)
Peripherals 6.4" TFT-LCD (Color 16 bit 640x480)
Interconnection
  • 10/100 mbps Ethernet PHY
  • PCI
  • UART for RS-232 serial communications
  • USB 2.0 Host, CMOS Image Sensor
  • Text LCD, 7-Segment display, and 8 LEDs
  • External Data I/O Port supporting 200-pin external signals
  • External Bus Interface (EBI) supporting memory expansion
Debugging & Configuration JTAG Port connecting a ByteBlaster MV cable
Multi-ICE Debugging Support 38-pin Embedded Trance Macro cell (ETM) port
20-pin Multi ICE port
IP Cores AMBA to PCI (option), CMOS Image Sensor, 6.4" TFT LCD
Linux Source Kernel 2.4.19
Linux Device Drivers Source Text LCD, 7-Segment, TFT LCD, CMOS Image Sensor, Ethernet 10/100, USB 2.0, VGA, keypad, etc.
Additional Features
  • One user definable 9-pin dual in-line package (DIP) switch
  • Four user definable push-button switches
  • Test port for external logic analyzer
  • External Data I/O port
  • 3.3 V/5.0 V/12.0 V/-12.0 V available at the expansion headers
Power Supply Micro-ATX PC Power
Support CD
  • Linux Source Code 2.4.19
  • Datasheet and user's Guide
  • USB, Ethernet Device Driver Object Code
  • 7-Segment , text LCD Device Driver Source Code
Accessories
  • Linux O.S Ver. 2.4.19 CD
  • Two 9-pin female-to-female null modem cables (1.5 m)
  • ByteBlaster MV cable
Ordering Information:

Part Number:
- XP8000 (populated with Altera EPXA10-C2, 1 Million Gates): $7,900
- XP400   (populated with Altera EPXA4-C2, 400K Gates) :        $4,900

Xilinx FPGA Modules:
- FPGA400 (4 Million Gates, Xilinx Virtex 2): $3,900
- FPGA600 (6 Million Gates, Xilinx Virtex 2): $6,500
- FPGA800 (8 Million Gates, Xilinx Virtex 2): $9,900

Software:
Linux Source Code 2.4.19 : Free
